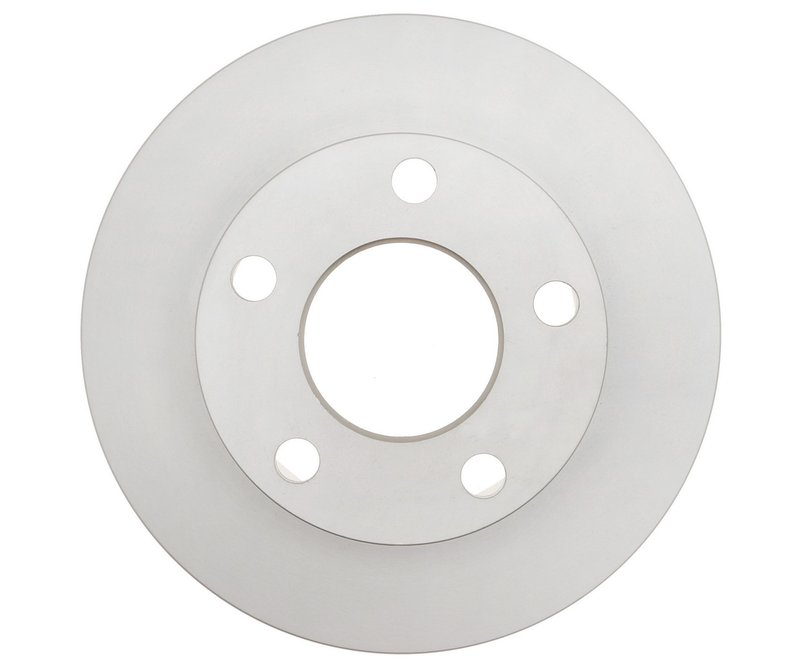

Raybestos 96423FZN Disc Brake Rotor - Rear

Raybestos Element3 Coated Rotor Overview

The Raybestos Element3; Coated Rotor 96423FZN is engineered for reliable braking performance on select Audi and Volkswagen models. Designed as a solid disc brake rotor, it offers precise fitment and durability for vehicles such as the Audi A6, S6, and Volkswagen Passat.

• Part Number: 96423FZN
• Brand Line: Element3; Coated Rotor
• Rotor Type: Solid Disc Brake Rotor
• Outside Diameter: 244.6 mm (9.63 inches)
• Nominal Thickness: 10.05 mm (0.395 inches)
• Discard Thickness: 8.0 mm (0.315 inches)
• Overall Height: 64.15 mm (2.525 inches)
• Mounting Bolt Hole Quantity: 5
• Center Hole Diameter: 68.05 mm (2.68 inches)
• Mounting Bolt Hole Circle Diameter: 112 mm (4.409 inches)
• Compatible Makes: Audi, Volkswagen
• Compatible Models: Audi 100, 100 Quattro, A6, A6 Quattro, S6; Volkswagen Passat, Pointer

Element3; Coated Rotor Product Line Details

The Element3; Coated Rotor line by Raybestos features a protective coating designed to resist corrosion and extend rotor life. This coating helps maintain rotor integrity under various driving conditions, making it suitable for vehicles like the Audi A6 and Volkswagen Passat that require consistent braking performance. The solid rotor design supports conventional braking systems and ensures compatibility with the specified bolt pattern and dimensions.

Technical Specifications and Fitment

This Raybestos disc brake rotor has a solid construction with an outside diameter of 244.6 mm and a nominal thickness of 10.05 mm, ensuring proper clearance and fit for the brake caliper assembly. The discard thickness of 8.0 mm indicates the minimum safe thickness before replacement is necessary. The rotor features five mounting bolt holes arranged on a 112 mm bolt circle diameter, matching the hub specifications of compatible Audi and Volkswagen models. The center hole diameter of 68.05 mm ensures proper centering on the vehicle hub.

Applications and Problem Solving

• Replacement for worn or warped rotors on Audi 100, A6, and S6 models
• Restores braking efficiency on Volkswagen Passat and Pointer vehicles
• Addresses rotor corrosion issues with a protective coating
• Eliminates brake pulsation caused by uneven rotor surfaces
• Ensures proper fitment for vehicles with 5-lug bolt patterns and 112 mm bolt circle diameter

Installation Notes and Tips

• Verify rotor thickness before installation; replace if below 8.0 mm discard thickness
• Ensure mounting surfaces are clean and free of debris for proper rotor seating
• Torque mounting bolts to manufacturer specifications to avoid rotor warping
• Check compatibility with vehicle brake caliper and hub assembly prior to installation
• Inspect brake pads for wear and replace if necessary during rotor installation

Quality Assurance and Warranty

Raybestos Element3; Coated Rotors are manufactured to meet or exceed OEM specifications for fit, form, and function. The protective coating enhances corrosion resistance, contributing to longer rotor life. While specific warranty details for part number 96423FZN should be confirmed with the supplier, Raybestos typically offers limited warranties covering defects in materials and workmanship.
