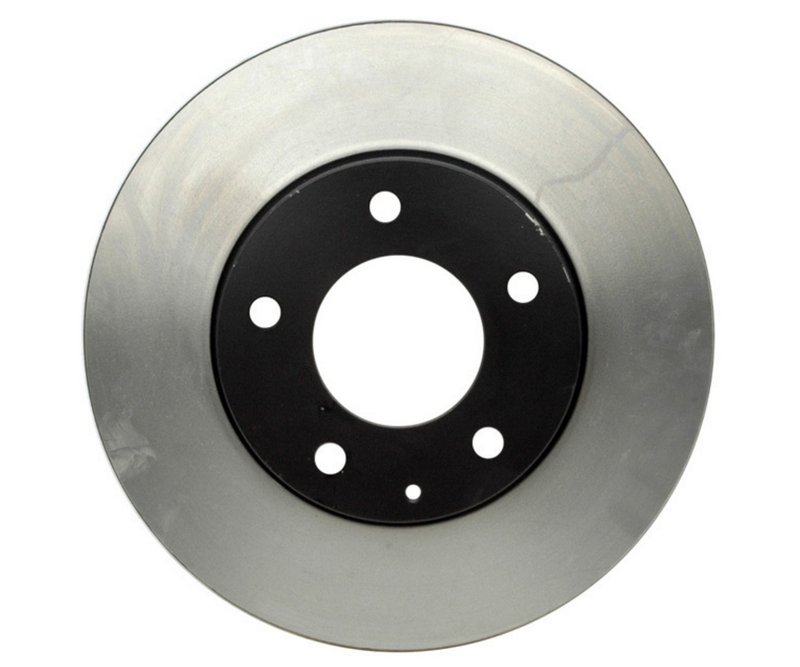

Raybestos 96477 Disc Brake Rotor - Front

Overview of Raybestos 96477 Disc Brake Rotor

The Raybestos Specialty - Street Performance disc brake rotor 96477 is engineered for reliable braking performance on Mazda Millenia and MPV models. Designed with precision, this rotor meets specific thickness and dimension requirements to ensure proper fit and function.

• Compatible with Mazda Millenia and MPV vehicles
• Vented disc brake rotor for improved heat dissipation
• Nominal thickness of 1.105 inches (28.050 mm)
• Discard thickness at 1.024 inches (26.000 mm)
• Overall height of 2.005 inches (50.950 mm)
• Outside diameter of 10.780 inches (273.800 mm)
• Five mounting bolt holes with 114.3 mm bolt circle diameter
• Center hole diameter of 2.834 inches (72.000 mm)
• Conventional rotor type with drum-in-hat compatibility

Specialty - Street Performance Product Line Details

The Raybestos Specialty - Street Performance line focuses on delivering rotors that balance street driving demands with enhanced performance characteristics. This product line is designed to provide consistent braking response and durability for street-driven vehicles like the Mazda Millenia and MPV, making it suitable for drivers seeking dependable stopping power without sacrificing everyday usability.

Technical Specifications and Features

This vented disc brake rotor features a nominal thickness of 1.105 inches (28.050 mm) and a discard thickness of 1.024 inches (26.000 mm), ensuring it meets safety standards for wear limits. The rotor’s overall height is 2.005 inches (50.950 mm), with an outside diameter of 10.780 inches (273.800 mm), matching the exact fitment requirements for the specified Mazda models. The five mounting bolt holes with a 114.3 mm bolt circle diameter and a center hole diameter of 2.834 inches (72.000 mm) provide secure installation and compatibility with factory hardware. The vented design helps dissipate heat effectively, reducing the risk of brake fade during extended use.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Mazda Millenia and MPV
• Improves braking performance by restoring proper rotor thickness and surface
• Addresses brake noise and vibration caused by uneven rotor wear
• Helps prevent overheating and brake fade during street driving
• Ensures compatibility with conventional drum-in-hat brake systems

Installation Notes and Tips

• Verify rotor thickness before installation to ensure it is above discard thickness
• Clean mounting surfaces and hardware to prevent uneven rotor seating
• Torque mounting bolts to manufacturer specifications for secure fit
• Inspect brake pads and replace if worn to maintain optimal braking
• Perform a test drive to confirm proper brake function after installation

Quality Assurance and Warranty

Raybestos disc brake rotors, including part number 96477, are manufactured to meet or exceed OEM standards for fit, form, and function. The Specialty - Street Performance line undergoes rigorous quality control to ensure durability and consistent braking performance. Warranty coverage details should be confirmed with the product documentation or supplier.
