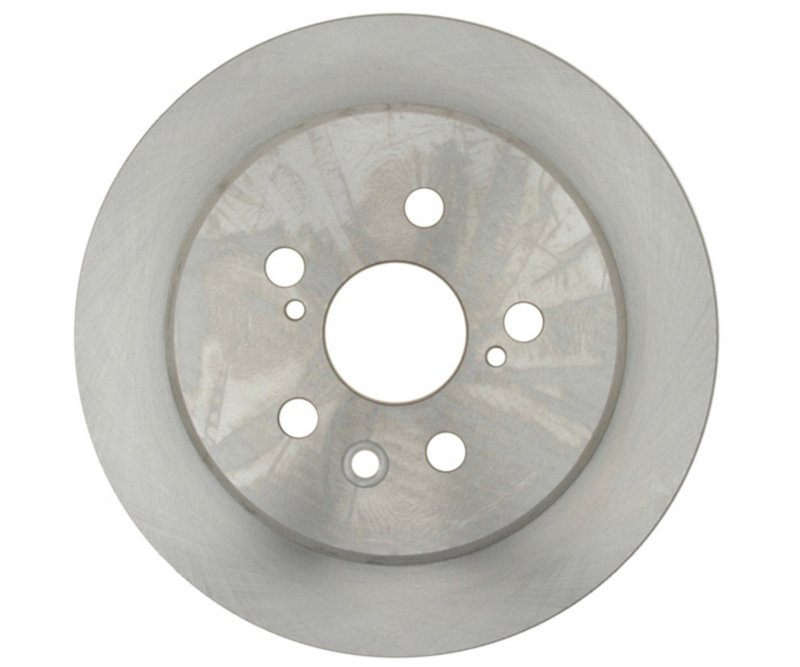

Raybestos 96498R Disc Brake Rotor - Rear

Overview of Raybestos R-Line Disc Brake Rotor 96498R

The Raybestos R-Line Disc Brake Rotor 96498R is engineered for Toyota Celica models requiring reliable braking performance. This solid rotor is designed with precise dimensions to ensure proper fit and function, maintaining the safety and handling characteristics of your vehicle.

• Compatible with Toyota Celica vehicles
• Solid disc brake rotor design
• Outside diameter: 10.580 inches (268.75 mm)
• Nominal thickness: 0.395 inches (10.05 mm)
• Discard thickness: 0.354 inches (9.00 mm)
• Overall height: 2.555 inches (64.90 mm)
• Mounting bolt hole quantity: 5 with 3.937 inches (100 mm) bolt circle diameter
• Center hole diameter: 2.166 inches (55 mm)
• Conventional rotor type with 5 stud/lug holes

Detailed Product Specifications

The Raybestos R-Line 96498R rotor features a solid construction optimized for consistent braking performance on Toyota Celica models. Its 10.580-inch outside diameter and 2.555-inch overall height ensure compatibility with the vehicle's braking system. The rotor's nominal thickness of 0.395 inches provides a durable braking surface, while the discard thickness of 0.354 inches indicates the minimum safe thickness before replacement is necessary. The rotor mounts using five bolt holes arranged on a 3.937-inch bolt circle diameter, matching the Celica's hub specifications. The center hole diameter of 2.166 inches allows for proper hub centering, contributing to smooth rotor installation and operation.

Raybestos R-Line Product Line Information

The R-Line by Raybestos is a product line focused on delivering reliable, OEM-quality brake components designed to meet or exceed factory specifications. This line emphasizes precise fitment and consistent performance, making it suitable for drivers who require dependable braking parts for their Toyota Celica. The 96498R rotor exemplifies the R-Line's commitment to quality and durability in conventional solid rotor designs.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Addressing rotor thickness below manufacturer discard limits
• Resolving uneven brake pad wear due to rotor surface issues
• Improving braking stability and reducing noise from damaged rotors
• Ensuring proper fitment for Toyota Celica brake systems

Installation Notes and Tips

When installing the Raybestos R-Line 96498R rotor on a Toyota Celica, ensure the hub surface is clean and free of rust or debris to promote proper rotor seating. Verify the rotor thickness before installation to confirm it meets or exceeds the nominal thickness specification. Use the correct torque specifications for the five mounting bolts to avoid rotor warping. It is recommended to replace brake pads simultaneously to maintain optimal braking performance.

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet stringent quality standards, ensuring consistent performance and durability. While specific warranty details for part number 96498R should be confirmed with the supplier, Raybestos typically offers limited warranties covering defects in materials and workmanship. This rotor is designed to provide reliable service life when installed and maintained according to manufacturer guidelines.
