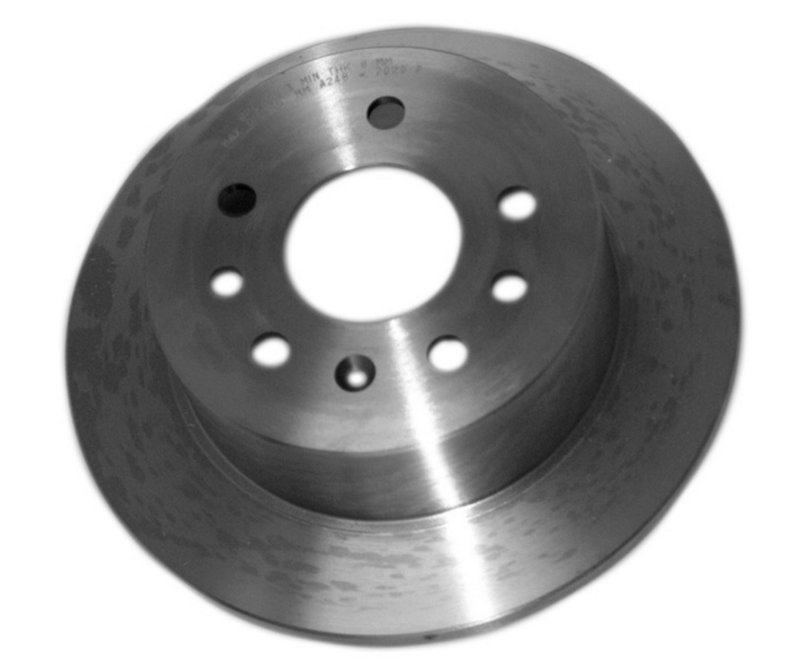

Raybestos 96513R Disc Brake Rotor - Rear
| Brand | Raybestos 96513R |
|---|---|
| Position | Rear |
| Center Hole Diameter | 2.582 |
| Center Hole Diameter | 65.600 |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 0.315 |
| Discard Thickness | 8.000 |
| Mounting Bolt Hole Circle Diameter | 4.331 |
| Mounting Bolt Hole Circle Diameter | 110.000 |
| Mounting Bolt Hole Diameter | 4.331 |
| Mounting Bolt Hole Diameter | 110.000 |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.395 |
| Nominal Thickness | 10.050 |
| Outside Diameter | 10.240 |
| Outside Diameter | 260.100 |
| Overall Height | 2.730 |
| Overall Height | 69.350 |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Product line | R-Line |
| Fits | Saab · 3 vehicles |
Vented design. Promotes efficient airflow for more consistent braking performance.
Drum-in-hat rotor. Combines rotor and parking brake drum functions in one design.
R-Line series. Raybestos replacement line for dependable everyday service.
Cross-references Anchor 2688, Centric Parts 121.38010 and Dorman - HELP 96513 for the same application. See all 39.
Raybestos R-Line Rear Brake Rotor for Saab 900
The Raybestos R-Line 96513R is a vented disc brake rotor for rear brake service on 1994-1996 Saab 900 models. It is built to match the listed OE-style dimensions for a direct replacement on the rear axle.
Key Features
- Part number: 96513R
- Brand: Raybestos R-Line
- Rear position rotor for 1994-1996 Saab 900
- Vented rotor design
- Drum-in-hat rotor type
- Outside diameter: 10.240 in. / 260.100 mm
- Nominal thickness: 0.395 in. / 10.050 mm
- Discard thickness: 0.315 in. / 8.000 mm
- Overall height: 2.730 in. / 69.350 mm
- 5-lug mounting pattern with 5 bolt holes
- Center hole diameter: 2.582 in. / 65.600 mm
- Bolt circle diameter: 110.000 mm / 4.331 in.
Product Details
Raybestos R-Line brake components are positioned as practical replacement parts for everyday brake service. This 96513R rear brake rotor follows the specified dimensions for the Saab 900 rear application, including vented construction, drum-in-hat design, and the listed hub and bolt pattern measurements. For shoppers searching for a rear brake rotor for 1994-1996 Saab 900, or a Raybestos 96513R replacement rotor, this part provides the fitment and dimensional data needed for a confident match.
This part cross-references Dorman - HELP 96513 for the same application.
Common Reasons for Replacement
- Brake pulsation or vibration from rotor wear
- Rotor thickness approaching discard specification
- Scoring, rust, or heat checking on the braking surface
- Uneven rear brake performance during service inspection
- Need for a direct rear rotor replacement on a Saab 900
Installation Notes and Tips
Verify rotor dimensions, hub center diameter, and bolt pattern before installation. Clean the hub mounting surface thoroughly to help the rotor seat evenly, and inspect pads, calipers, and parking brake components during rear brake service. Confirm the rotor is installed on the rear position for the listed Saab 900 applications.
Quality Assurance
Raybestos R-Line parts are built for replacement use in brake service and are identified here with the published fitment and dimensional specifications for the 1994-1996 Saab 900 rear application.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1996 | Saab | 900 | Rear | R-Line |
| 1995 | Saab | 900 | Rear | R-Line |
| 1994 | Saab | 900 | Rear | R-Line |
