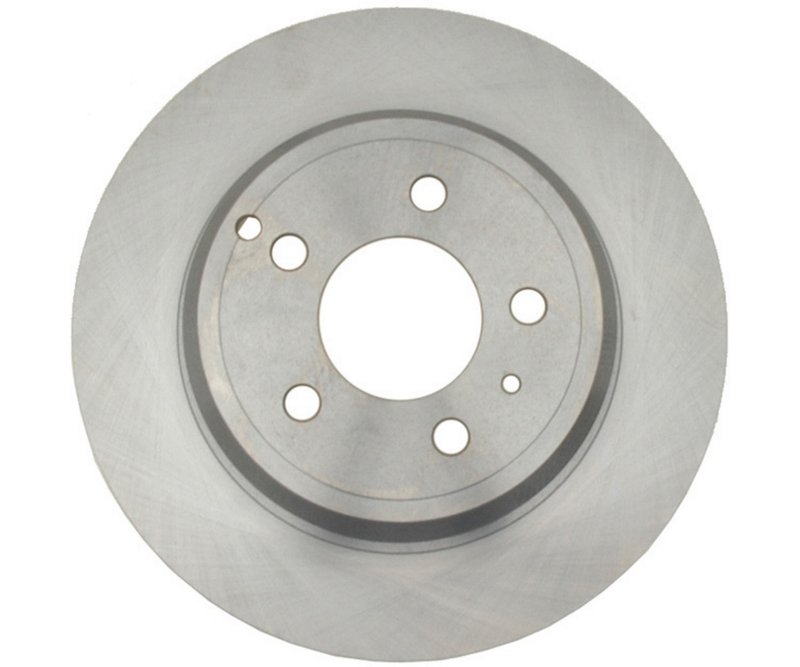

Raybestos 96515R Disc Brake Rotor - Rear

Overview of Raybestos R-Line Disc Brake Rotor 96515R

The Raybestos R-Line Disc Brake Rotor 96515R is engineered for reliable braking performance on select Volvo models. Designed as a vented, conventional rotor, it offers consistent heat dissipation and durability for vehicles like the Volvo 850, C70, S70, and V70.

• Vented disc brake rotor for improved cooling
• Overall height: 2.850 inches (72.400 mm)
• Outside diameter: 11.620 inches (295.150 mm)
• Mounting bolt hole quantity: 5 with 0.578 inch (14.700 mm) diameter holes
• Center hole diameter: 2.680 inches (68.050 mm)
• Nominal thickness: 0.380 inches (9.650 mm)
• Discard thickness: 0.331 inches (8.400 mm)
• Compatible with Volvo 850, C70, S70, and V70 models

Raybestos R-Line Product Line Details

The R-Line by Raybestos focuses on delivering dependable brake components that meet or exceed OEM specifications. This product line emphasizes quality materials and precise manufacturing processes to ensure consistent rotor thickness and structural integrity. The 96515R rotor exemplifies these standards with its vented design and exact fitment for Volvo vehicles, providing a balance of performance and longevity.

Technical Specifications and Features

This disc brake rotor features a vented design that enhances heat dissipation during braking, reducing the risk of brake fade. The nominal thickness of 0.380 inches (9.650 mm) ensures sufficient material for wear, while the discard thickness of 0.331 inches (8.400 mm) indicates the minimum safe thickness before replacement is necessary. The rotor’s overall height of 2.850 inches (72.400 mm) and outside diameter of 11.620 inches (295.150 mm) are engineered to match the braking system requirements of compatible Volvo models. The 5 mounting bolt holes with a diameter of 0.578 inches (14.700 mm) and a bolt circle diameter of 4.250 inches (107.950 mm) provide secure attachment to the hub assembly.

Compatible Vehicles and Applications

• Volvo 850
• Volvo C70
• Volvo S70
• Volvo V70

This rotor is designed specifically for these Volvo models, ensuring proper fit and function within their braking systems. It is suitable for drivers seeking to maintain or restore braking performance with a direct replacement part.

Common Issues Addressed by This Rotor

• Brake rotor warping due to heat buildup
• Reduced braking efficiency from worn or thin rotors
• Brake noise caused by uneven rotor surfaces
• Vibration or pulsation during braking
• Corrosion or surface damage affecting rotor integrity

Installation Notes and Tips

When installing the Raybestos R-Line 96515R rotor, ensure the mounting surface is clean and free of debris to prevent misalignment. Verify the rotor thickness before installation to confirm it meets or exceeds the discard thickness. Use proper torque specifications on the mounting bolts to avoid rotor distortion. It is recommended to replace brake pads simultaneously to optimize braking performance and rotor lifespan.

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet stringent quality standards, ensuring consistent dimensions and material properties. While specific warranty details for part number 96515R should be confirmed with the supplier, Raybestos typically offers coverage against manufacturing defects. This rotor is designed to provide reliable service when installed and maintained according to manufacturer guidelines.
