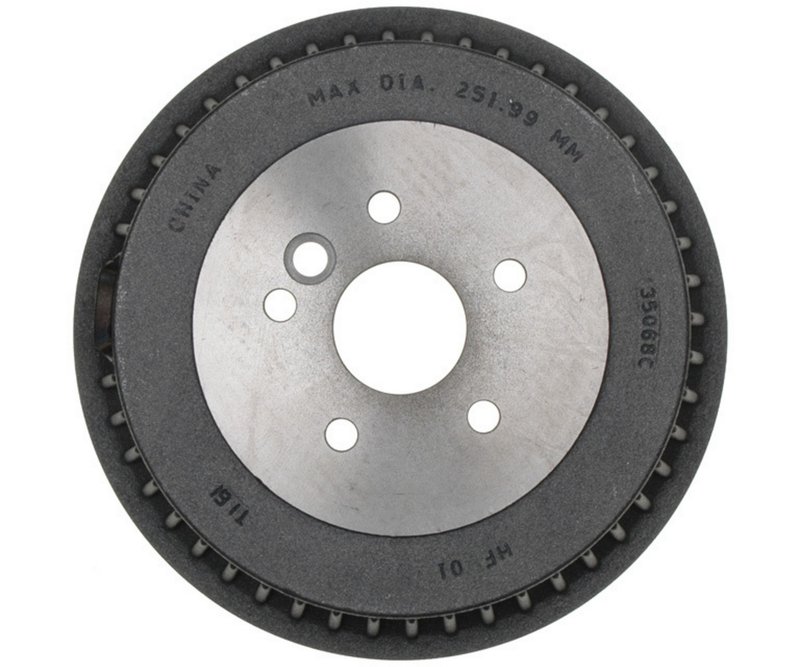

Raybestos 9655R Brake Drum - Rear
Overview of Raybestos R-Line 9655R Brake Drum for Toyota Sienna
The Raybestos R-Line 9655R brake drum is engineered specifically for Toyota Sienna models, providing reliable braking performance. Designed with precise dimensions and fitment, this brake drum ensures compatibility and durability for your vehicle's braking system.
- Outside Diameter: 13.200 inches
- Depth: 2.350 inches
- Nominal Drum Diameter: 9.900 inches
- Stud/Lug Hole Quantity: 5
- Stud/Lug Hole Diameter: 0.566 inches
- Compatible with Toyota Sienna models
Detailed Specifications and Features
The Raybestos R-Line 9655R brake drum features an outside diameter of 13.200 inches and a depth of 2.350 inches, matching the original equipment specifications for Toyota Sienna vehicles. The nominal drum diameter measures 9.900 inches, ensuring proper contact with brake shoes for effective stopping power. This brake drum includes five stud/lug holes with a diameter of 0.566 inches, designed to fit securely on the vehicle's wheel hub. The absence of outer cooling fins indicates a solid drum design optimized for consistent braking performance under normal driving conditions.
R-Line Product Line Information
The R-Line by Raybestos is a product line focused on delivering dependable brake components that meet or exceed OEM standards. The 9655R brake drum is part of this line, offering a balance of quality and fitment precision tailored for specific vehicle applications such as the Toyota Sienna. This ensures that the brake drum integrates seamlessly with the vehicle's braking system for reliable operation.
Common Applications and Problem Solving
- Replacement for worn or scored brake drums on Toyota Sienna
- Addresses brake noise caused by uneven drum surfaces
- Resolves vibration or pulsation during braking
- Restores proper brake shoe contact and stopping power
- Prevents brake fade due to drum wear or damage
Installation Notes and Tips
- Ensure the brake drum matches the vehicle’s specifications before installation
- Inspect wheel studs and lug nuts for wear or damage during replacement
- Clean the hub surface to ensure proper seating of the brake drum
- Check brake shoes for wear and replace if necessary
- Torque lug nuts to manufacturer specifications after installation
Quality Assurance and Warranty
Raybestos R-Line brake drums are manufactured to meet strict quality standards, ensuring consistent performance and durability. The 9655R part number undergoes rigorous testing to comply with OEM fitment and function requirements. While specific warranty details may vary, Raybestos typically offers coverage against defects in materials and workmanship to provide confidence in the product’s reliability.
| Brand | Raybestos |
|---|---|
| Part Number | 9655R |
| Position | R-Line, Rear |
| Depth | 2.350 |
| Depth | 59.700 |
| Nominal Drum Diameter | 0.391 |
| Nominal Drum Diameter | 9.900 |
| Outer Cooling Fins | No |
| Outside Diameter | 0.519 |
| Outside Diameter | 13.200 |
| Stud/Lug Hole Diameter | 0.566 |
| Stud/Lug Hole Diameter | 14.400 |
| Stud/Lug Hole Quantity | 5 |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2003 | Toyota | Sienna | Rear | with Finned Drum; R-Line |
| 2002 | Toyota | Sienna | Rear | with Finned Drum; R-Line |
| 2001 | Toyota | Sienna | Rear | with Finned Drum; R-Line |
| 2000 | Toyota | Sienna | Rear | with Finned Drum; R-Line |
| 1999 | Toyota | Sienna | Rear | with Finned Drum; R-Line |
| 1998 | Toyota | Sienna | Rear | with Finned Drum; R-Line |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
