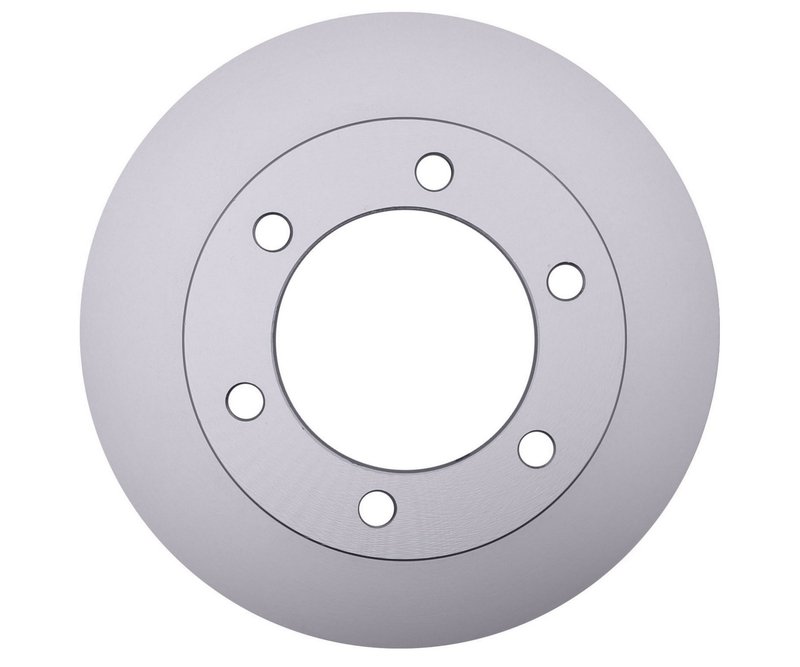

Raybestos 96575FZN Disc Brake Rotor - Front

Reliable Disc Brake Rotor for Toyota 4Runner and Tacoma

The Raybestos Element3; Coated Rotor 96575FZN is engineered to provide consistent braking performance for Toyota 4Runner and Tacoma models. Designed as a vented, conventional disc brake rotor, it offers durability and heat dissipation suited for daily driving and moderate towing needs.

• Compatible with Toyota 4Runner and Tacoma vehicles
• Vented disc brake rotor design for improved heat management
• Overall height: 2.770 inches (70.350 mm)
• Outside diameter: 11.680 inches (296.650 mm)
• Nominal thickness: 0.870 inches (22.100 mm)
• Discard thickness: 0.787 inches (20.000 mm)
• Mounting bolt hole quantity: 6 with 0.557 inch (14.150 mm) diameter
• Center hole diameter: 4.253 inches (108.050 mm)
• Mounting bolt hole circle diameter: 5.500 inches (139.700 mm)

Product Line Details: Element3; Coated Rotor

The Element3; Coated Rotor line by Raybestos features rotors with a protective coating designed to resist corrosion and extend rotor life. This coating helps maintain rotor integrity and appearance over time, especially in environments prone to moisture and road salt. The 96575FZN rotor benefits from this coating, ensuring reliable braking performance and reduced maintenance for Toyota 4Runner and Tacoma owners.

Technical Specifications and Features

This disc brake rotor is vented to enhance heat dissipation during braking, reducing the risk of brake fade under normal operating conditions. The nominal thickness of 0.870 inches (22.100 mm) ensures structural strength, while the discard thickness of 0.787 inches (20.000 mm) indicates the minimum safe thickness before replacement is necessary. The rotor’s overall height of 2.770 inches (70.350 mm) and outside diameter of 11.680 inches (296.650 mm) are designed to match factory specifications for proper fit and function.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Toyota 4Runner and Tacoma
• Addresses brake noise and vibration issues caused by uneven rotor surfaces
• Improves braking consistency and pedal feel
• Helps prevent brake fade during moderate towing or heavy use
• Resists corrosion-related rotor damage thanks to protective coating

Installation Notes and Tips

Ensure the rotor is installed on compatible Toyota 4Runner or Tacoma models with a 6-bolt mounting pattern. Verify the mounting bolt hole circle diameter of 5.500 inches (139.700 mm) and center hole diameter of 4.253 inches (108.050 mm) match your vehicle’s hub specifications. It is recommended to replace brake pads simultaneously and to check for proper rotor runout during installation to avoid premature wear.

Quality Assurance and Warranty

Raybestos manufactures the Element3; Coated Rotor 96575FZN to meet or exceed OEM standards for fit, form, and function. The protective coating enhances corrosion resistance, contributing to longer rotor life. While specific warranty details are not provided here, Raybestos products typically come with a limited warranty against defects in materials and workmanship.
