Raybestos 96589R Disc Brake Rotor - Front
OE Quality 60-Day Returns
Raybestos
R-Line

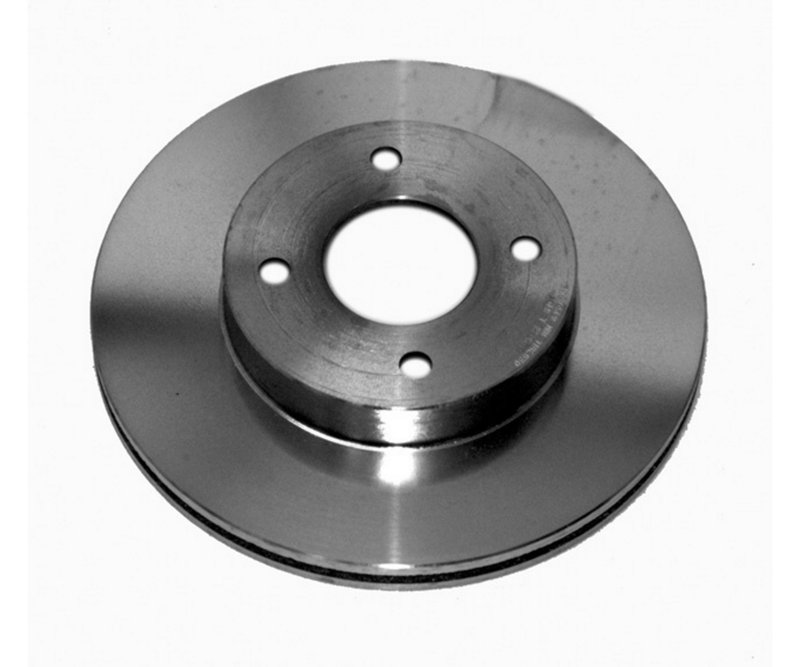

Raybestos 96589R Disc Brake Rotor - Front

Brand Raybestos 96589R
Position Front
Center Hole Diameter 2.402
Center Hole Diameter 61.000
Conventional Or Drum-In-Hat Type Rotor Conventional
Discard Thickness 0.630
Discard Thickness 16.000
Mounting Bolt Hole Circle Diameter 3.937
Mounting Bolt Hole Circle Diameter 100.000
Mounting Bolt Hole Diameter 0.500
Mounting Bolt Hole Diameter 12.700
Mounting Bolt Hole Quantity 4
Nominal Thickness 0.710
Nominal Thickness 18.050
Outside Diameter 9.720
Outside Diameter 246.900
Overall Height 1.780
Overall Height 45.200
Solid Or Vented Type Rotor Solid
Stud/Lug Hole Quantity 4
Product line R-Line
Fits Nissan · 9 vehicles

Conventional rotor. A straightforward disc brake rotor for standard replacement needs.

Solid design. Built without venting for a simple, durable braking surface.

R-Line. Raybestos line focused on dependable everyday brake service.

Cross-references Brembo 09.6942.10, Centric Parts 120.42061 and Centric Parts 121.42061 for the same application. See all 64.

$39.82Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $39.82
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Raybestos R-Line Front Brake Rotor for Sentra and 200SX

The Raybestos R-Line 96589R is a solid front disc brake rotor built for specific Nissan applications. With OE-style dimensions and a conventional rotor design, it supports consistent brake service on 1995-1998 Nissan 200SX and 1998-1999 Nissan Sentra front axle applications.

Key Features

  • Solid, conventional disc brake rotor design
  • Outside diameter: 246.900 mm / 9.720 in.
  • Nominal thickness: 18.050 mm / 0.710 in.
  • Discard thickness: 16.000 mm / 0.630 in.
  • Overall height: 45.200 mm / 1.780 in.
  • Center hole diameter: 61.000 mm / 2.402 in.
  • 4-bolt mounting pattern with 100.000 mm / 3.937 in. bolt circle
  • 4 stud/lug holes and 12.700 mm / 0.500 in. mounting bolt holes

Product Details

Raybestos R-Line brake components are positioned as practical replacement parts for everyday brake service. Part number 96589R follows the required rotor dimensions for the front axle on 1998-1999 Nissan Sentra and 1995-1998 Nissan 200SX, helping maintain proper fit, rotor alignment, and brake pad contact. This part cross-references Monroe Shocks & Struts (e.g., 37102) for the same application.

Common Brake Issues This Rotor Addresses

  • Front brake pulsation caused by rotor wear or thickness variation
  • Brake noise related to worn or uneven rotor surfaces
  • Reduced braking consistency from a rotor that has reached discard thickness
  • Service replacement needs after rotor scoring or heat-related wear
  • Fitment problems when replacing a front rotor on the listed Nissan models

Installation Notes and Tips

Verify rotor dimensions, bolt pattern, and center hole diameter before installation. Clean the hub mounting surface thoroughly to help prevent runout-related brake pulsation. Always inspect pads, calipers, and hardware condition during rotor replacement, and confirm the rotor is installed on the front position only for the listed applications. Fits 1998-1999 Nissan Sentra, front. Fits 1995-1998 Nissan 200SX, front.

Quality Assurance

Raybestos supplies brake components across multiple product lines, and the R-Line is focused on dependable service replacement coverage with application-specific fitment. Part number 96589R is built to match the listed OE-style dimensions for the confirmed Nissan front brake applications.

Related reading

This part fits 9 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelLitersCylindersPositionNotes
1999NissanSentraSE——FrontR-Line
1999NissanSentraGXE——FrontR-Line
1998Nissan200SX———FrontR-Line
1998NissanSentraGLE1.6LL4FrontR-Line
1998NissanSentraGXE1.6LL4FrontR-Line
1998NissanSentraSE2.0LL4FrontR-Line
1997Nissan200SX—2.0LL4FrontR-Line
1996Nissan200SX—2.0LL4FrontR-Line
1995Nissan200SX—2.0LL4FrontR-Line
Directly replaces or cross-references 64 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Brembo — 09.6942.10Centric Parts — 120.42061Centric Parts — 121.42061Centric Parts — 320.42061DuraGo — BR31169Gates — 25474Monroe Shocks & Struts — 37102Promax — 14-31169Raybestos Brakes — 96589RStopTech — 126.42061SLStopTech — 227.42061LStopTech — 227.42061R52-12562664-76-98081-125626083-266189-04061120.42061CRY125.42061126.42061SR127.42061CR127.42061L127.42061R128.42061L128.42061R789-040613116931169B31169DG9658996589RGS109138125626145080211070-C311691325037402060M801402060M802402068B700402068B71044236547698040011044AX31169BD125626BDC4622BR04142BR2015CW18705D17802DF4018DF4018SDL31169JBR754JBR754ENI473Q574R76980RB79X50961YH2365YH145080YH145080C
