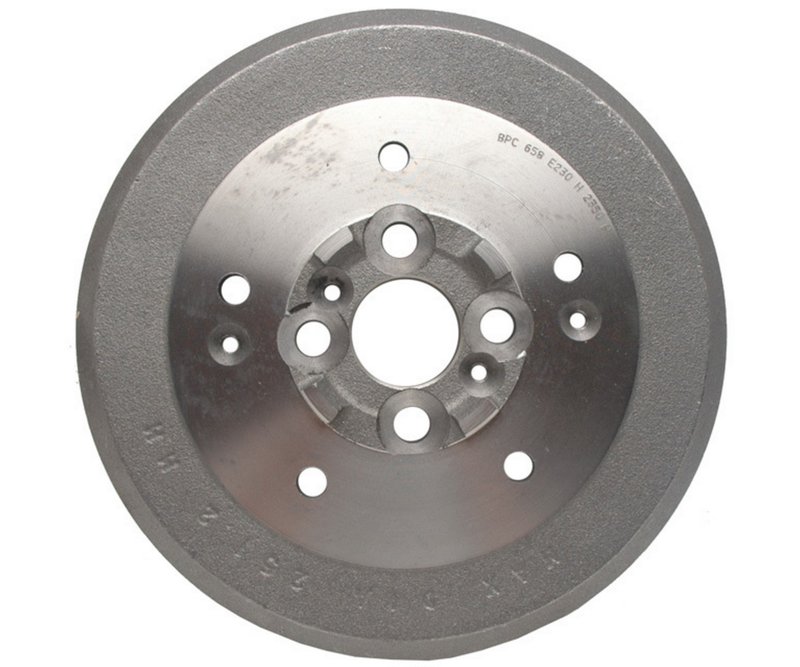

Raybestos 9658R Brake Drum - Rear

Overview of Raybestos R-Line Brake Drum 9658R for Kia Sportage

The Raybestos R-Line 9658R brake drum is engineered specifically for Kia Sportage models, providing reliable braking performance. Designed with precise dimensions, this brake drum ensures proper fitment and consistent operation for your vehicle's braking system.

• Outside Diameter: 11.050 inches (64.900 mm)
• Depth: 2.555 inches (64.900 mm)
• Nominal Drum Diameter: 9.900 inches (0.389 inches nominal)
• Stud/Lug Hole Quantity: 5
• Stud/Lug Hole Diameter: 0.495 inches (12.550 mm)
• No outer cooling fins for standard heat dissipation

Raybestos R-Line Product Line Details

The R-Line by Raybestos is a dedicated product line focused on delivering dependable brake components that meet OEM specifications. The 9658R brake drum is part of this line, designed to provide consistent performance and durability for vehicles like the Kia Sportage. This line emphasizes precise manufacturing tolerances and material quality to maintain braking efficiency and safety.

Technical Description and Specifications

The 9658R brake drum features an outside diameter of 11.050 inches, ensuring compatibility with the Kia Sportage's braking system. Its depth of 2.555 inches supports proper shoe contact and braking force distribution. The nominal drum diameter of 9.900 inches aligns with OEM standards, while the 5 lug holes with a diameter of 0.495 inches provide secure mounting. This brake drum does not include outer cooling fins, which is typical for standard brake drum designs intended for everyday driving conditions.

Applications and Problem Solving

• Replacement for worn or scored brake drums on Kia Sportage models
• Addresses brake noise caused by uneven drum surfaces
• Resolves vibration or pulsation during braking
• Improves braking consistency and pedal feel
• Restores proper brake shoe contact and wear patterns

Installation Notes and Tips

• Verify compatibility with your Kia Sportage model year before installation
• Inspect brake shoes and hardware for wear during drum replacement
• Ensure proper torque on lug nuts to manufacturer specifications
• Check drum surface for smoothness and clean before installation
• Consider professional installation if unfamiliar with brake system components

Quality Assurance and Warranty

Raybestos R-Line brake drums are manufactured to meet or exceed OEM standards, ensuring reliable performance and safety. The 9658R part number undergoes rigorous quality control to maintain dimensional accuracy and material integrity. Warranty coverage details should be confirmed with the point of purchase or Raybestos directly.
