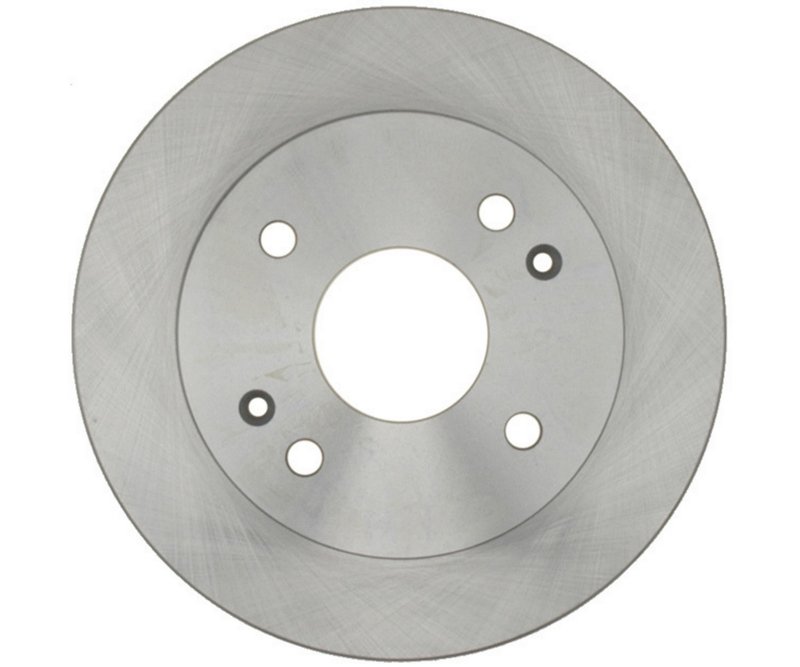

Raybestos 96590R Disc Brake Rotor - Rear

Raybestos R-Line Rear Brake Rotor for Acura TL

The Raybestos R-Line 96590R is a vented rear disc brake rotor built for 1995-1998 Acura TL applications. With a 10.220-inch outside diameter, 9.000 mm nominal thickness, and 7.500 mm discard thickness, it matches the dimensional requirements needed for a direct rear brake service replacement.

Key Features

• Raybestos R-Line part number 96590R
• Rear disc brake rotor for 1995-1998 Acura TL
• Vented conventional rotor design
• 4-bolt mounting pattern with 4 lug holes
• Outside diameter: 259.600 mm (10.220 in.)
• Nominal thickness: 9.000 mm (0.355 in.)
• Discard thickness: 7.500 mm (0.295 in.)
• Center hole diameter: 64.150 mm (2.525 in.)
• Bolt circle diameter: 114.300 mm (4.500 in.)

Product Details

Raybestos R-Line focuses on dependable replacement brake components for everyday repair work, and the 96590R follows that approach with a conventional vented rotor layout for the rear axle. This rotor is specified for 1995-1998 Acura TL, rear, and its dimensions support proper rotor fitment and brake pad contact during routine brake service. The part number 96590R is also referenced in aftermarket catalogs for the same application, including Centric Parts 121.40035.

Common Brake Issues This Rotor Can Address

• Rear brake pulsation caused by rotor thickness variation
• Brake noise related to worn or heat-affected rotor surfaces
• Reduced braking consistency from a rotor below service thickness
• Uneven pad contact on a worn rear brake rotor
• Service replacement needs on 1995-1998 Acura TL rear brake systems

Installation Notes and Tips

Verify rotor dimensions, bolt pattern, and hub fitment before installation on your Acura TL. Inspect rear pads, caliper hardware, and hub surfaces at the same time so the new rotor seats evenly and the brake system can be serviced as a complete rear brake repair. Confirm the rotor is within the nominal thickness range before use and replace it if it has reached discard thickness.

Quality Assurance

Raybestos is a recognized brake brand with the R-Line serving as its replacement-focused product line for common service applications. The 96590R is built to match the listed rear fitment for 1995-1998 Acura TL and to meet the dimensional requirements shown in the product specifications.
