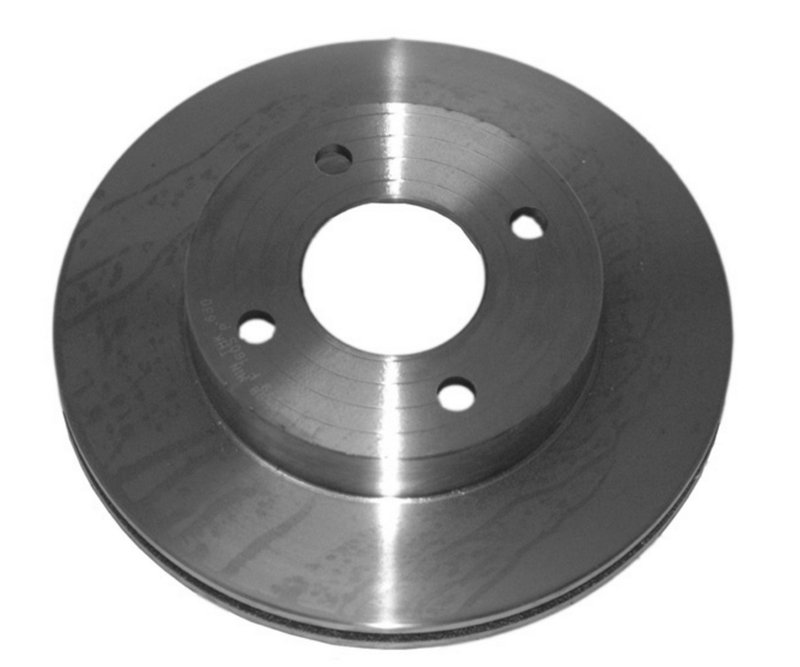

Raybestos 96598R Disc Brake Rotor - Front
OE Quality 60-Day Returns
Raybestos
R-Line

Raybestos 96598R Disc Brake Rotor - Front

Brand Raybestos 96598R
Position Front
Center Hole Diameter 2.402
Center Hole Diameter 61.000
Conventional Or Drum-In-Hat Type Rotor Conventional
Discard Thickness 0.630
Discard Thickness 16.000
Mounting Bolt Hole Circle Diameter 3.937
Mounting Bolt Hole Circle Diameter 100.000
Mounting Bolt Hole Diameter 0.500
Mounting Bolt Hole Diameter 12.700
Mounting Bolt Hole Quantity 4
Nominal Thickness 0.710
Nominal Thickness 18.050
Outside Diameter 9.130
Outside Diameter 231.900
Overall Height 1.780
Overall Height 45.200
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Quantity 4
Product line R-Line
Fits Nissan · 10 vehicles

Vented design. Promotes efficient airflow for more consistent braking performance.

Conventional rotor. A straightforward disc brake rotor for standard replacement needs.

R-Line series. Raybestos replacement line focused on dependable everyday service.

Cross-references Beck/Arnley 083-2651, Brembo 09.6943.10 and Centric Parts 120.42060 for the same application. See all 69.

$42.01Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $42.01
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Raybestos R-Line Front Brake Rotor

The Raybestos R-Line 96598R is a vented disc brake rotor for front axle applications on select Nissan compact cars. It is built to match the listed OE-style dimensions for consistent brake pad contact, rotor fit, and service replacement on 1995-1999 Nissan Sentra and 1995-1998 Nissan 200SX front brake systems.

Key Features

  • Part number: 96598R
  • Raybestos R-Line replacement rotor
  • Front position application
  • Vented rotor design
  • Outside diameter: 231.9 mm (9.130 in.)
  • Nominal thickness: 18.050 mm (0.710 in.)
  • Discard thickness: 16.000 mm (0.630 in.)
  • Overall height: 45.200 mm (1.780 in.)
  • Center hole diameter: 61.000 mm (2.402 in.)
  • 4-bolt mounting pattern with 100.000 mm bolt circle diameter
  • 4 stud/lug hole quantity
  • Conventional rotor design

Product Details

Raybestos R-Line 96598R is a front disc brake rotor engineered around the listed dimensions for direct replacement service on Nissan Sentra and Nissan 200SX front brake applications. The vented construction supports heat dissipation during repeated stops, while the conventional rotor layout and 4-lug fitment align with the specified mounting dimensions. This rotor cross-references Dorman - HELP 96598 for the same application.

Common Brake Issues This Rotor Can Address

  • Brake pulsation caused by rotor wear or thickness variation
  • Reduced braking smoothness from a worn front rotor surface
  • Noise related to uneven rotor contact with the brake pads
  • Service replacement needs when the rotor reaches discard thickness
  • Fitment concerns on front brake repairs for Nissan Sentra and Nissan 200SX

Installation Notes and Tips

Verify rotor dimensions, bolt pattern, and center bore before installation. Clean the hub mounting surface thoroughly to help the rotor seat evenly, and inspect pads, calipers, and hardware condition during brake service. After installation, follow the vehicle manufacturer’s brake bedding procedure and confirm proper pedal feel before returning the vehicle to service. Fits 1995-1999 Nissan Sentra, front. Fits 1995-1997 Nissan 200SX, front. Fits 1998 Nissan 200SX, front.

Quality Assurance

Raybestos R-Line parts are positioned as direct replacement brake components for service work that follows OE-style fitment and dimensional requirements. Part number 96598R is specified for the listed Nissan front brake applications and dimensions.

Related reading

This part fits 10 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelLitersCylindersPositionNotes
1999NissanSentraXE——FrontR-Line
1998Nissan200SX—1.6LL4FrontReplaces 96598RGS; Raybestos R-Line
1998NissanSentraBase1.6LL4FrontR-Line
1998NissanSentraXE1.6LL4FrontR-Line
1997Nissan200SX—1.6LL4FrontR-Line
1997NissanSentra———FrontR-Line
1996Nissan200SX—1.6LL4FrontR-Line
1996NissanSentra———FrontR-Line
1995Nissan200SX—1.6LL4FrontR-Line
1995NissanSentra———FrontR-Line
Directly replaces or cross-references 69 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Beck/Arnley — 083-2651Brembo — 09.6943.10Centric Parts — 120.42060Centric Parts — 121.42060Dorman - HELP — 96598DuraGo — BR31123Four Seasons — 36201Gates — 31123Promax — 14-31123Raybestos Brakes — 96598RStopTech — 126.42060SLStopTech — 126.42060SRStopTech — 128.42060LStopTech — 128.42060RStopTech — 227.42060LStopTech — 227.42060R09.7506.8052-12547264-76-97081-12547289-04060125.42060126.42060CSL126.42060CSR127.42060L127.42060R320.42060789-040602547531123B31123DG40206F430040206F430240206F43047815796598RGS109802125472145079211074-C311231325026402060M601402060M60244223647697040011038AX31123BD125472BDC4621BR04141BR2014CW18118DF4019DF4966SDL31123JBR753JBR753ENI472P125472Q572R76970RB80SB96598TSR9958X50920YH2236YH145079YH145079C
