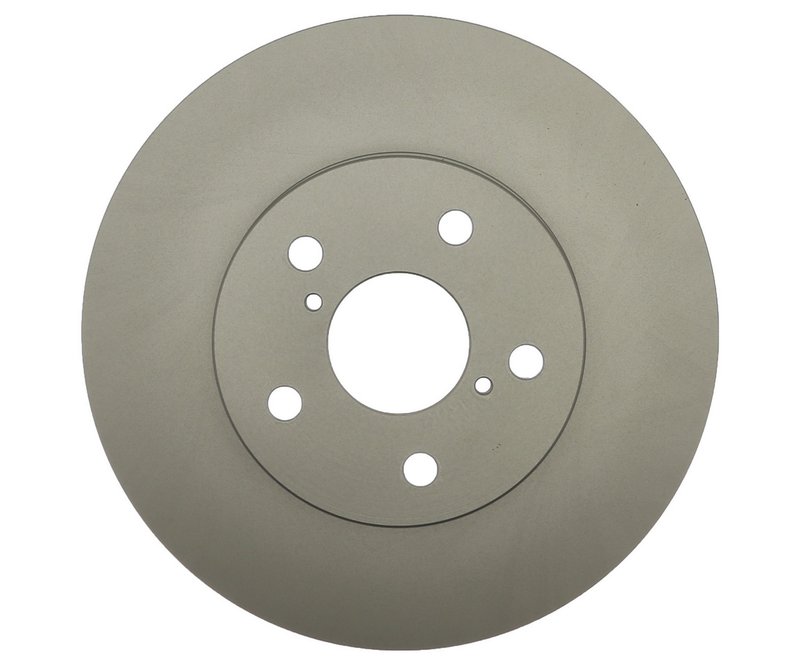

Raybestos 96613FZN Disc Brake Rotor - Front

Overview of Raybestos 96613FZN Disc Brake Rotor

The Raybestos Element3; Coated Rotor 96613FZN is engineered for Toyota RAV4 models requiring reliable braking performance. This vented disc brake rotor offers precise fitment and durability for consistent stopping power.

• Compatible with Toyota RAV4 vehicles
• Part number 96613FZN for exact replacement
• Vented rotor design for improved heat dissipation
• Coated surface to resist corrosion and extend rotor life
• 5 mounting bolt holes with 114.3 mm bolt circle diameter
• Nominal thickness of 18.05 mm and discard thickness of 16.00 mm
• Overall height of 46.35 mm and outside diameter of 301.75 mm
• Center hole diameter of 62.05 mm for precise hub fit

Detailed Product Description

This Raybestos disc brake rotor, part number 96613FZN, is designed specifically for Toyota RAV4 models. It features a vented rotor construction that enhances heat dissipation during braking, reducing the risk of brake fade under demanding conditions. The rotor has a nominal thickness of 18.05 mm and a discard thickness of 16.00 mm, ensuring it meets OEM specifications for safe operation. The overall height measures 46.35 mm with an outside diameter of 301.75 mm, providing a precise fit for the vehicle's braking system. The 5 mounting bolt holes with a 114.3 mm bolt circle diameter and a center hole diameter of 62.05 mm ensure proper alignment and secure installation.

The Element3; Coated Rotor product line from Raybestos is designed to provide enhanced corrosion resistance through a protective coating, which helps maintain rotor integrity and appearance over time. This coating also aids in reducing brake noise and vibration, contributing to a smoother braking experience. The conventional rotor design is compatible with standard Toyota RAV4 brake assemblies, making it a direct replacement part.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Addressing rotor corrosion and surface rust issues
• Improving heat management to prevent brake fade
• Restoring proper rotor thickness for safe braking performance
• Ensuring secure fitment with correct bolt hole pattern and dimensions

Installation Notes and Tips

• Verify rotor thickness before installation; replace if below 16.00 mm discard thickness
• Clean hub surface to ensure proper rotor seating and prevent runout
• Torque mounting bolts to manufacturer specifications for secure fit
• Inspect brake pads and hardware during rotor replacement for optimal performance
• Perform a bed-in procedure after installation to ensure proper rotor and pad mating

Quality Assurance and Warranty

Raybestos disc brake rotors, including part number 96613FZN, are manufactured to meet or exceed OEM standards for fit, form, and function. The Element3; Coated Rotor line incorporates advanced coating technology to enhance durability and corrosion resistance. While specific warranty details may vary, Raybestos typically offers coverage against defects in materials and workmanship. Always consult product documentation or manufacturer resources for exact warranty terms.
