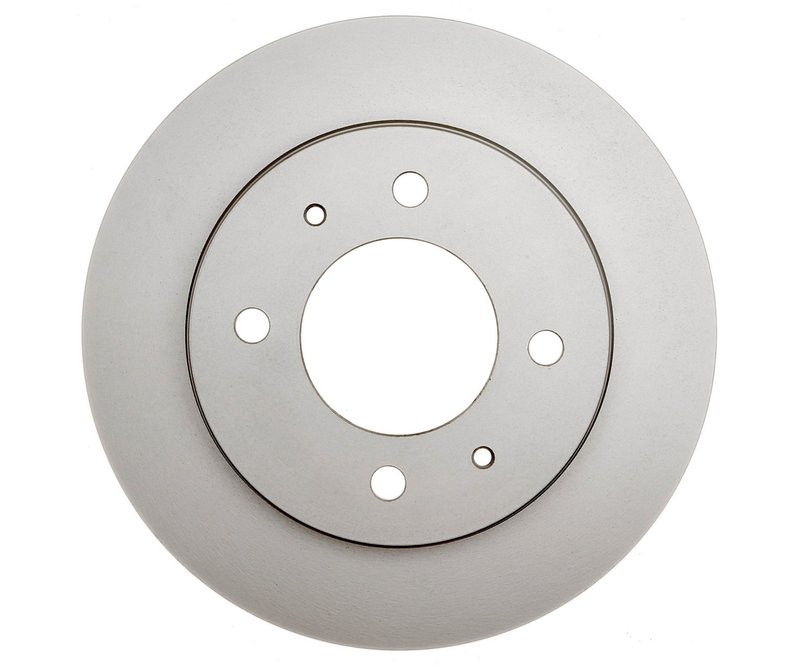

Raybestos 96617FZN Disc Brake Rotor - Rear

Reliable Disc Brake Rotor for Hyundai Elantra and Tiburon

The Raybestos Element3; Coated Rotor 96617FZN is engineered to provide consistent braking performance for Hyundai Elantra and Tiburon models. This solid disc brake rotor is designed to meet OEM specifications, ensuring a precise fit and dependable stopping power.

• Compatible with Hyundai Elantra and Tiburon vehicles
• Solid rotor design with 4 mounting bolt holes
• Nominal thickness of 0.395 inches (10.050 mm) and discard thickness of 0.315 inches (8.000 mm)
• Overall height of 1.590 inches (40.400 mm)
• Outside diameter of 10.160 inches (258.050 mm)
• Center hole diameter of 2.995 inches (76.050 mm)
• Mounting bolt hole circle diameter of 4.500 inches (114.300 mm)
• Conventional rotor type suitable for standard brake systems

Product Line: Raybestos Element3; Coated Rotor

The Element3; Coated Rotor line from Raybestos features rotors with a protective coating that helps resist rust and corrosion, extending the rotor's service life. This coating also aids in maintaining a clean surface for optimal brake pad contact. The 96617FZN rotor benefits from this technology, providing durability and consistent braking performance for Hyundai Elantra and Tiburon models.

Technical Details and Specifications

This Raybestos disc brake rotor is a solid type, designed with four mounting bolt holes and four stud/lug holes, ensuring secure installation. The rotor's nominal thickness is 0.395 inches (10.050 mm), with a discard thickness of 0.315 inches (8.000 mm), indicating when replacement is necessary to maintain safe braking. The overall height measures 1.590 inches (40.400 mm), and the outside diameter is 10.160 inches (258.050 mm), matching the exact dimensions required for compatible Hyundai vehicles. The center hole diameter of 2.995 inches (76.050 mm) and mounting bolt hole circle diameter of 4.500 inches (114.300 mm) ensure proper alignment and fitment.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Hyundai Elantra and Tiburon
• Addresses brake pulsation and vibration issues
• Restores proper braking performance and pedal feel
• Prevents rotor corrosion and surface degradation
• Suitable for routine brake system maintenance and repair

Installation Notes and Tips

Ensure the rotor surface is clean and free of debris before installation. Verify the rotor thickness is above the discard thickness specification of 0.315 inches (8.000 mm) to maintain safety standards. Use proper torque specifications for the 4 mounting bolts to avoid rotor warping. It is recommended to replace brake pads simultaneously to ensure even wear and optimal braking performance.

Quality Assurance and Warranty

Raybestos disc brake rotors are manufactured to meet or exceed OEM standards, providing reliable performance and durability. The Element3; Coated Rotor line includes a protective coating to resist rust and corrosion. Warranty coverage details should be confirmed with the product documentation or manufacturer.
