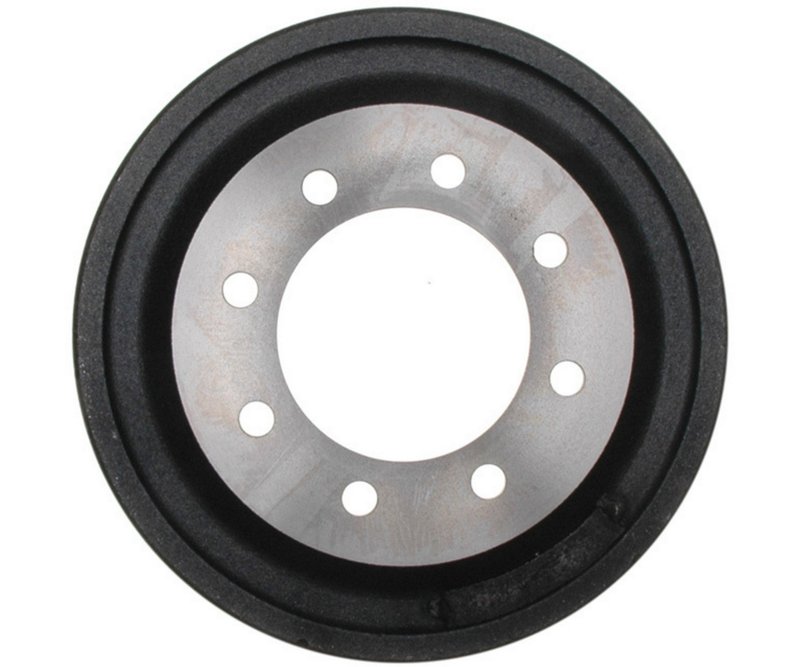

Raybestos 9669R Brake Drum - Rear

Brand Raybestos 9669R
Position Rear
Depth 4.110
Depth 104.400
Nominal Drum Diameter 0.481
Nominal Drum Diameter 12.200
Outer Cooling Fins No
Outside Diameter 0.558
Outside Diameter 14.200
Stud/Lug Hole Diameter 0.650
Stud/Lug Hole Diameter 16.500
Stud/Lug Hole Quantity 8
Product line R-Line
Fits Dodge · 14 vehicles

Brake drum replacement. Direct-fit design for straightforward installation.

R-Line value. Raybestos line focused on dependable braking performance.

8-lug pattern. Built with eight stud holes for secure wheel mounting.

Cross-references Anchor 9669, Centric Parts 122.67035 and Centric Parts 123.67035 for the same application. See all 27.

$116.56Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Brake Drums are typically replaced in pairs, axle by axle.
Order total $116.56
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Brake Drum options

Raybestos R-Line Brake Drum 9669R

The Raybestos R-Line 9669R brake drum is a rear drum brake replacement for select Dodge Ram van and truck applications. Built around the listed 14.200-inch outside diameter and 4.110-inch depth, it supports the specified 12.200-inch nominal drum diameter fitment and 8-lug wheel pattern requirements.

Raybestos R-Line focuses on direct-fit brake service parts for everyday repair work. For buyers searching for a rear brake drum for Dodge Ram 2500 Van, Ram 3500 Van, or Ram 2500 applications, part number 9669R provides a fitment-specific option for the vehicles listed below.

Key Features

  • Rear brake drum for select Dodge Ram van and truck applications
  • Outside diameter: 14.200 in. (0.558)
  • Depth: 4.110 in. (104.400)
  • Nominal drum diameter: 12.200 in. (0.481)
  • 8 stud/lug holes with 16.500 mm hole diameter
  • No outer cooling fins
  • Raybestos R-Line part number 9669R

Detailed Description

Raybestos 9669R is a rear brake drum engineered for the listed Dodge Ram fitments, including 2003 Dodge Ram 1500 Van, 1999-2003 Dodge Ram 2500 Van, 1999-2003 Dodge Ram 3500 Van, 2002 Dodge Ram 2500, and 1997-1998 Dodge B3500. The dimensional specifications are important for proper brake shoe contact, drum seating, and wheel mounting alignment on the applications shown. This part cross-references DuraGo BD80037 and National 203006 for the same application.

What It Helps Address

  • Rear brake pulsation caused by worn drum surfaces
  • Brake shoe contact issues from out-of-spec drum dimensions
  • Reduced braking performance from damaged or heat-worn drums
  • Noise or vibration from uneven rear drum wear
  • Service replacement needs on Dodge Ram 1500 Van, Ram 2500 Van, Ram 3500 Van, and Ram 2500 rear brake systems

Installation Notes and Tips

Verify the vehicle’s rear brake size and axle/brake configuration before installation. Confirm the drum matches the listed 12-1/8 in. x 3-1/2 in. or 12-1/4 in. x 3-1/2 in. brake application where noted, and inspect brake shoes, hardware, and wheel studs for wear before reassembly. Clean the hub mounting surface and check for proper drum seating after installation.

Quality Assurance

Raybestos R-Line is a brake parts line focused on service replacement coverage for common repair applications. Part number 9669R is listed with direct interchange references and vehicle-specific fitment data to support accurate brake service selection.

Related reading

This part fits 14 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2003DodgeRam 1500 VanRearwith 12 1/4in x 3-1/2in Brakes; R-Line
2003DodgeRam 2500 VanRearwith 12-1/8in x 3-1/2in Brakes; R-Line
2003DodgeRam 3500 VanRearR-Line
2002DodgeRam 2500Rearwith 12-1/8in x 3-1/2in Brakes; R-Line
2002DodgeRam 2500 VanRearwith 12-1/8in x 3-1/2in Brakes; R-Line
2002DodgeRam 3500 VanRearR-Line
2001DodgeRam 2500 VanRearwith 12-1/8in x 3-1/2in Brakes; R-Line
2001DodgeRam 3500 VanRearR-Line
2000DodgeRam 2500 VanRearwith 12-1/8in x 3-1/2in Brakes; R-Line
2000DodgeRam 3500 VanRearR-Line
1999DodgeRam 2500 VanRearwith 12-1/8in x 3-1/2in Brakes; R-Line
1999DodgeRam 3500 VanRearR-Line
1998DodgeB3500Rearwith 12-1/8in x 3-1/2in Brakes; with 5.08 IN Overall Height; with Semi-Floating Rear Axle; R-Line
1997DodgeB3500Rearwith 12-1/8in x 3-1/2in Brakes; with 5.08 IN Overall Height; with Semi-Floating Rear Axle; R-Line
Directly replaces or cross-references 27 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Anchor — 9669Centric Parts — 122.67035Centric Parts — 123.67035DuraGo — BD80037National — 203006Promax — 16-80037Raybestos Brakes — 9669R52-12575088-400359669DGS8003780037G140716212489-C345109446266233970852009519ACAD8735AD8735EBD125750E12772040R44140716SB9669X21984YH6266YH140716
