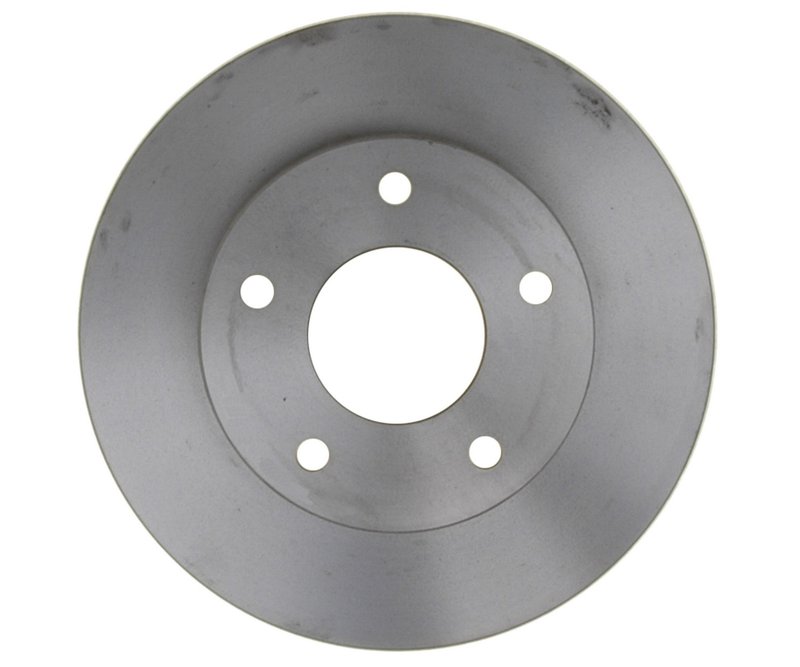

Raybestos 96704R Disc Brake Rotor - Front

Overview of Raybestos R-Line Disc Brake Rotor 96704R

The Raybestos R-Line Disc Brake Rotor 96704R is engineered for reliable braking performance on Nissan 240SX vehicles. This vented rotor is designed to meet the specific requirements of your Nissan 240SX, ensuring consistent stopping power and durability.

• Compatible with Nissan 240SX models
• Vented disc brake rotor for improved heat dissipation
• Overall height: 1.930 inches (49.000 mm)
• Outside diameter: 10.100 inches (256.550 mm)
• Mounting bolt hole quantity: 5 with 114.3 mm bolt circle diameter
• Center hole diameter: 2.678 inches (68.000 mm)
• Nominal thickness: 0.865 inches (21.950 mm)
• Discard thickness: 0.790 inches (20.050 mm)
• Conventional rotor type

Detailed Product Description

The Raybestos R-Line 96704R disc brake rotor is a vented, conventional rotor designed specifically for the Nissan 240SX. Its vented design helps dissipate heat more effectively during braking, reducing the risk of brake fade under demanding conditions. The rotor features a nominal thickness of 0.865 inches (21.950 mm) and a discard thickness of 0.790 inches (20.050 mm), providing clear service limits for maintenance. With an overall height of 1.930 inches (49.000 mm) and an outside diameter of 10.100 inches (256.550 mm), this rotor fits precisely to the vehicle’s hub, supported by a 5-bolt mounting pattern with a 114.3 mm bolt circle diameter. The center hole diameter of 2.678 inches (68.000 mm) ensures proper alignment and fitment.

About the Raybestos R-Line Product Line

The R-Line by Raybestos is a product line focused on delivering reliable, OEM-quality brake components designed to meet or exceed factory specifications. The R-Line disc brake rotors, including part number 96704R, are engineered for consistent performance and durability, making them suitable for vehicles like the Nissan 240SX that require precise fitment and dependable braking under various driving conditions.

Common Applications and Issues Addressed

• Replacement for worn or warped rotors on Nissan 240SX
• Improves braking performance by reducing heat buildup
• Eliminates brake noise caused by uneven rotor surfaces
• Restores proper rotor thickness for safe braking
• Addresses vibration or pulsation during braking

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness before installation
• Clean mounting surface to prevent rotor runout
• Torque mounting bolts to manufacturer specifications
• Inspect brake pads and replace if worn to ensure optimal rotor performance
• Perform a bed-in procedure after installation for best results

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet strict quality standards, ensuring consistent dimensions and material integrity. While specific warranty details may vary, Raybestos typically offers coverage against defects in materials and workmanship. Always refer to the product documentation or manufacturer for exact warranty terms.
