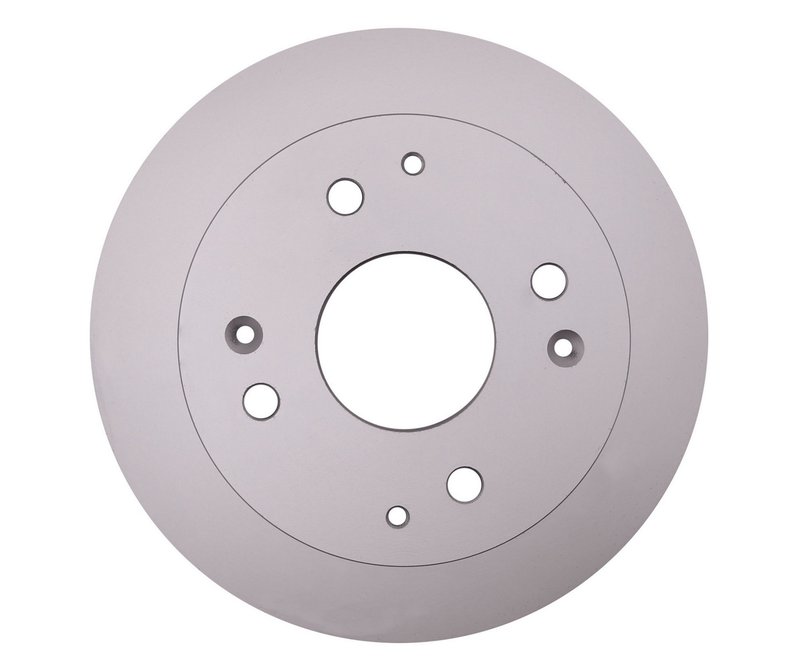

Raybestos 96708FZN Disc Brake Rotor - Rear

Reliable Disc Brake Rotor for Acura and Honda Vehicles

The Raybestos Element3; Coated Rotor 96708FZN is engineered to provide consistent braking performance for Acura and Honda models, including the Accord and CL. Designed as a vented, conventional disc brake rotor, it offers durability and efficient heat dissipation for everyday driving conditions.

• Compatible with Acura and Honda Accord and CL models
• Vented disc brake rotor design for improved cooling
• Overall height: 1.900 inches (48.250 mm)
• Outside diameter: 10.225 inches (259.700 mm)
• Mounting bolt hole quantity: 4 with 4.500 inch (114.300 mm) bolt circle diameter
• Center hole diameter: 2.526 inches (64.150 mm)
• Nominal thickness: 0.355 inches (9.000 mm); discard thickness: 0.315 inches (8.000 mm)
• Stud/lug hole quantity: 4

Product Line Details: Element3; Coated Rotor

The Element3; Coated Rotor line by Raybestos features rotors with a protective coating designed to resist rust and corrosion, extending the rotor's service life. This coating helps maintain a clean surface appearance and supports consistent braking performance over time. The 96708FZN rotor benefits from this coating, making it suitable for Acura and Honda vehicles that require reliable stopping power and durability.

Technical Specifications and Features

This disc brake rotor is a vented type, which means it has internal vanes that allow air to flow through the rotor, enhancing heat dissipation during braking. The nominal thickness of 0.355 inches (9.000 mm) ensures structural integrity, while the discard thickness of 0.315 inches (8.000 mm) indicates when the rotor should be replaced to maintain safe braking performance. The rotor’s overall height of 1.900 inches (48.250 mm) and outside diameter of 10.225 inches (259.700 mm) are designed to match the specific fitment requirements of Acura and Honda Accord and CL models. The 4 mounting bolt holes and 4 lug holes with a 4.500 inch (114.300 mm) bolt circle diameter provide secure installation.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Addressing rotor corrosion and surface rust that affects braking efficiency
• Improving heat dissipation to reduce brake fade during extended use
• Restoring proper rotor thickness to maintain safe braking distances
• Ensuring compatibility with Acura and Honda Accord and CL brake systems

Installation Notes and Tips

When installing the Raybestos 96708FZN rotor, ensure the mounting surface is clean and free of debris to prevent uneven rotor seating. Verify the rotor thickness before installation to confirm it meets the nominal thickness specifications. Use proper torque settings on the mounting bolts to avoid rotor warping. It is recommended to replace brake pads simultaneously to ensure optimal braking performance and rotor longevity.

Quality Assurance and Warranty

Raybestos manufactures the Element3; Coated Rotor line to meet or exceed OEM specifications for fit, form, and function. The 96708FZN rotor undergoes rigorous quality control to ensure durability and consistent braking performance. While specific warranty details are not provided here, Raybestos typically offers limited warranties covering defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
