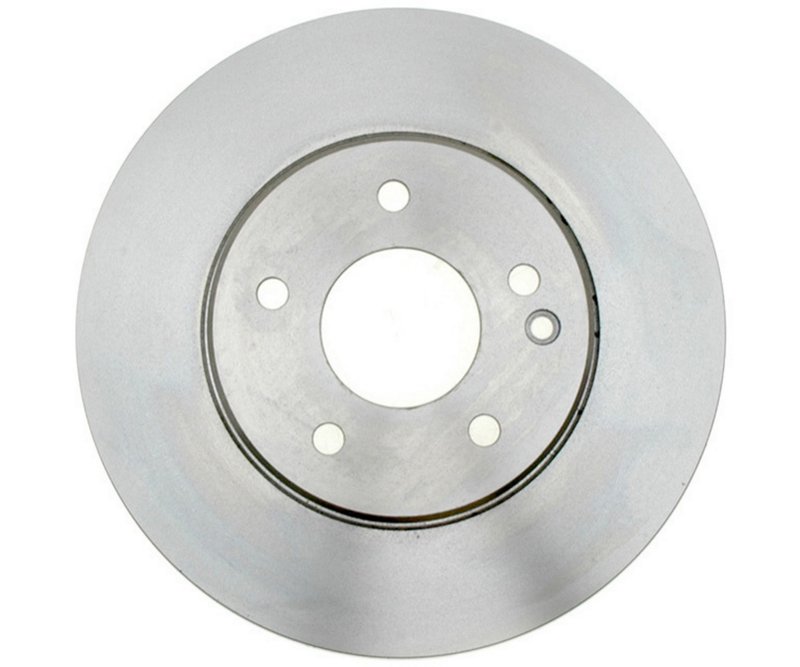

Raybestos 96714R Disc Brake Rotor - Front

Overview of Raybestos R-Line Disc Brake Rotor 96714R

The Raybestos R-Line Disc Brake Rotor 96714R is engineered for reliable braking performance on select Mercedes-Benz models. Designed specifically for the C220, C230, and C280, this vented rotor meets precise specifications to maintain optimal stopping power and durability.

• Compatible with Mercedes-Benz C220, C230, and C280 models
• Part number 96714R for exact fitment
• Vented disc brake rotor design for improved heat dissipation
• Overall diameter of 11.180 inches (283.95 mm)
• Nominal thickness of 0.860 inches (21.85 mm) with discard thickness at 0.764 inches (19.4 mm)
• Five mounting bolt holes with a 4.409 inch (112 mm) bolt circle diameter
• Center hole diameter of 2.638 inches (67 mm)
• Conventional rotor type suitable for drum-in-hat applications

Raybestos R-Line Product Line Details

The R-Line by Raybestos focuses on delivering rotors that meet or exceed OEM specifications for fit, form, and function. This line emphasizes consistent manufacturing tolerances and material quality, ensuring that the 96714R rotor provides dependable braking performance for Mercedes-Benz vehicles requiring vented rotors with conventional mounting.

Technical Specifications and Features

The 96714R rotor features a vented design that enhances heat dissipation during braking, reducing the risk of brake fade under demanding conditions. With an overall height of 1.710 inches (43.45 mm), this rotor maintains structural integrity and proper alignment with the brake caliper assembly. The nominal thickness of 0.860 inches (21.85 mm) ensures sufficient material for wear, while the discard thickness of 0.764 inches (19.4 mm) indicates the minimum safe thickness before replacement is necessary. The rotor includes five mounting bolt holes arranged on a 4.409 inch (112 mm) bolt circle diameter, compatible with the specified Mercedes-Benz models. The center hole diameter of 2.638 inches (67 mm) allows for precise hub centering during installation.

Applications and Problem Solving

• Replacement for worn or warped rotors on Mercedes-Benz C220, C230, and C280
• Addresses brake pulsation caused by uneven rotor surfaces
• Improves heat management to reduce brake fade during extended use
• Restores proper rotor thickness for consistent braking performance
• Compatible with vehicles requiring vented, conventional disc brake rotors

Installation Notes and Tips

• Verify compatibility with your Mercedes-Benz model and part number 96714R before installation
• Inspect mounting surfaces and hardware for wear or damage prior to rotor installation
• Ensure proper torque specifications on mounting bolts to avoid rotor warping
• Replace brake pads simultaneously to maintain optimal braking efficiency
• Check rotor thickness regularly and replace when reaching discard thickness

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet stringent quality standards, ensuring consistent performance and durability. While specific warranty details for part number 96714R should be confirmed with the supplier, Raybestos typically offers limited warranties covering defects in materials and workmanship. This rotor is designed to provide reliable braking for Mercedes-Benz C220, C230, and C280 models when installed and maintained according to manufacturer guidelines.
