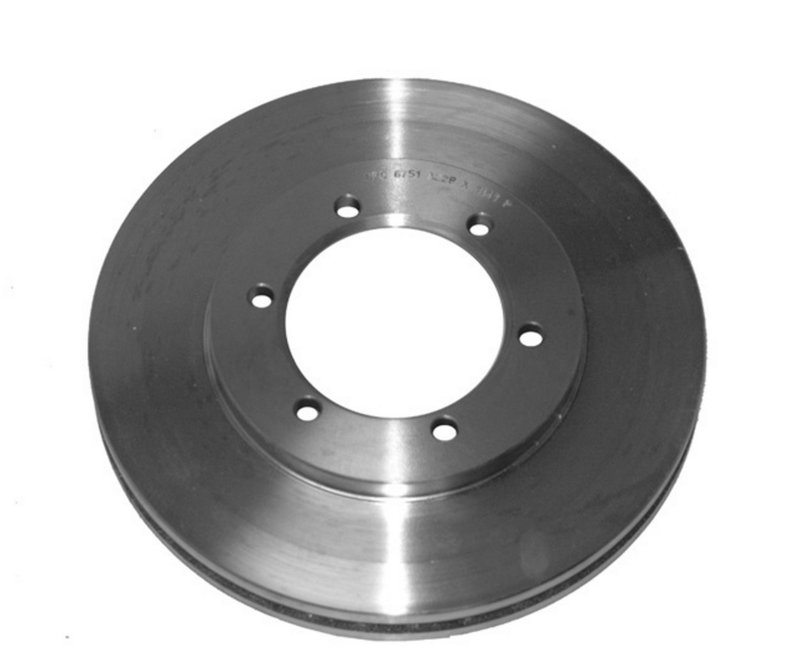

Raybestos 96751R Disc Brake Rotor - Front
OE Quality 60-Day Returns
Raybestos
R-Line

Raybestos 96751R Disc Brake Rotor - Front

Brand Raybestos 96751R
Position Front
Center Hole Diameter 3.625
Center Hole Diameter 92.050
Conventional Or Drum-In-Hat Type Rotor Conventional
Discard Thickness 0.950
Discard Thickness 24.150
Mounting Bolt Hole Circle Diameter 4.500
Mounting Bolt Hole Circle Diameter 114.300
Mounting Bolt Hole Diameter 4.500
Mounting Bolt Hole Diameter 114.300
Mounting Bolt Hole Quantity 6
Nominal Thickness 1.025
Nominal Thickness 26.050
Outside Diameter 10.240
Outside Diameter 260.100
Overall Height 1.570
Overall Height 39.900
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Quantity 6
Product line R-Line
Fits Nissan · 7 vehicles

Vented design. Promotes airflow for more consistent braking performance.

Conventional rotor. A straightforward disc brake replacement for everyday service.

R-Line series. Raybestos value line for dependable brake parts.

Cross-references Beck/Arnley 083-2723, Bosch 40011045 and Centric Parts 120.42067 for the same application. See all 50.

$45.35Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $45.35
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Raybestos R-Line 96751R Front Brake Rotor

The Raybestos R-Line 96751R is a vented front disc brake rotor built for the 1998-2004 Nissan Frontier, front. It is sized for direct replacement service and matches the vehicle’s conventional rotor design for straightforward brake maintenance.

Key Features

  • Brand: Raybestos R-Line
  • Part number: 96751R
  • Front disc brake rotor for 1998-2004 Nissan Frontier, front
  • Vented rotor construction for front axle brake cooling
  • Conventional rotor design
  • Outside diameter: 10.240 in. / 260.100 mm
  • Nominal thickness: 1.025 in. / 26.050 mm
  • Discard thickness: 0.950 in. / 24.150 mm
  • Overall height: 1.570 in. / 39.900 mm
  • Center hole diameter: 3.625 in. / 92.050 mm
  • 6 mounting bolt holes and 6 stud/lug holes
  • Bolt circle diameter: 4.500 in. / 114.300 mm

Product Details

Raybestos R-Line brake components are positioned for everyday repair and maintenance needs, with application-specific sizing and fitment details that matter during rotor replacement. The 96751R follows the original-style front rotor layout used on the Nissan Frontier and provides the dimensional specifications needed for proper wheel and hub alignment. This part cross-references Bosch 40011045 and DuraGo BR31259 for the same application.

Common Reasons to Replace

  • Brake pulsation or steering wheel shake during stops
  • Rotor wear approaching discard thickness
  • Brake noise caused by uneven rotor surfaces
  • Reduced braking consistency from heat-related rotor wear
  • Front brake service on a 1998-2004 Nissan Frontier, front

Installation Notes

Verify rotor diameter, center hole diameter, bolt pattern, and thickness before installation. Clean the hub mounting surface, inspect pads and caliper hardware, and confirm the rotor seats flat against the hub. For best results, measure the rotor after installation and follow the vehicle manufacturer’s brake service procedures.

Quality Assurance

Raybestos R-Line parts are built around application-specific brake service requirements and dimensional accuracy for direct-fit replacement work. The 96751R is identified with confirmed interchange references and vehicle fitment data for the Nissan Frontier platform.

Related reading

This part fits 7 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypeLitersCylindersPositionNotes
2004NissanFrontierRWD2.4LL4FrontR-Line
2003NissanFrontierRWD2.4LL4FrontR-Line
2002NissanFrontierRWD2.4LL4FrontR-Line
2001NissanFrontierRWD2.4LL4FrontR-Line
2000NissanFrontierRWD2.4LL4FrontR-Line
1999NissanFrontierRWD2.4LL4FrontR-Line
1998NissanFrontierRWD——FrontR-Line
Directly replaces or cross-references 50 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Beck/Arnley — 083-2723Bosch — 40011045Centric Parts — 120.42067Centric Parts — 121.42067Centric Parts — 320.42067Centric Parts — 320.42067FDuraGo — BR31259PowerStop — JBR915PowerStop — JBR915EVCPromax — 14-31259Raybestos Brakes — 96751RStopTech — 126.42067SLStopTech — 126.42067SR09.8066.1052-12556364-76-10081-12556389-04066127.42067L127.42067R255563125931259DG31259G40206VN11A9675196751RGS109113125563145187211183-C325474402062S400402062S401402069Z000442644476100BD125563CW26747DL31259JBR915ENI477Q291QBRR542R76100SB96751X51276YH2644YH145187YH145187C
