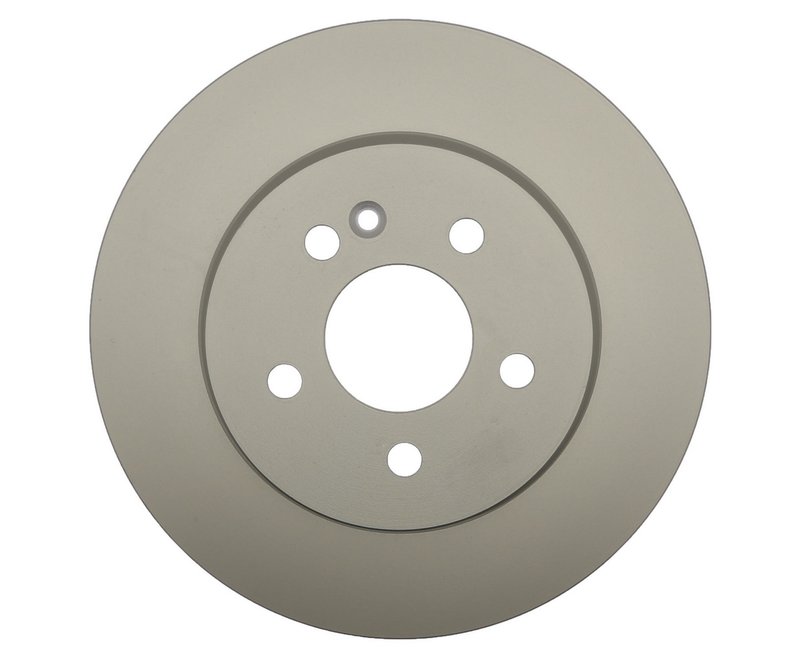

Raybestos 96783FZN Disc Brake Rotor - Front

Reliable Disc Brake Rotor for Mercedes-Benz ML Models

The Raybestos Element3; Coated Rotor 96783FZN is engineered to provide consistent braking performance for Mercedes-Benz ML320, ML350, and ML430 vehicles. Designed as a vented, conventional disc brake rotor, it meets precise specifications to ensure proper fit and function.

• Compatible with Mercedes-Benz ML320, ML350, and ML430 models
• Part number 96783FZN for accurate identification
• Vented rotor design for improved heat dissipation
• Overall diameter of 11.921 inches (302.8 mm) and 5 mounting bolt holes
• Nominal thickness of 1.020 inches (25.9 mm) with discard thickness at 0.906 inches (23.0 mm)
• Center hole diameter of 2.638 inches (67.0 mm) for precise hub fitment
• Conventional rotor type suitable for standard braking systems

Detailed Specifications and Design Features

This Raybestos disc brake rotor features a vented design that enhances cooling during braking, reducing the risk of brake fade. The rotor's overall height measures 2.018 inches (51.25 mm), ensuring compatibility with the brake caliper assembly on Mercedes-Benz ML320, ML350, and ML430 models. The 5 mounting bolt holes and stud/lug hole quantity of 5 correspond to the vehicle's wheel hub configuration, while the mounting bolt hole circle diameter of 4.409 inches (112.0 mm) ensures secure installation. The nominal thickness of 1.020 inches (25.9 mm) provides durability, and the discard thickness of 0.906 inches (23.0 mm) indicates when replacement is necessary to maintain safe braking performance.

About the Element3; Coated Rotor Product Line

The Element3; Coated Rotor line by Raybestos is designed to offer enhanced corrosion resistance and extended rotor life through a protective coating. This coating helps prevent rust buildup, which can affect braking efficiency and rotor longevity. The 96783FZN rotor benefits from this coating, making it a practical choice for maintaining consistent braking performance on Mercedes-Benz ML series vehicles.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Addressing rotor corrosion that leads to uneven braking
• Improving heat dissipation to reduce brake fade during heavy use
• Restoring proper rotor thickness for safe braking distances
• Ensuring compatibility with Mercedes-Benz ML320, ML350, and ML430 brake systems

Installation Notes and Tips

When installing the Raybestos 96783FZN rotor, ensure the mounting surface is clean and free of debris to prevent rotor runout. Verify the rotor thickness before installation and replace if below the discard thickness of 0.906 inches (23.0 mm). Use proper torque specifications on the 5 mounting bolts to secure the rotor. It is recommended to replace brake pads simultaneously to optimize braking performance and rotor lifespan.

Quality Assurance and Warranty

Raybestos disc brake rotors undergo rigorous quality control to meet OEM standards for fit, form, and function. The Element3; Coated Rotor line includes a protective coating to resist corrosion and extend service life. While specific warranty details for part number 96783FZN should be confirmed with the supplier, Raybestos typically offers limited warranties covering defects in materials and workmanship.
