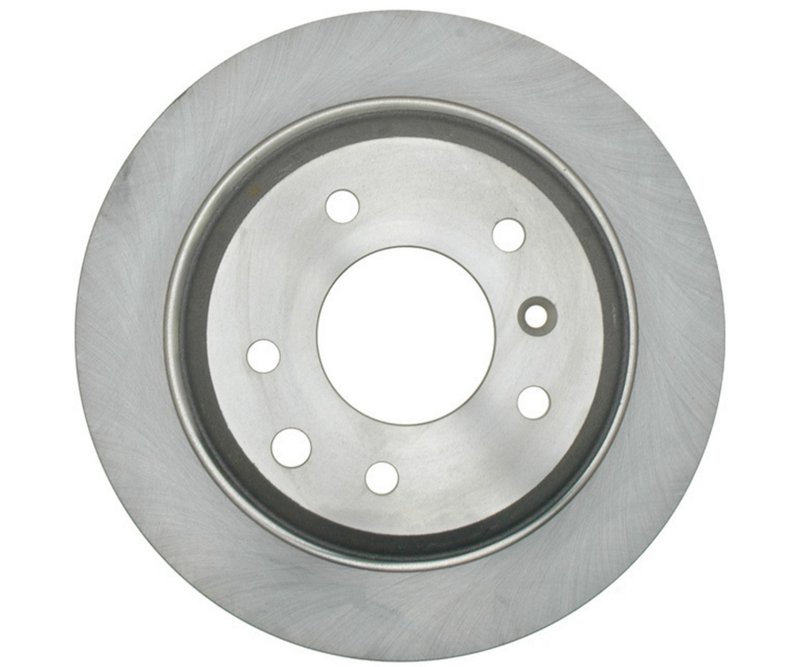

Raybestos 96811R Disc Brake Rotor - Rear

Raybestos R-Line Rear Brake Rotor for Jaguar

The Raybestos R-Line 96811R is a vented rear disc brake rotor built for select Jaguar applications from 1990-1995. With a 11.590-inch outside diameter, 5-lug bolt pattern, and conventional rotor design, it matches the dimensional requirements for rear brake service on the listed vehicles.

For shoppers searching for a rear brake rotor for Jaguar XJ6, XJS, XJ12, Vanden Plas, or XJRS, this Raybestos rotor provides the fitment and specifications needed for direct replacement service. The 96811R part number is also referenced across several aftermarket interchange listings for the same application.

Key Features

• Raybestos R-Line replacement rotor for rear brake service
• Vented rotor construction for select Jaguar rear applications
• Outside diameter: 11.590 in. / 294.400 mm
• Nominal thickness: 0.384 in. / 9.750 mm
• Discard thickness: 0.346 in. / 8.800 mm
• Overall height: 2.670 in. / 67.800 mm
• 5 mounting bolt holes and 5 stud/lug holes
• Center hole diameter: 2.904 in. / 73.750 mm
• Conventional rotor design, not drum-in-hat

Detailed Description

The Raybestos R-Line 96811R rear brake rotor is engineered to match the listed Jaguar rear brake dimensions, including the 120.650 mm bolt circle and vented rotor configuration. It is a conventional disc brake rotor for vehicles that use a standard rear rotor setup rather than a drum-in-hat design. This makes it a direct-fit service part for maintenance on select 1990-1995 Jaguar XJ6, XJS, XJ12, Vanden Plas, and XJRS models.

Raybestos R-Line parts are positioned as practical replacement components for everyday brake service, and this rotor follows the OE-style size and mounting layout required for the specified rear axle applications. If you are replacing a worn rear brake rotor on a Jaguar XJS or Jaguar XJ6, the 96811R offers the correct dimensional profile for the listed chassis and model-year combinations.

This part cross-references Centric Parts 121.20010 for the same application.

What It Helps Address

• Brake pulsation caused by rotor wear or thickness variation
• Rear brake noise related to uneven rotor surfaces
• Reduced braking consistency from a worn or heat-affected rotor
• Service replacement for rotors that have reached discard thickness
• Fitment issues when replacing the rear rotor on listed Jaguar models

Installation Notes and Tips

Verify rotor dimensions, bolt pattern, and rear axle fitment before installation. Confirm the vehicle chassis breakpoints listed in the fitment data, especially for 1990-1994 Jaguar Vanden Plas, XJ6, XJS, XJ12, and 1993 Jaguar XJRS applications. Inspect pads, caliper condition, and hub surfaces during brake service to help ensure proper rotor seating and braking performance.

• Fits 1995 Jaguar XJS, rear
• Fits 1994 Jaguar Vanden Plas, rear, to chassis # 708757
• Fits 1994 Jaguar XJ12, rear
• Fits 1994 Jaguar XJ6, rear, to chassis # 708757
• Fits 1994 Jaguar XJS, rear
• Fits 1991-1993 Jaguar Vanden Plas, rear
• Fits 1991-1993 Jaguar XJ6, rear
• Fits 1993 Jaguar XJRS, rear, from chassis # 188105
• Fits 1993 Jaguar XJS, rear, from chassis # 188105
• Fits 1990 Jaguar Vanden Plas, rear, from chassis # 594576
• Fits 1990 Jaguar XJ6, rear, from chassis # 594576

Quality Assurance

Raybestos manufactures brake components with application-specific dimensions and interchange references that support accurate replacement selection. The 96811R is listed with multiple cross-reference numbers and confirmed rear fitment data for select Jaguar models.
