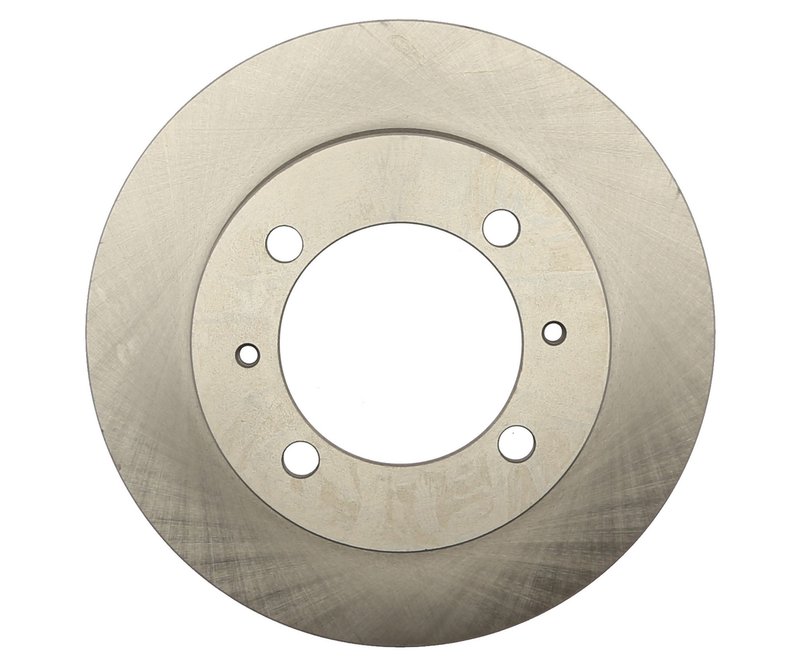

Raybestos 96870R Disc Brake Rotor - Rear
OE Quality 60-Day Returns
Raybestos
R-Line

Raybestos 96870R Disc Brake Rotor - Rear

Brand Raybestos 96870R
Position Rear
Center Hole Diameter 3.547
Center Hole Diameter 90.100
Conventional Or Drum-In-Hat Type Rotor Conventional
Discard Thickness 0.646
Discard Thickness 16.400
Mounting Bolt Hole Circle Diameter 4.500
Mounting Bolt Hole Circle Diameter 114.300
Mounting Bolt Hole Diameter 0.495
Mounting Bolt Hole Diameter 12.550
Mounting Bolt Hole Quantity 4
Nominal Thickness 0.709
Nominal Thickness 18.000
Outside Diameter 9.715
Outside Diameter 246.750
Overall Height 1.850
Overall Height 47.000
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Quantity 4
Product line R-Line
Fits Mitsubishi, Chrysler, and Dodge · 16 vehicles

Vented design. Helps promote airflow for more consistent braking performance.

Conventional rotor. A straightforward replacement for standard brake setups.

R-Line series. Raybestos line focused on dependable everyday service.

Cross-references Anchor 3283, ATP 103169 and Centric Parts 121.46006 for the same application. See all 21.

$41.12Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $41.12
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Raybestos R-Line Rear Disc Brake Rotor 96870R

The Raybestos R-Line 96870R is a vented rear disc brake rotor built for specific Chrysler, Dodge, Plymouth, and Mitsubishi applications. With a 9.715-inch outside diameter, 4-lug mounting pattern, and conventional drum-in-hat rotor design, it matches the dimensional requirements for select rear brake service.

Key Features

  • Raybestos R-Line part number 96870R
  • Vented rear disc brake rotor for conventional applications
  • Outside diameter: 9.715 in. / 246.750 mm
  • Nominal thickness: 0.709 in. / 18.000 mm
  • Discard thickness: 0.646 in. / 16.400 mm
  • Overall height: 1.850 in. / 47.000 mm
  • 4 mounting bolt holes and 4 stud/lug holes
  • Center hole diameter: 3.547 in. / 90.100 mm
  • Bolt circle diameter: 4.500 in. / 114.300 mm

Product Details

Raybestos R-Line brake components are positioned for direct replacement service, and this rotor follows the same approach with application-specific dimensions for rear brake repair. The 96870R is listed for 1983-1989 Mitsubishi Starion rear, 1984-1987 Dodge Conquest rear, 1984-1989 Plymouth Conquest rear, and 1987-1989 Chrysler Conquest rear. This part cross-references Centric Parts 121.46006 for the same application.

Use this rotor when servicing rear brake systems on a Mitsubishi Starion, Chrysler Conquest, Dodge Conquest, or Plymouth Conquest that requires a 4-lug, vented conventional rotor. The Raybestos 96870R part number is also a useful reference when verifying brake rotor dimensions against existing hardware.

Common Repair Uses

  • Rear brake rotor replacement for worn braking surfaces
  • Correction of rotor thickness below service limits
  • Repair for brake pulsation caused by rotor wear or variation
  • Replacement for rusted or heat-damaged rear rotors
  • Service on 4-lug rear brake systems for select Conquest and Starion models

Installation Notes

Confirm rotor diameter, center hole diameter, bolt circle, and thickness before installation. Verify rear-position fitment and compare the existing rotor to the listed 9.715-inch outside diameter and 4.500-inch bolt circle. Always inspect pads, calipers, and hub surfaces during brake service, and follow the vehicle manufacturer’s torque and bedding procedures.

Quality Assurance

This Raybestos R-Line rotor is built to published dimensional specifications for the listed applications. The R-Line product line is used for direct-fit brake service across a range of passenger vehicles, including select Mitsubishi Starion and Chrysler Conquest rear brake applications.

Related reading

This part fits 16 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
1989ChryslerConquestRear4 Lug; Raybestos R-Line
1989MitsubishiStarionRearwith 4 Stud Rotor; R-Line
1988ChryslerConquestRear4 Lug; Raybestos R-Line
1988MitsubishiStarionRearwith 4 Stud Rotor; R-Line
1987ChryslerConquestRearwith 4 Stud Rotor; R-Line
1987MitsubishiStarionRearwith 4 Stud Rotor; R-Line
1986DodgeConquestRearwith 4 Stud Rotor; R-Line
1986MitsubishiStarionRearwith 4 Stud Rotor; R-Line
1986PlymouthConquestRear4 Lug; Raybestos R-Line
1985DodgeConquestRearwith 4 Stud Rotor; R-Line
1985MitsubishiStarionRearwith 4 Stud Rotor; R-Line
1985PlymouthConquestRear4 Lug; Raybestos R-Line
1984DodgeConquestRearwith 4 Stud Rotor; R-Line
1984MitsubishiStarionRearwith 4 Stud Rotor; R-Line
1984PlymouthConquestRear4 Lug; Raybestos R-Line
1983MitsubishiStarionRearwith 4 Stud Rotor; R-Line
Directly replaces or cross-references 21 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Anchor — 3283ATP — 103169Centric Parts — 121.46006FEL-PRO — 60712NGK — 9687052-60712083-205089-16006120.460063283DG141326600202BD60712BR1476BR3283DG231PJBR131JBR131EMB151406X50778YH141325P
