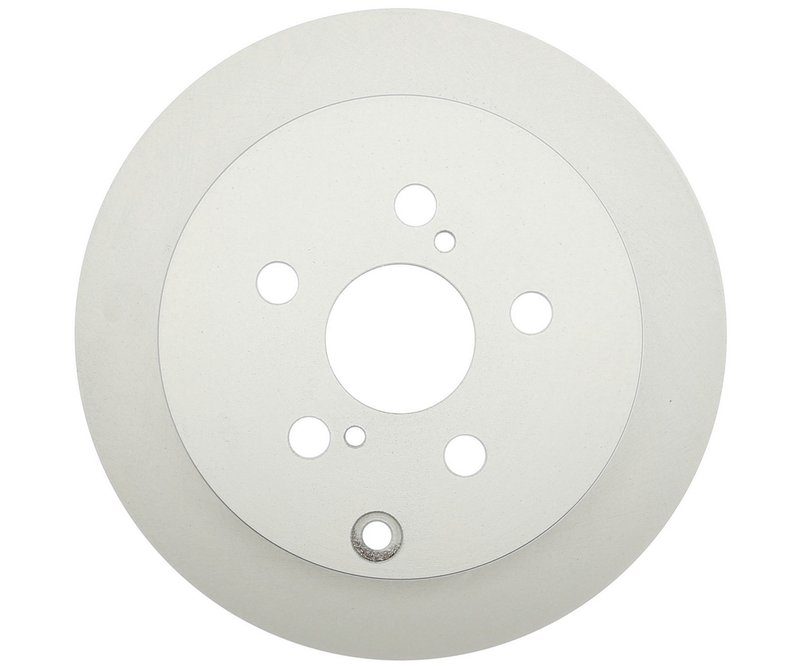

Raybestos 96933FZN Disc Brake Rotor - Rear

Reliable Disc Brake Rotor for Toyota, Pontiac, and Scion Vehicles

The Raybestos Element3; Coated Rotor 96933FZN is engineered to provide consistent braking performance for select Toyota, Pontiac, and Scion models. Designed as a solid, drum-in-hat type rotor, it meets precise specifications to ensure proper fit and function.

• Compatible with Toyota Corolla, Celica, Matrix, tC, Pontiac Vibe, and Scion models
• Part number 96933FZN for accurate identification
• Solid disc brake rotor with drum-in-hat design
• Coated surface for corrosion resistance
• Five mounting bolt holes with 3.937-inch diameter
• Nominal thickness of 0.354 inches (9.000 mm) and discard thickness of 0.295 inches (7.500 mm)
• Overall height of 2.195 inches (55.750 mm) and outside diameter of 10.585 inches (268.850 mm)
• Center hole diameter of 2.168 inches (55.050 mm)

About the Raybestos Element3; Coated Rotor Line

The Element3; Coated Rotor line from Raybestos focuses on delivering rotors with a protective coating that helps resist rust and corrosion, extending the rotor's service life. This coating is especially beneficial for vehicles exposed to moisture and road salt. The 96933FZN rotor combines this coating with a solid, drum-in-hat design, making it suitable for specific Toyota, Pontiac, and Scion models requiring this configuration.

Technical Specifications and Features

This disc brake rotor features a solid construction with a drum-in-hat type, which integrates the parking brake drum into the rotor itself. It has five mounting bolt holes arranged on a 3.937-inch (100 mm) bolt circle diameter, ensuring compatibility with the specified vehicles. The rotor's nominal thickness is 0.354 inches (9.000 mm), with a discard thickness of 0.295 inches (7.500 mm), indicating when replacement is necessary to maintain safe braking performance. The overall height measures 2.195 inches (55.750 mm), and the outside diameter is 10.585 inches (268.850 mm), matching factory specifications for proper fitment. The center hole diameter is 2.168 inches (55.050 mm), allowing for precise mounting on the hub.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Toyota Corolla, Celica, Matrix, tC, Pontiac Vibe, and Scion vehicles
• Addresses brake pulsation and noise caused by uneven rotor surfaces
• Restores proper braking performance and pedal feel
• Prevents corrosion-related rotor damage with coated surface
• Supports parking brake function with integrated drum-in-hat design

Installation Notes and Tips

• Verify vehicle compatibility with part number 96933FZN before installation
• Inspect mounting hardware and replace if worn or damaged
• Ensure rotor thickness meets nominal specifications; replace if below discard thickness
• Clean hub surface to prevent rotor runout and ensure proper seating
• Torque mounting bolts to manufacturer specifications for safety and performance

Quality Assurance and Warranty

Raybestos rotors, including the Element3; Coated Rotor 96933FZN, are manufactured to meet or exceed OEM standards for fit, form, and function. The protective coating helps extend rotor life by reducing corrosion. While specific warranty details may vary, Raybestos typically offers coverage against defects in materials and workmanship. Always consult product documentation or manufacturer resources for exact warranty terms.
