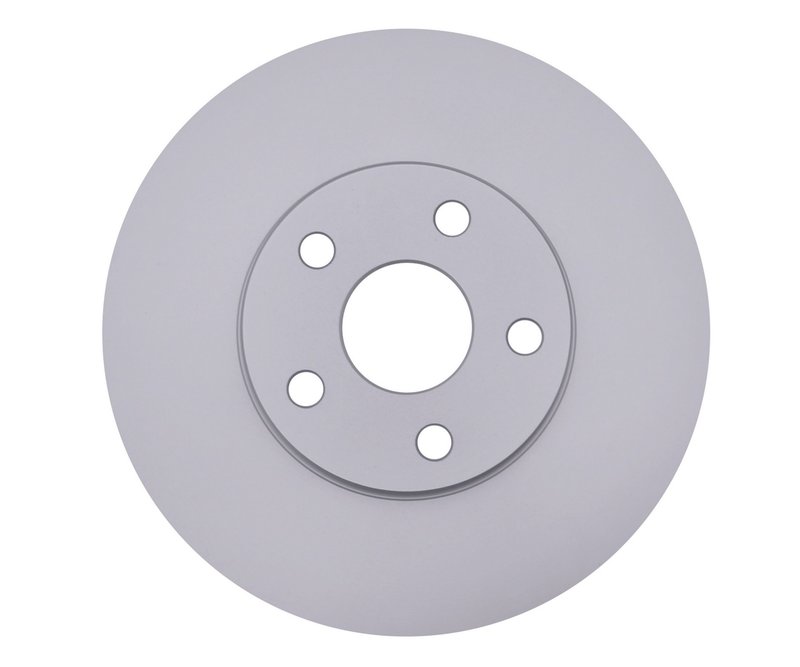

Raybestos 96934FZN Disc Brake Rotor - Front

Reliable Disc Brake Rotor for Toyota, Pontiac, and Scion Vehicles

The Raybestos Element3; Coated Rotor 96934FZN is engineered to provide consistent braking performance for select Toyota, Pontiac, and Scion models. Designed as a solid disc brake rotor, it meets precise specifications to ensure proper fit and function.

• Compatible with Toyota Corolla, Celica, Matrix, tC, Pontiac Vibe, and Scion models
• Solid rotor design with 5 mounting bolt holes for secure installation
• Nominal thickness of 0.985 inches (25.000 mm) and discard thickness of 0.906 inches (23.000 mm)
• Overall height of 1.935 inches (49.150 mm) and outside diameter of 10.825 inches (274.950 mm)
• Center hole diameter of 2.168 inches (55.050 mm) and mounting bolt hole circle diameter of 3.937 inches (100.000 mm)

About the Raybestos Element3; Coated Rotor Line

The Element3; Coated Rotor line from Raybestos features rotors with a protective coating designed to resist corrosion and extend rotor life. This coating helps maintain rotor integrity and appearance over time, making it suitable for vehicles exposed to varying weather conditions. The 96934FZN rotor is part of this line, combining solid rotor construction with a durable coating for reliable braking performance.

Technical Specifications and Features

This disc brake rotor is a conventional solid type, designed with five mounting bolt holes and five stud/lug holes to match the specified bolt pattern. The nominal thickness of 0.985 inches (25.000 mm) ensures adequate material for effective braking, while the discard thickness of 0.906 inches (23.000 mm) indicates when replacement is necessary to maintain safety. The rotor’s overall height and outside diameter are engineered to fit precisely on compatible Toyota Corolla, Celica, Matrix, tC, Pontiac Vibe, and Scion models, ensuring proper alignment and brake system function.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Addressing rotor corrosion and surface rust that affect braking efficiency
• Restoring proper rotor thickness to prevent brake fade and maintain stopping power
• Ensuring compatibility with factory brake components on Toyota, Pontiac, and Scion vehicles
• Providing a solid rotor option for vehicles requiring conventional disc brake rotors

Installation Notes and Tips

When installing the Raybestos 96934FZN rotor, ensure the mounting surface is clean and free of debris to promote proper seating. Verify the rotor thickness before installation to confirm it meets or exceeds the discard thickness specification. Use the correct torque specifications for the 5 mounting bolts to avoid rotor warping. It is recommended to replace brake pads simultaneously to optimize braking performance and rotor longevity.

Quality Assurance and Warranty

Raybestos disc brake rotors undergo rigorous quality control to meet industry standards for durability and performance. The Element3; Coated Rotor line includes a protective coating to resist corrosion and extend service life. Warranty coverage details should be confirmed with the manufacturer or authorized distributor to ensure proper protection for your purchase.
