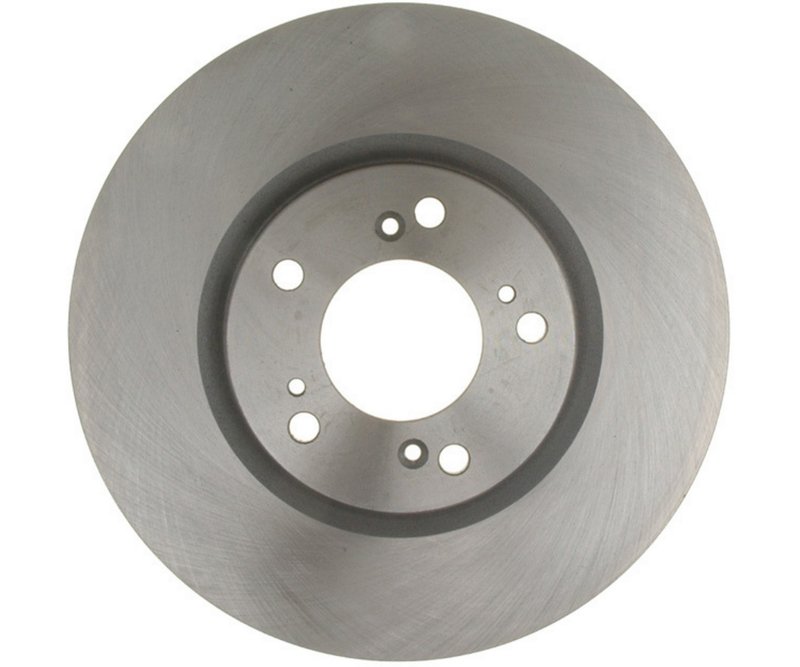

Raybestos 96936R Disc Brake Rotor - Front

Overview of Raybestos R-Line Disc Brake Rotor 96936R

The Raybestos R-Line Disc Brake Rotor 96936R is engineered for precise fitment on Honda S2000 models. This solid rotor offers reliable braking performance with exacting dimensions to maintain your vehicle's stopping power and safety.

• Compatible with Honda S2000
• Part number 96936R
• Solid disc brake rotor design
• Outside diameter: 11.8 inches (299.7 mm)
• Nominal thickness: 0.984 inches (25.0 mm)
• Discard thickness: 0.906 inches (23.0 mm)
• Overall height: 1.56 inches (39.6 mm)
• Mounting bolt hole quantity: 5
• Center hole diameter: 2.763 inches (70.2 mm)
• Mounting bolt hole circle diameter: 4.5 inches (114.3 mm)

Raybestos R-Line Product Line Details

The R-Line by Raybestos is designed to provide dependable braking components that meet or exceed OEM specifications. This product line focuses on delivering solid rotors with consistent thickness and precise dimensions, ensuring proper fit and function for vehicles like the Honda S2000. The 96936R rotor exemplifies the R-Line's commitment to quality and durability in conventional disc brake applications.

Technical Specifications and Features

This Raybestos R-Line rotor is a solid type, conventional disc brake rotor with a 5-bolt mounting pattern. The rotor's outside diameter measures 11.8 inches (299.7 mm), with a nominal thickness of 0.984 inches (25.0 mm) and a discard thickness of 0.906 inches (23.0 mm). The overall height is 1.56 inches (39.6 mm), and the center hole diameter is 2.763 inches (70.2 mm). These precise measurements ensure compatibility and optimal performance on the Honda S2000.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Honda S2000
• Restores proper braking surface thickness to prevent brake fade
• Addresses rotor runout and vibration issues
• Improves braking consistency and pedal feel
• Suitable for routine maintenance or brake system upgrades

Installation Notes and Tips

When installing the Raybestos R-Line 96936R rotor, ensure the mounting surface is clean and free of rust or debris. Verify the rotor thickness before installation to confirm it meets minimum specifications. Use proper torque settings on the 5 mounting bolts to avoid rotor distortion. It is recommended to replace brake pads simultaneously to maintain balanced braking performance.

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet strict quality standards, ensuring durability and consistent performance. While specific warranty details for part number 96936R should be confirmed with the supplier, Raybestos typically offers limited warranties covering defects in materials and workmanship.
