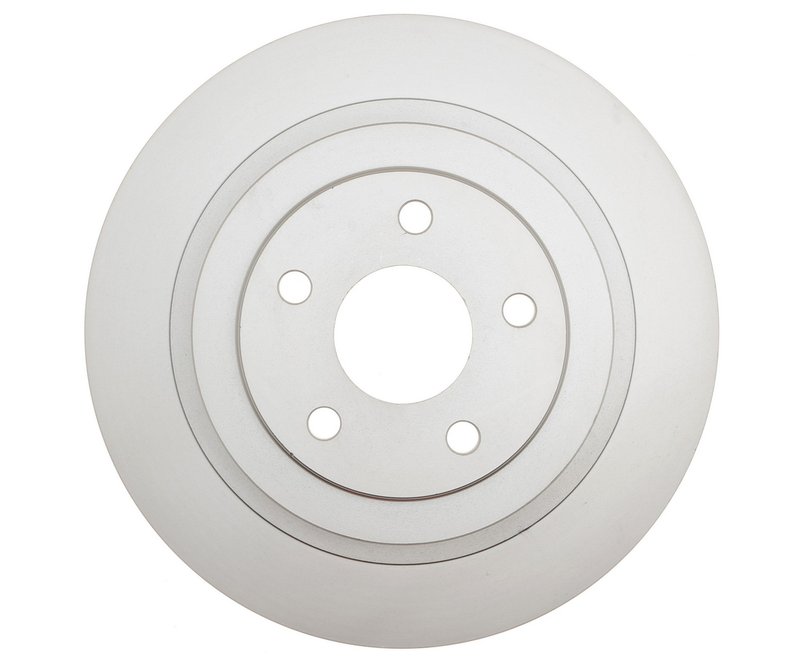

Raybestos 96937FZN Disc Brake Rotor - Rear

Overview of Raybestos Element3 Coated Rotor 96937FZN

The Raybestos Element3; Coated Rotor 96937FZN is engineered for reliable braking performance on select Subaru models. Designed as a vented, drum-in-hat disc brake rotor, it offers precise fitment and durability for Subaru Baja, Legacy, and Outback vehicles.

• Compatible with Subaru Baja, Legacy, and Outback models
• Vented disc brake rotor with drum-in-hat design
• Overall height: 2.650 inches (67.3 mm)
• Outside diameter: 11.400 inches (289.55 mm)
• Mounting bolt hole quantity: 5 with 3.937 inch (100 mm) bolt circle diameter
• Center hole diameter: 2.285 inches (58.05 mm)
• Nominal thickness: 0.394 inches (10.0 mm); discard thickness: 0.335 inches (8.5 mm)

Detailed Product Description and Specifications

This Raybestos disc brake rotor, part number 96937FZN, features a vented design that helps dissipate heat effectively during braking, reducing the risk of brake fade. The drum-in-hat configuration integrates a parking brake drum within the rotor, providing a compact and efficient braking solution. With an outside diameter of 11.4 inches and a nominal thickness of 0.394 inches, this rotor meets the precise specifications required for Subaru Baja, Legacy, and Outback models. The rotor includes five mounting bolt holes arranged on a 3.937-inch bolt circle diameter, ensuring secure installation. The center hole diameter of 2.285 inches allows proper alignment on the hub assembly.

About the Element3; Coated Rotor Product Line

The Element3; Coated Rotor line by Raybestos is designed to provide enhanced corrosion resistance and consistent braking performance. The coating applied to the rotor surface helps protect against rust and extends the rotor's service life, especially in environments prone to moisture and road salt. This product line balances durability with reliable stopping power, making it suitable for daily driving conditions on compatible Subaru vehicles.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Addressing rotor corrosion and surface rust issues
• Improving braking consistency and heat dissipation
• Restoring proper parking brake function with drum-in-hat design
• Ensuring correct fitment for Subaru Baja, Legacy, and Outback brake systems

Installation Notes and Tips

• Verify compatibility with your specific Subaru model and year before installation
• Inspect hub and mounting surfaces for cleanliness and damage prior to rotor installation
• Torque mounting bolts to manufacturer specifications to avoid rotor warping
• Replace brake pads simultaneously to ensure optimal braking performance
• Check parking brake adjustment after installation due to drum-in-hat design

Quality Assurance and Warranty

Raybestos rotors, including part number 96937FZN, are manufactured to meet or exceed OEM standards for fit, form, and function. The Element3; Coated Rotor line undergoes rigorous quality control to ensure durability and performance. While specific warranty details may vary, Raybestos typically offers limited warranties covering defects in materials and workmanship. Consult product documentation or Raybestos directly for exact warranty terms.
