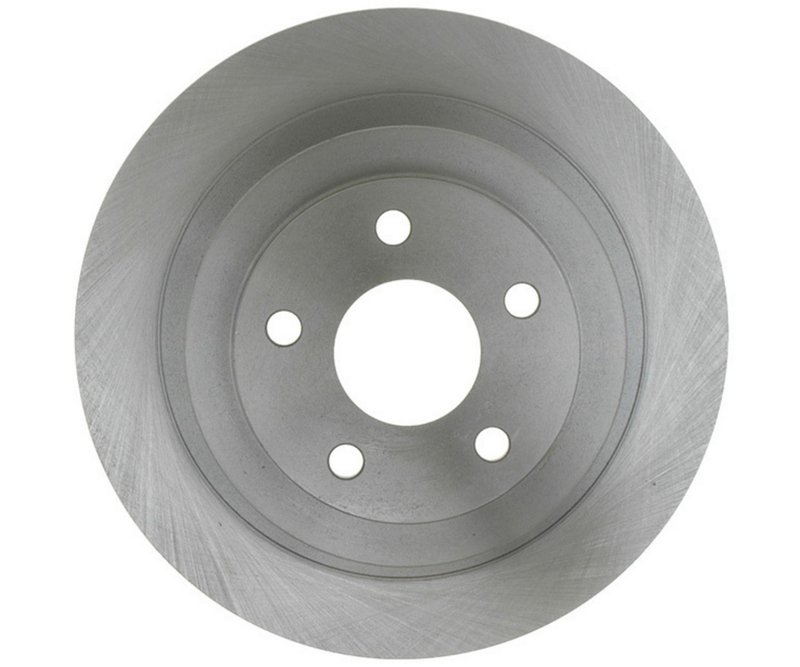

Raybestos 96937R Disc Brake Rotor - Rear

Reliable Disc Brake Rotor for Subaru Baja, Legacy, and Outback

The Raybestos R-Line 96937R disc brake rotor is engineered to meet the braking demands of Subaru Baja, Legacy, and Outback models. Designed with precision, this vented rotor ensures consistent performance and durability under various driving conditions.

• Compatible with Subaru Baja, Legacy, and Outback vehicles
• Part number 96937R for exact fitment
• Vented disc brake rotor with drum-in-hat design
• Overall height: 2.650 inches (67.300 mm)
• Outside diameter: 11.400 inches (289.550 mm)
• Mounting bolt hole quantity: 5 with 3.937 inches (100 mm) bolt circle diameter
• Center hole diameter: 2.285 inches (58.050 mm)
• Nominal thickness: 0.394 inches (10.000 mm); discard thickness: 0.335 inches (8.500 mm)

About the Raybestos R-Line Brake Rotor

The R-Line by Raybestos is a product line focused on delivering reliable, OE-quality brake components designed for direct replacement. The 96937R rotor features a vented design that improves heat dissipation, reducing the risk of brake fade during extended use. Its drum-in-hat configuration integrates a parking brake drum, providing a comprehensive braking solution for compatible Subaru models.

Technical Specifications and Features

This disc brake rotor is vented to enhance cooling efficiency, which helps maintain consistent braking performance. The rotor's nominal thickness of 0.394 inches (10.000 mm) ensures structural integrity, while the discard thickness of 0.335 inches (8.500 mm) indicates the minimum safe thickness for replacement. The 5-bolt mounting pattern with a 3.937-inch (100 mm) bolt circle diameter matches Subaru's factory specifications for the Baja, Legacy, and Outback. The overall height of 2.650 inches (67.300 mm) and outside diameter of 11.400 inches (289.550 mm) provide precise fitment and compatibility.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Addressing reduced braking efficiency due to rotor thickness below discard limits
• Resolving noise or vibration issues linked to rotor surface irregularities
• Upgrading to a vented rotor for improved heat dissipation in daily driving or towing
• Ensuring proper parking brake function with integrated drum-in-hat design

Installation Notes and Tips

When installing the Raybestos R-Line 96937R rotor, ensure the mounting surface is clean and free of debris to prevent uneven rotor seating. Verify the rotor thickness before installation to confirm it meets or exceeds the nominal thickness specification. Use proper torque settings on the 5 mounting bolts to avoid distortion. This rotor is designed for vehicles equipped with a drum-in-hat parking brake system, so confirm compatibility with your Subaru Baja, Legacy, or Outback model year and trim.

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet or exceed OEM standards, providing reliable braking performance and durability. While specific warranty details may vary, Raybestos typically offers coverage against defects in materials and workmanship. Always consult product documentation or manufacturer resources for exact warranty terms related to part number 96937R.
