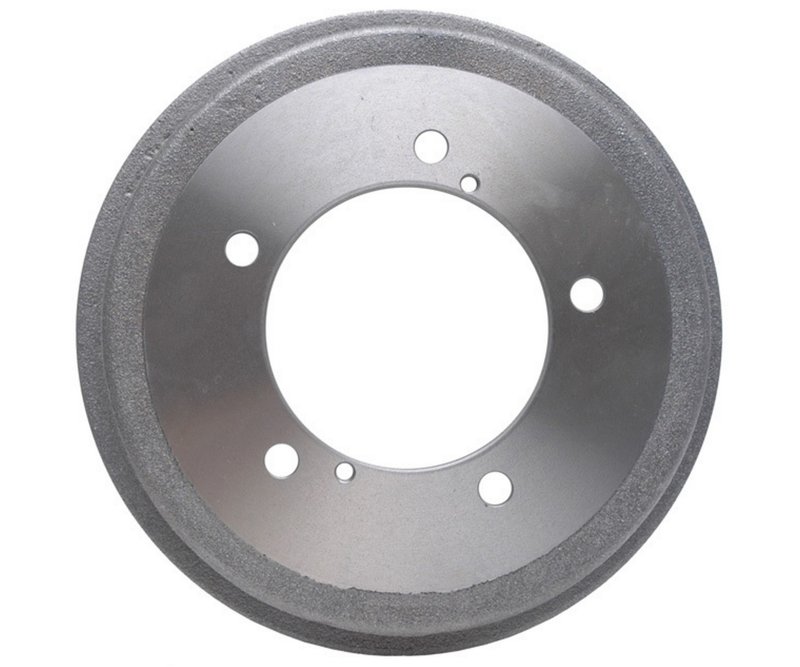

Raybestos 9693R Brake Drum - Rear

Reliable Brake Drum for Chevrolet and Suzuki Vehicles

The Raybestos R-Line 9693R brake drum is engineered to meet the braking needs of Chevrolet and Suzuki models, including the Grand Vitara, Tracker, and Vitara. Designed with precise dimensions and durable materials, this brake drum ensures consistent performance and safety on the road.

• Outside diameter: 10.300 inches (50.800 mm)
• Depth: 2.000 inches (50.800 mm)
• Nominal drum diameter: 8.750 inches (0.344 inches nominal thickness)
• 5 stud/lug holes with a diameter of 0.495 inches (12.550 mm)
• No outer cooling fins for a solid drum design

About the Raybestos R-Line Brake Drum

The R-Line by Raybestos is a product line focused on delivering dependable brake components that meet or exceed OEM specifications. The 9693R brake drum is part of this line, offering a balance of durability and precision fitment for specific Chevrolet and Suzuki models. This line is designed to provide consistent braking performance and long service life under normal driving conditions.

Detailed Product Description

This brake drum features an outside diameter of 10.300 inches, providing the correct fit for compatible Chevrolet and Suzuki vehicles. The 2.000-inch depth ensures proper engagement with brake shoes, while the nominal drum diameter of 8.750 inches supports effective braking force distribution. The 5 lug holes, each measuring 0.495 inches in diameter, align with the wheel studs for secure mounting. The absence of outer cooling fins indicates a solid drum design, suitable for standard braking applications without additional heat dissipation features.

Common Applications and Issues Addressed

• Replacement for worn or scored brake drums on Chevrolet Grand Vitara and Suzuki Tracker models
• Restores proper braking surface to eliminate brake noise and vibration
• Addresses uneven brake shoe wear caused by damaged drums
• Helps maintain consistent braking performance and pedal feel
• Suitable for routine maintenance and brake system repairs on compatible vehicles

Installation Notes and Tips

Ensure the brake drum is compatible with your vehicle’s make and model before installation. Clean the hub surface and inspect wheel studs for damage. Properly torque lug nuts to manufacturer specifications to avoid warping the drum. It is recommended to inspect brake shoes and hardware during installation to ensure optimal braking performance.

Quality Assurance and Warranty

Raybestos R-Line brake drums are manufactured to meet industry standards for quality and durability. The 9693R part number undergoes rigorous testing to ensure reliable performance. Warranty details should be confirmed with the product documentation or supplier, as coverage may vary.
