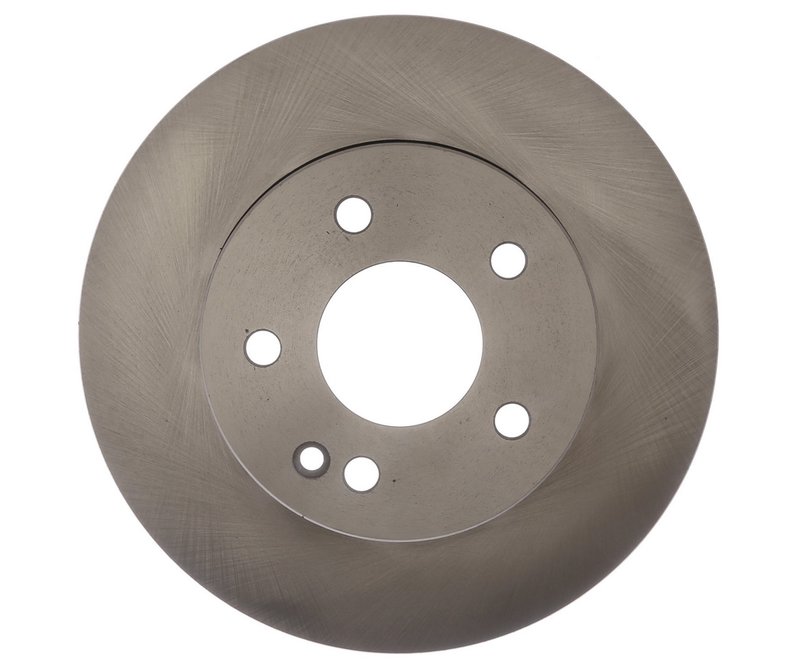

Raybestos 96956R Disc Brake Rotor - Front

Overview of Raybestos R-Line Disc Brake Rotor 96956R

The Raybestos R-Line Disc Brake Rotor 96956R is engineered for precise fitment on Mercedes-Benz C230 models. Designed as a solid, conventional rotor, it offers reliable braking performance with exacting dimensions to meet factory specifications.

• Compatible with Mercedes-Benz C230
• Part number 96956R for accurate identification
• Solid disc brake rotor with conventional design
• Outside diameter: 11.185 inches (284.1 mm)
• Nominal thickness: 0.472 inches (12.0 mm)
• Discard thickness: 0.394 inches (10.0 mm)
• Overall height: 1.715 inches (43.55 mm)
• Five mounting bolt holes with 0.525 inch (13.35 mm) diameter
• Center hole diameter: 2.64 inches (67.05 mm)
• Mounting bolt hole circle diameter: 4.409 inches (112.0 mm)

Raybestos R-Line Product Line Details

The R-Line by Raybestos focuses on delivering rotors that meet or exceed OEM specifications for fit, form, and function. This line is designed to provide consistent braking performance and durability, making it suitable for routine maintenance and replacement on vehicles like the Mercedes-Benz C230. The 96956R rotor is part of this line, ensuring compatibility and quality aligned with factory standards.

Technical Specifications and Features

This disc brake rotor is a solid type, which means it does not have ventilation channels. It features a conventional design suitable for vehicles equipped with drum-in-hat parking brakes. The rotor measures 11.185 inches in outside diameter and has a nominal thickness of 0.472 inches, with a discard thickness of 0.394 inches indicating when replacement is necessary. The overall height of 1.715 inches ensures proper alignment with the brake caliper assembly. The rotor includes five mounting bolt holes and five stud/lug holes, each with precise diameters and spacing to match the Mercedes-Benz C230 hub assembly.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Mercedes-Benz C230
• Addresses brake pulsation and vibration issues
• Restores proper braking surface thickness for safety
• Eliminates noise caused by uneven rotor wear
• Ensures correct fitment for vehicles requiring solid conventional rotors

Installation Notes and Tips

• Verify rotor thickness before installation to ensure it exceeds discard thickness
• Clean rotor surface to remove any protective coating or debris
• Check mounting bolt hole alignment and torque bolts to manufacturer specifications
• Inspect brake pads and calipers for wear during rotor replacement
• Perform a bed-in procedure after installation for optimal braking performance

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet strict quality standards, ensuring consistent performance and durability. While specific warranty details for part number 96956R should be confirmed with the supplier, Raybestos typically offers coverage against defects in materials and workmanship. This rotor is designed to provide reliable service life when installed and maintained according to vehicle manufacturer guidelines.
