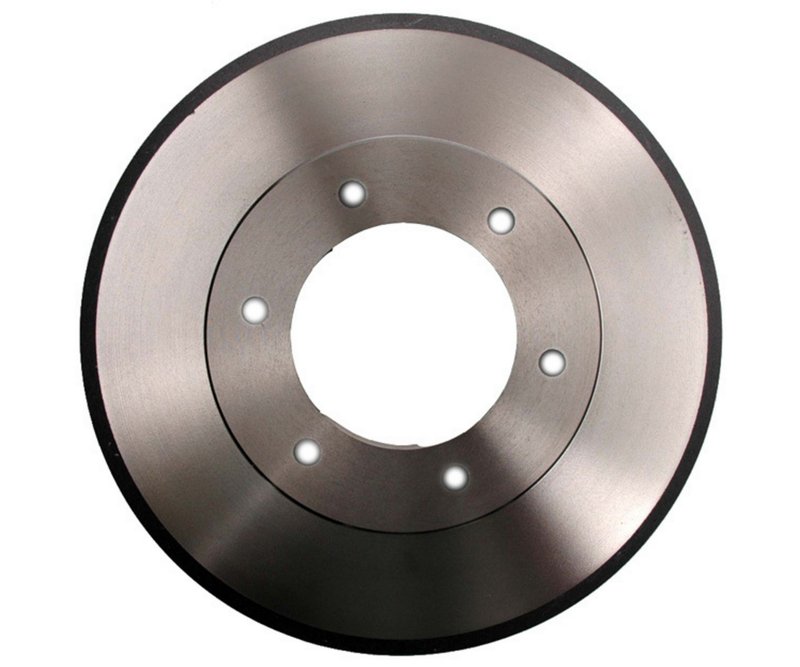

Raybestos 9714R Brake Drum - Rear
Overview of Raybestos R-Line 9714R Brake Drum
The Raybestos R-Line 9714R brake drum is engineered for reliable performance on select Honda and Isuzu vehicles. Designed to meet precise specifications, this brake drum ensures consistent braking response and durability for models like the Honda Passport and Isuzu Rodeo Sport.
- Outside diameter: 13.200 inches
- Depth: 2.400 inches
- Nominal drum diameter: 11.650 inches
- Stud/Lug hole quantity: 6
- Stud/Lug hole diameter: 0.495 inches
- No outer cooling fins
Raybestos R-Line Product Line Details
The R-Line by Raybestos focuses on delivering dependable brake components that align with original equipment specifications. The 9714R brake drum is part of this line, offering precise fitment and consistent quality for vehicles requiring exact dimensions and performance standards.
Technical Description and Specifications
This brake drum features an outside diameter of 13.200 inches and a depth of 2.400 inches, providing the necessary surface area for effective brake shoe contact. The nominal drum diameter measures 11.650 inches, ensuring compatibility with the braking system of Honda Amigo, Axiom, Passport, and Isuzu Rodeo and Rodeo Sport models. The drum includes six stud/lug holes with a diameter of 0.495 inches, matching factory mounting requirements. Notably, this drum does not have outer cooling fins, which is consistent with the original equipment design for these vehicles.
Compatible Vehicles and Applications
- Honda Amigo brake drum replacement
- Honda Axiom rear brake drum compatibility
- Honda Passport brake drum part 9714R
- Isuzu Rodeo and Rodeo Sport brake drum fitment
- Replacement brake drum for 6-lug Honda and Isuzu models
Installation Notes and Tips
- Verify stud/lug hole alignment with vehicle hub before installation
- Ensure brake shoes are properly adjusted to the 11.650-inch nominal drum diameter
- Inspect hub and bearing condition prior to mounting the brake drum
- Use proper torque specifications for the 6 lug nuts to avoid warping
- Check for any signs of uneven wear or damage on the drum surface before installation
Quality Assurance and Warranty
Raybestos R-Line brake drums are manufactured to meet or exceed OEM standards, ensuring consistent performance and durability. The 9714R part number undergoes rigorous quality control to maintain dimensional accuracy and material integrity. Warranty coverage details should be confirmed with the product documentation or supplier.
| Brand | Raybestos |
|---|---|
| Part Number | 9714R |
| Position | R-Line, Rear |
| Depth | 2.400 |
| Depth | 60.950 |
| Nominal Drum Diameter | 0.460 |
| Nominal Drum Diameter | 11.650 |
| Outer Cooling Fins | No |
| Outside Diameter | 0.520 |
| Outside Diameter | 13.200 |
| Stud/Lug Hole Diameter | 0.495 |
| Stud/Lug Hole Diameter | 12.550 |
| Stud/Lug Hole Quantity | 6 |
This part fits 16 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2004 | Isuzu | Axiom | Rear | R-Line |
| 2004 | Isuzu | Rodeo | Rear | R-Line |
| 2003 | Isuzu | Axiom | Rear | R-Line |
| 2003 | Isuzu | Rodeo | Rear | R-Line |
| 2003 | Isuzu | Rodeo Sport | Rear | R-Line |
| 2002 | Honda | Passport | Rear | R-Line |
| 2002 | Isuzu | Axiom | Rear | R-Line |
| 2002 | Isuzu | Rodeo | Rear | R-Line |
| 2002 | Isuzu | Rodeo Sport | Rear | R-Line |
| 2001 | Honda | Passport | Rear | R-Line |
| 2001 | Isuzu | Rodeo | Rear | R-Line |
| 2001 | Isuzu | Rodeo Sport | Rear | R-Line |
| 2000 | Honda | Passport | Rear | From 11/1999; R-Line |
| 2000 | Isuzu | Amigo | Rear | R-Line |
| 2000 | Isuzu | Rodeo | Rear | R-Line |
| 1999 | Isuzu | Rodeo | Rear | From 11/1999; R-Line |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
