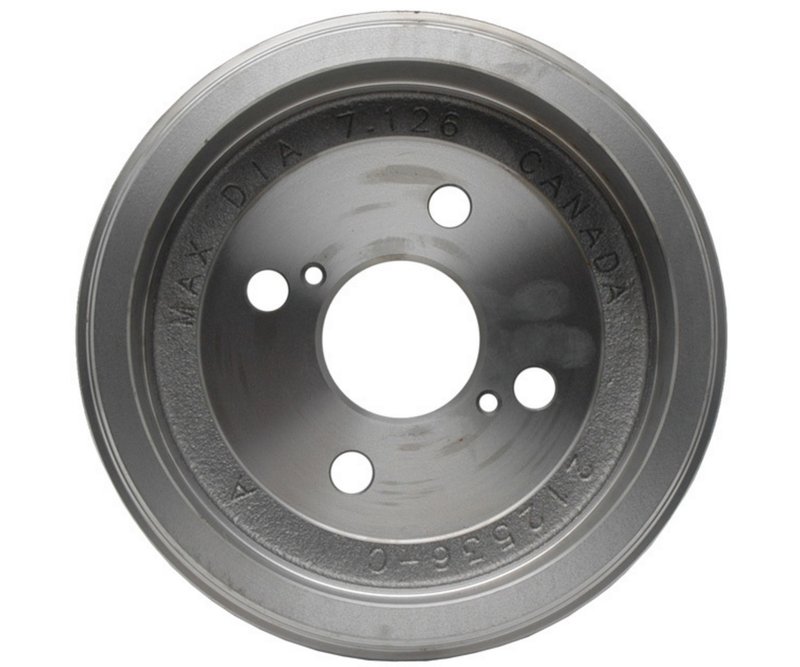

Raybestos 9730R Brake Drum - Rear
| Brand | Raybestos 9730R |
|---|---|
| Position | Rear |
| Depth | 1.500 |
| Depth | 38.100 |
| Nominal Drum Diameter | 0.281 |
| Nominal Drum Diameter | 7.150 |
| Outer Cooling Fins | No |
| Outside Diameter | 0.341 |
| Outside Diameter | 8.650 |
| Stud/Lug Hole Diameter | 0.573 |
| Stud/Lug Hole Diameter | 14.550 |
| Stud/Lug Hole Quantity | 4 |
| Product line | R-Line |
| Fits | Toyota · 6 vehicles |
Brake drum. R-Line replacement for dependable braking performance.
Cooling fins omitted. Simple drum design keeps the focus on consistent stopping.
4-lug pattern. Sized for a straightforward brake drum fit.
Cross-references Anchor 9730, Centric Parts 122.44039 and Centric Parts 123.44039 for the same application. See all 16.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Brake Drum for Toyota Echo Rear Service
Raybestos R-Line brake drum 9730R is a rear brake drum for 2000-2005 Toyota Echo applications. It is built to match the listed drum dimensions and wheel mounting pattern for a direct-fit rear brake service on the Toyota Echo.
Key Features
- Raybestos R-Line brake drum, part number 9730R
- Fits 2000-2005 Toyota Echo, rear
- Outside diameter: 8.650 in. / 219.71 mm
- Nominal drum diameter: 7.150 in. / 181.61 mm
- Depth: 1.500 in. / 38.10 mm
- 4 lug holes with 14.550 mm stud/lug hole diameter
- Outer cooling fins: No
R-Line Product Line
Raybestos R-Line covers everyday brake service parts for common repair applications. This brake drum 9730R follows the R-Line format for straightforward replacement on the rear of the Toyota Echo, with dimensions and mounting details listed for fitment verification.
Detailed Description
Use Raybestos 9730R when replacing a rear brake drum on a 2000-2005 Toyota Echo. The drum measures 8.650 inches outside diameter, 7.150 inches nominal drum diameter, and 1.500 inches deep, with four lug holes and a 14.550 mm lug hole diameter. Those specifications matter for proper wheel fitment, brake shoe contact, and drum-to-hub alignment during rear brake service.
This part cross-references DuraGo BD35092 and FEL-PRO 35092 for the same application. Raybestos 9730R is also listed among interchange references for related aftermarket brake drum searches.
Common Repair Uses
- Rear brake drum replacement for worn or out-of-round drums
- Correction of brake pulsation caused by drum surface wear
- Restoration of proper rear brake shoe contact
- Service for scoring, heat checking, or drum surface damage
- Replacement after inspection reveals diameter or depth mismatch
Installation Notes and Tips
Verify rear fitment against the vehicle year and brake configuration before installation. Inspect brake shoes, wheel cylinders, and hardware condition during drum replacement, and confirm the drum seats evenly on the hub before final assembly. Measure the existing drum and compare it to the listed outside diameter, nominal drum diameter, depth, and lug hole dimensions for a proper match.
Quality Assurance
Raybestos is a recognized brake parts brand, and the R-Line catalog is organized for direct replacement service on listed applications. This brake drum is specified for 2000-2005 Toyota Echo rear fitment and should be selected based on the published dimensions and vehicle application data.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2005 | Toyota | Echo | Rear | R-Line |
| 2004 | Toyota | Echo | Rear | R-Line |
| 2003 | Toyota | Echo | Rear | R-Line |
| 2002 | Toyota | Echo | Rear | R-Line |
| 2001 | Toyota | Echo | Rear | R-Line |
| 2000 | Toyota | Echo | Rear | R-Line |
