Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

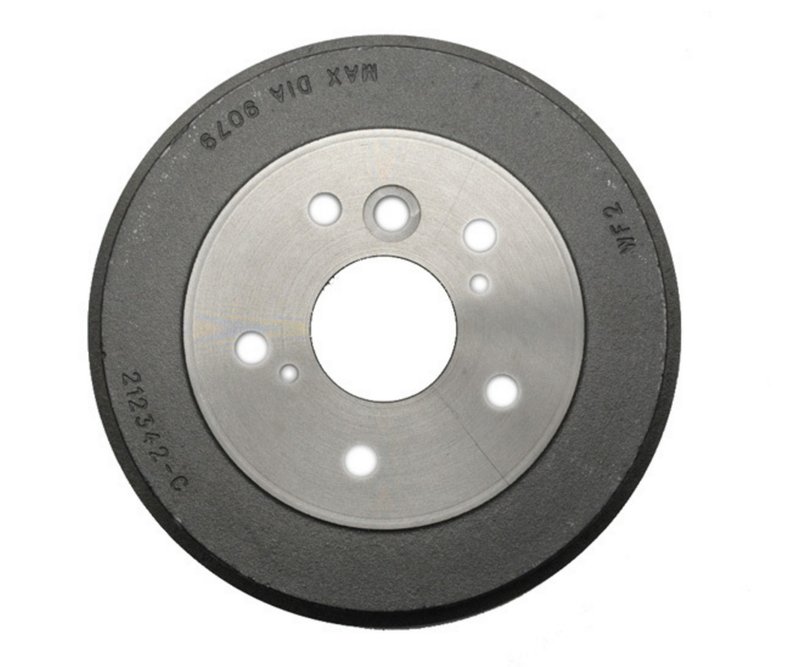

Raybestos 9731R Brake Drum - Rear
| Brand | Raybestos 9731R |
|---|---|
| Position | Rear |
| Depth | 2.400 |
| Depth | 60.950 |
| Nominal Drum Diameter | 0.357 |
| Nominal Drum Diameter | 9.100 |
| Outer Cooling Fins | No |
| Outside Diameter | 0.421 |
| Outside Diameter | 10.700 |
| Stud/Lug Hole Diameter | 0.575 |
| Stud/Lug Hole Diameter | 14.600 |
| Stud/Lug Hole Quantity | 5 |
| Product line | R-Line |
| Fits | Toyota · 7 vehicles |
Brake drum. Part of Raybestos R-Line for dependable braking performance.
Five lug holes. Built with a 5-hole pattern for straightforward installation.
Cross-references Anchor 9731, Beck/Arnley 083-2942 and Centric Parts 122.44041 for the same application. See all 20.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Raybestos R-Line Brake Drum 9731R
The Raybestos R-Line 9731R brake drum is built for rear brake service on select Toyota applications. It is sized with a 10.700-inch outside diameter, 2.400-inch depth, and 9.100-inch nominal drum diameter for direct-fit replacement use.
Compatible With 2001-2005 Toyota Camry rear, including USA-made vehicles, and 2002-2003 Toyota Solara rear. This brake drum is part of the Raybestos R-Line line, a product line focused on application-specific brake service parts for everyday repair work.
Key Features
- Raybestos R-Line brake drum, part number 9731R
- 10.700-inch outside diameter and 2.400-inch depth
- 9.100-inch nominal drum diameter
- 5 stud/lug holes with 14.600 mm lug hole diameter
- No outer cooling fins
- Rear brake drum for select Toyota Camry and Toyota Solara applications
Detailed Description
The Raybestos 9731R brake drum is engineered for rear drum brake service where the original drum has worn, scored, or lost braking consistency. Its dimensional profile supports proper shoe contact and drum-to-shoe geometry on 2001-2005 Toyota Camry rear applications and 2002-2003 Toyota Solara rear applications. For shoppers searching for a rear brake drum for 2001-2005 Toyota Camry USA-made vehicles or a rear brake drum for 2002-2003 Toyota Solara, this part number provides a direct reference point for fitment-based replacement.
This part cross-references Beck/Arnley 083-2942 and DuraGo BD35091 for the same application.
What It Helps Address
- Brake pulsation caused by drum wear or uneven surface condition
- Reduced rear braking performance from an out-of-spec drum
- Noise from worn drum-to-shoe contact surfaces
- Scoring or heat-related damage on the existing rear drum
- Fitment issues when replacing a damaged Toyota Camry or Toyota Solara rear drum
Installation Notes and Tips
Verify rear axle application, wheel stud pattern, and drum dimensions before installation. Inspect brake shoes, hardware, and wheel cylinders during service so the new drum can seat against a clean, even braking surface. Confirm the vehicle is one of the listed fitments before ordering, especially for 2001-2005 Toyota Camry USA-made vehicles.
Quality Assurance
Raybestos R-Line parts are positioned as application-specific replacement components for brake service. The 9731R is identified by manufacturer part number and fitment data for 2001-2005 Toyota Camry rear and 2002-2003 Toyota Solara rear applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2005 | Toyota | Camry | Rear | Fits USA-made vehicles.; R-Line |
| 2004 | Toyota | Camry | Rear | Fits USA-made vehicles.; R-Line |
| 2003 | Toyota | Camry | Rear | Fits USA-made vehicles.; R-Line |
| 2003 | Toyota | Solara | Rear | R-Line |
| 2002 | Toyota | Camry | Rear | Fits USA-made vehicles.; R-Line |
| 2002 | Toyota | Solara | Rear | R-Line |
| 2001 | Toyota | Camry | Rear | Fits USA-made vehicles.; R-Line |
| No rows match your filter. | ||||
