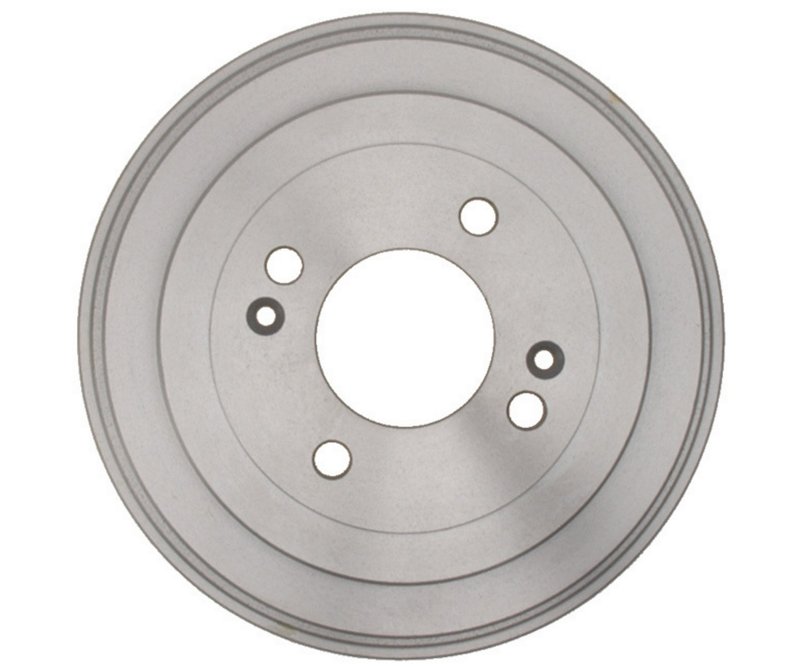

Raybestos 9776R Brake Drum - Rear
| Brand | Raybestos 9776R |
|---|---|
| Position | Rear |
| Inside Diameter | 203.000 |
| Inside Diameter | 7.992 |
| Outside Diameter | 0.377 |
| Outside Diameter | 9.600 |
| Depth | 1.594 |
| Depth | 40.500 |
| Outer Cooling Fins | No |
| Stud/Lug Hole Quantity | 4 |
| Stud/Lug Hole Diameter | 0.487 |
| Stud/Lug Hole Diameter | 12.350 |
| Product line | R-Line |
| Fits | Hyundai and Kia · 17 vehicles |
Brake drum replacement. Built for dependable stopping performance.
R-Line quality. Raybestos engineering for consistent braking.
Cross-references Centric Parts 122.51013, Centric Parts 123.51013 and DuraGo BD920116 for the same application. See all 16.
Rear Brake Drum for Hyundai Accent and Kia Rio
Raybestos R-Line brake drum 9776R is a rear drum brake replacement built to match the listed OE-style dimensions for select Hyundai and Kia applications. It is sized for vehicles that use a 7.992 in. inside diameter and a 9.600 in. outside diameter, with a 1.594 in. depth and four lug holes.
Key Features
- Rear brake drum for select compact cars
- Inside diameter: 7.992 in. (203.000 mm)
- Outside diameter: 9.600 in. (0.377 in. listed in the supplied data)
- Depth: 1.594 in. (40.500 mm)
- Four stud/lug holes with 0.487 in. (12.350 mm) diameter
- No outer cooling fins
- Raybestos R-Line part number 9776R
R-Line Product Line
Raybestos R-Line focuses on direct replacement brake components for everyday service work. For this brake drum, the line emphasizes OE-style fitment dimensions and straightforward application coverage for rear drum brake systems on the listed Hyundai Accent, Kia Rio, and Kia Rio5 models.
Detailed Description
Raybestos 9776R is a rear brake drum for 2007-2011 Hyundai Accent, 2006-2011 Kia Rio, and 2006-2011 Kia Rio5 applications. The drum’s 7.992 in. inside diameter, 9.600 in. outside diameter, and 1.594 in. depth are the core measurements used to match the brake assembly geometry on these vehicles. This part cross-references DuraGo BD920116 and Wagner Brake BD126473E for the same application. If you are replacing a worn rear drum on a Hyundai Accent or Kia Rio platform, 9776R provides the dimensional specifications needed for a direct service replacement.
Common Reasons for Replacement
- Rear brake drum wear from normal braking use
- Out-of-round drum condition that affects pedal feel
- Brake pulsation or noise from drum surface damage
- Reduced braking performance caused by scoring or heat wear
- Service replacement during rear brake maintenance on Accent, Rio, or Rio5 models
Installation Notes and Tips
Verify rear drum brake measurements before installation, including inside diameter, lug-hole pattern, and overall depth. Confirm the vehicle application by year, make, and model: Fits 2007-2011 Hyundai Accent, rear; Fits 2006-2011 Kia Rio, rear; Fits 2006-2011 Kia Rio5, rear. Inspect related rear brake components for wear and clean the hub mounting surface before installing the new drum. Always compare the removed part to the replacement to confirm proper brake drum fitment.
Quality Assurance
Raybestos is a recognized brake parts brand with coverage across service replacement applications. Raybestos R-Line parts are built around application-specific dimensions for routine brake service on listed vehicles.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2011 | Hyundai | Accent | Rear | R-Line |
| 2011 | Kia | Rio | Rear | R-Line |
| 2011 | Kia | Rio5 | Rear | R-Line |
| 2010 | Hyundai | Accent | Rear | R-Line |
| 2010 | Kia | Rio | Rear | R-Line |
| 2010 | Kia | Rio5 | Rear | R-Line |
| 2009 | Hyundai | Accent | Rear | R-Line |
| 2009 | Kia | Rio | Rear | R-Line |
| 2009 | Kia | Rio5 | Rear | R-Line |
| 2008 | Hyundai | Accent | Rear | R-Line |
| 2008 | Kia | Rio | Rear | R-Line |
| 2008 | Kia | Rio5 | Rear | R-Line |
| 2007 | Hyundai | Accent | Rear | R-Line |
| 2007 | Kia | Rio | Rear | R-Line |
| 2007 | Kia | Rio5 | Rear | R-Line |
| 2006 | Kia | Rio | Rear | R-Line |
| 2006 | Kia | Rio5 | Rear | R-Line |
