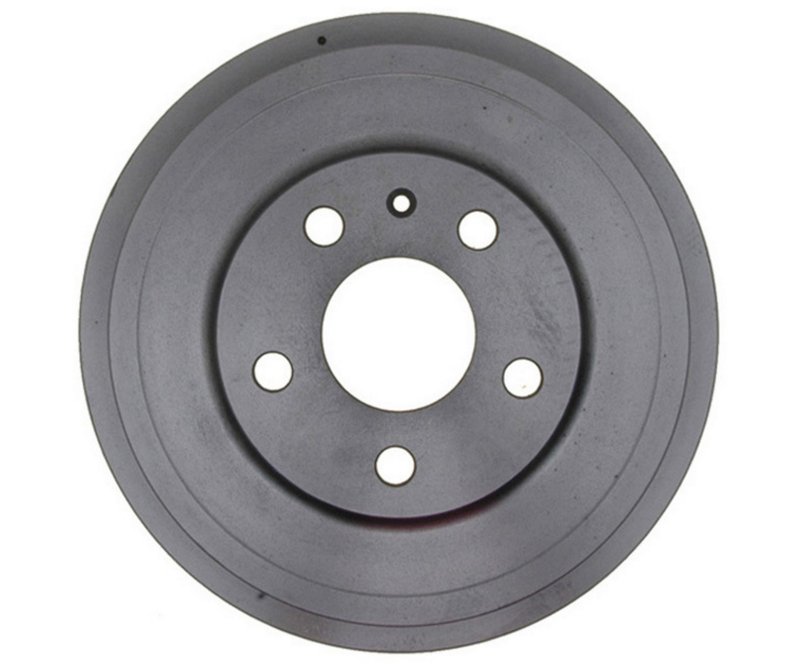

Raybestos 97824R Brake Drum - Rear
| Brand | Raybestos 97824R |
|---|---|
| Position | Rear |
| Depth | 1.563 |
| Depth | 39.700 |
| Inside Diameter | 9.055 |
| Inside Diameter | 230.000 |
| Outside Diameter | 0.449 |
| Outside Diameter | 11.400 |
| Stud/Lug Hole Diameter | 0.620 |
| Stud/Lug Hole Diameter | 15.750 |
| Stud/Lug Hole Quantity | 5 |
| Product line | R-Line |
| Fits | Volkswagen · 3 vehicles |
Brake drum replacement. A direct-fit drum for straightforward service replacement.
Precision-machined design. Helps deliver consistent braking contact and smooth operation.
R-Line quality. Raybestos R-Line brings trusted brake expertise to the part.
Cross-references Centric Parts 122.33020, Centric Parts 123.33020 and Dorman - HELP 80124 for the same application. See all 11.
Rear Brake Drum for Volkswagen Fitment
The Raybestos R-Line 97824R brake drum is built for rear brake service on select Volkswagen applications. With a 230.000 mm inside diameter, 11.400 in outside diameter, and 39.700 mm depth, it matches the dimensional requirements for the listed rear drum brake setups on the 2011-2012 Volkswagen Jetta and 2012 Volkswagen Beetle.
Key Features
- Brake drum for rear position applications
- Inside diameter: 230.000 mm / 9.055 in
- Outside diameter: 11.400 in
- Depth: 39.700 mm / 1.563 in
- 5 stud/lug holes with 15.750 mm hole diameter
- Raybestos R-Line part number 97824R
R-Line Product Line Details
Raybestos R-Line covers everyday brake service parts for drivers who need direct-fit replacement components. The 97824R brake drum follows the listed OE-style dimensions and mounting pattern for rear brake drum applications on Volkswagen Jetta and Volkswagen Beetle models.
Detailed Description
Use the Raybestos 97824R when replacing a worn or out-of-spec rear brake drum on the 2012 Volkswagen Beetle, 2012 Volkswagen Jetta, or 2011 Volkswagen Jetta with the noted VIN requirement. This brake drum is sized for the rear axle and uses a 5-lug pattern, making it a direct match for the specified vehicle fitment. This part cross-references Dorman - HELP 80124 and DuraGo BD920164 for the same application.
What It Helps Solve
- Rear brake pulsation caused by drum wear or scoring
- Brake noise related to uneven drum surfaces
- Reduced braking consistency from out-of-round drums
- Parking brake performance issues tied to drum condition
- Fitment problems when replacing a rear drum with the wrong diameter or depth
Installation Notes and Tips
Verify rear fitment before installation. Fits 2012 Volkswagen Beetle, rear. Fits 2012 Volkswagen Jetta, rear. Fits 2011 Volkswagen Jetta, rear, with seventh and eighth VIN digits of 16. Confirm the drum dimensions, lug-hole count, and vehicle brake configuration against the removed part before assembly. Clean the hub and inspect related brake components during service to help ensure proper seating and operation.
Quality Assurance
Raybestos manufactures brake components for service replacement applications, and the R-Line 97824R is specified with the listed dimensions and interchange references for accurate identification. Part number 97824R is also listed under Raybestos Brakes 97824R.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2012 | Volkswagen | Beetle | Rear | R-Line |
| 2012 | Volkswagen | Jetta | Rear | R-Line |
| 2011 | Volkswagen | Jetta | Rear | Seventh and Eighth Digit of VIN is 16; R-Line |
