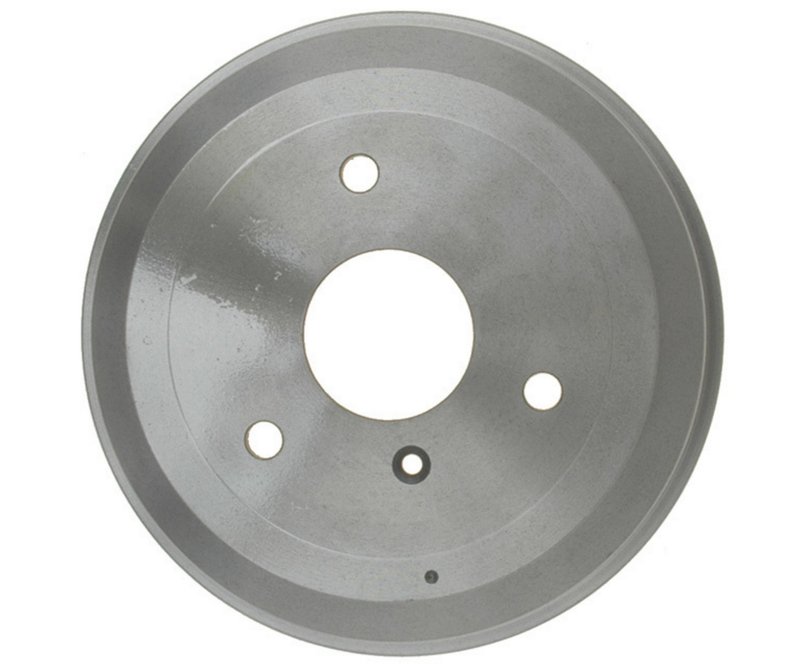

Raybestos 9785R Brake Drum - Rear
| Brand | Raybestos 9785R |
|---|---|
| Position | Rear |
| Inside Diameter | 203.100 |
| Inside Diameter | 7.996 |
| Outside Diameter | 0.364 |
| Outside Diameter | 9.250 |
| Depth | 1.450 |
| Depth | 36.850 |
| Outer Cooling Fins | No |
| Stud/Lug Hole Quantity | 3 |
| Stud/Lug Hole Diameter | 0.495 |
| Stud/Lug Hole Diameter | 12.550 |
| Product line | R-Line |
| Fits | Smart · 11 vehicles |
Brake drum. Replacement drum for dependable braking performance.
R-Line quality. Raybestos line built for consistent, everyday service.
Cross-references Beck/Arnley 083-3038, Centric Parts 122.35000 and Dorman - HELP 80126 for the same application. See all 12.
Raybestos R-Line Brake Drum for Smart Fortwo
The Raybestos R-Line brake drum, part number 9785R, is built for rear brake service on select Smart Fortwo models. It matches the application-specific dimensions needed for a proper drum brake replacement, including a 7.996 in. inside diameter, 9.250 in. outside diameter, and 1.450 in. depth.
For Smart Fortwo rear brake repairs, this drum provides a direct-fit service part for 2005-2006 and 2008-2016 vehicles. The Raybestos 9785R is a practical choice when restoring braking performance, addressing wear, scoring, or out-of-round drum conditions.
Key Features
- Brake drum for rear axle applications
- Inside diameter: 203.100 mm / 7.996 in.
- Outside diameter: 9.250 in.
- Depth: 36.850 mm / 1.450 in.
- 3 stud/lug holes with 12.550 mm diameter
- No outer cooling fins
- Raybestos R-Line replacement part number 9785R
Product Details
The R-Line product line from Raybestos focuses on service replacement parts for everyday brake maintenance. This brake drum is specified for rear use on Smart Fortwo models and is dimensioned to match the listed application, helping maintain correct shoe contact and drum geometry during brake service. If you are searching for a rear brake drum for a 2008-2016 Smart Fortwo or a 2005-2006 Smart Fortwo, part number 9785R is the cataloged fitment.
This part cross-references Beck/Arnley 083-3038 and Dorman - HELP 80126 for the same application.
Common Repair Uses
- Replacing a worn or scored rear brake drum
- Correcting brake pulsation caused by drum wear
- Restoring proper rear brake shoe contact
- Addressing noise from an out-of-spec drum surface
- Servicing rear brakes on Smart Fortwo vehicles
Installation Notes
Verify drum dimensions and lug-hole pattern before installation. Inspect rear brake shoes, wheel cylinders, and hardware condition during service, and clean the hub mounting surface so the drum seats evenly. After installation, confirm smooth rotation and proper brake adjustment according to the vehicle service procedure.
Quality Assurance
Raybestos manufactures the R-Line as a service replacement brake line for routine repair work. Part number 9785R is cataloged for the listed Smart Fortwo rear applications and should be matched to the vehicle by year, model, and position before installation.
| Year | Make | Model | Fuel Type | Position | Notes |
|---|---|---|---|---|---|
| 2016 | Smart | Fortwo | ELECTRIC | Rear | R-Line |
| 2015 | Smart | Fortwo | — | Rear | R-Line |
| 2014 | Smart | Fortwo | — | Rear | R-Line |
| 2013 | Smart | Fortwo | — | Rear | R-Line |
| 2012 | Smart | Fortwo | — | Rear | R-Line |
| 2011 | Smart | Fortwo | — | Rear | R-Line |
| 2010 | Smart | Fortwo | — | Rear | R-Line |
| 2009 | Smart | Fortwo | — | Rear | R-Line |
| 2008 | Smart | Fortwo | — | Rear | R-Line |
| 2006 | Smart | Fortwo | — | Rear | R-Line |
| 2005 | Smart | Fortwo | — | Rear | R-Line |
