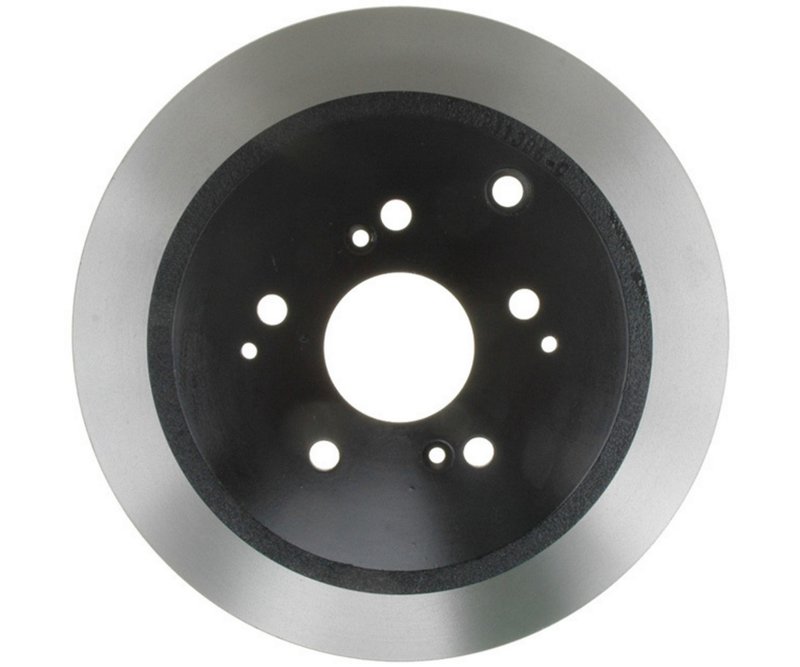

Raybestos 980032 Disc Brake Rotor - Rear
OE Quality 60-Day Returns
Raybestos
 Specialty - Truck

Raybestos 980032 Disc Brake Rotor - Rear

Brand Raybestos 980032
Position Rear
Discard Thickness 0.374
Discard Thickness 9.500
Nominal Thickness 0.435
Nominal Thickness 11.050
Overall Height 2.195
Overall Height 55.750
Outside Diameter 12.330
Outside Diameter 313.200
Mounting Bolt Hole Quantity 5
Solid Or Vented Type Rotor Vented
Center Hole Diameter 2.525
Center Hole Diameter 64.150
Mounting Bolt Hole Circle Diameter 114.300
Mounting Bolt Hole Circle Diameter 4.500
Mounting Bolt Hole Diameter 0.495
Mounting Bolt Hole Diameter 12.550
Stud/Lug Hole Quantity 5
Conventional Or Drum-In-Hat Type Rotor Drum-in-hat
Product line Specialty - Truck
Fits Acura and Honda · 12 vehicles

Vented design. Promotes airflow for more consistent braking performance.

Drum-in-hat rotor. Combines rotor and drum functions in one compact design.

Specialty truck line. Built for demanding brake applications.

Cross-references Beck/Arnley 083-2926, Bosch 26010746 and Centric Parts 120.40053 for the same application. See all 57.

$90.50Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $90.50
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Rear Disc Brake Rotor for Acura MDX and Honda Pilot

Restore rear braking performance with the Raybestos Specialty - Truck disc brake rotor, part number 980032. This vented drum-in-hat rotor is built to match the fitment and dimensions needed for select Acura MDX and Honda Pilot rear brake applications.

Key Features

  • Part number 980032 from Raybestos Specialty - Truck
  • Rear disc brake rotor for select Acura MDX and Honda Pilot models
  • Vented rotor design for rear brake service
  • Drum-in-hat configuration
  • Outside diameter: 12.330 in. / 313.200 mm
  • Nominal thickness: 0.435 in. / 11.050 mm
  • Discard thickness: 0.374 in. / 9.500 mm
  • Overall height: 2.195 in. / 55.750 mm
  • 5-lug mounting pattern with 4.500 in. bolt circle diameter
  • Center hole diameter: 2.525 in. / 64.150 mm

Detailed Description

Raybestos 980032 is a rear disc brake rotor engineered for vehicles that use a vented, drum-in-hat rear rotor design. The rotor measures 12.330 inches in outside diameter, 0.435 inches nominal thickness, and 2.195 inches overall height, with a 5-bolt mounting pattern and 4.500-inch bolt circle diameter. These dimensions are important for proper rotor seating, brake balance, and consistent rear brake service on the Acura MDX and Honda Pilot.

Compatible With 2001-2006 Acura MDX, rear and 2003-2008 Honda Pilot, rear. This part cross-references Beck/Arnley 083-2926 and Bosch 26010746 for the same application. The Raybestos Specialty - Truck line is aimed at truck and SUV brake applications where correct rotor geometry and fitment are critical.

What This Rotor Helps Address

  • Rear brake pulsation caused by worn or out-of-spec rotors
  • Brake noise related to rotor wear or uneven braking surfaces
  • Reduced braking consistency from excessive rotor thickness loss
  • Fitment issues when replacing a drum-in-hat rear rotor
  • Service needs on rear brake systems for Acura MDX and Honda Pilot

Installation Notes and Tips

Verify rotor dimensions, bolt pattern, and drum-in-hat configuration before installation. Clean the hub mounting surface thoroughly to help the rotor seat evenly, and inspect pads, calipers, and parking brake components during service. For best results, confirm rear fitment against the vehicle year and model before ordering part number 980032.

Quality Assurance

Raybestos is a recognized brake brand with coverage across specialty truck and SUV applications. This rotor is built to the listed dimensional specifications for direct rear brake replacement on confirmed fitment vehicles.

Related reading

This part fits 12 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2008HondaPilotRearSpecialty - Truck
2007HondaPilotRearSpecialty - Truck
2006AcuraMDXRearSpecialty - Truck
2006HondaPilotRearSpecialty - Truck
2005AcuraMDXRearSpecialty - Truck
2005HondaPilotRearSpecialty - Truck
2004AcuraMDXRearSpecialty - Truck
2004HondaPilotRearSpecialty - Truck
2003AcuraMDXRearSpecialty - Truck
2003HondaPilotRearSpecialty - Truck
2002AcuraMDXRearSpecialty - Truck
2001AcuraMDXRearSpecialty - Truck
Directly replaces or cross-references 57 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Beck/Arnley — 083-2926Bosch — 26010746Centric Parts — 120.40053Centric Parts — 121.40053Centric Parts — 320.40053Dorman - HELP — 25828DuraGo — BR31318Gates — 31318PowerStop — JBR960PowerStop — JBR960EVCPromax — 14-31318Raybestos Brakes — 980032Raybestos Brakes — 980032FZNRaybestos Brakes — 980032PERRaybestos Brakes — 980032RStopTech — 126.40053SLStopTech — 126.40053SRStopTech — 127.40053LStopTech — 127.40053RStopTech — 128.40053CLStopTech — 128.40053LStopTech — 128.40053RStopTech — 227.40053LStopTech — 227.40053RWagner Brake — BD126051E08.B437.1020-3131889-08056120.40053CRY126.40053CSL126.40053CSR128.40053CR321.4005331318DG31318DL42510S3VA0147701126051145393211386-C325614571260661512980032RGS80980032AX31318BD126051BR90056BR3131802JBR960EN100087849BRCPS126051QBRR63X51431YH145393YH145393CYH145393P
