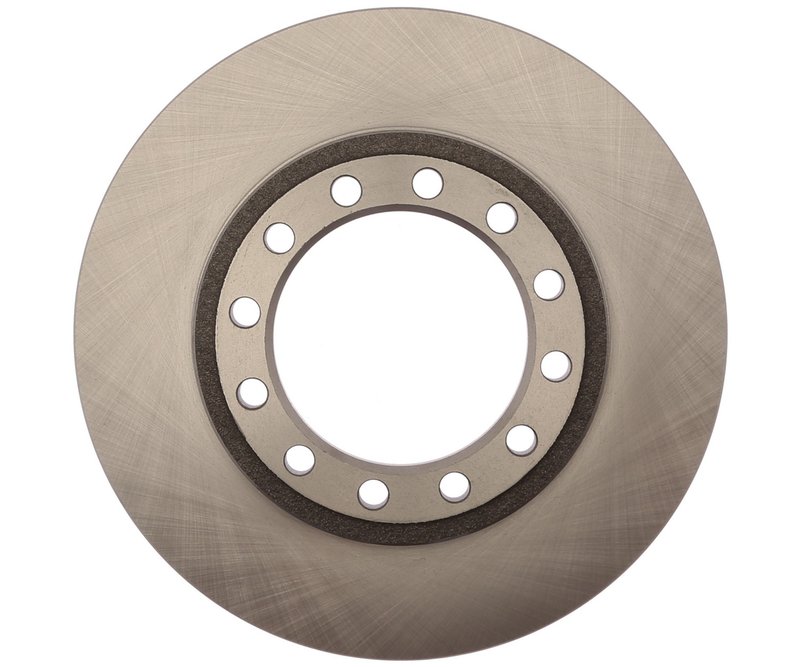

Raybestos 980051R Disc Brake Rotor - Front

Raybestos R-Line Front Brake Rotor for ELF 200

The Raybestos R-Line 980051R is a vented disc brake rotor built for front axle service on select Isuzu ELF 200 applications. With a 11.540-inch outside diameter, 12 mounting bolt holes, and a conventional drum-in-hat style rotor design, it matches the dimensional requirements needed for proper brake system fitment and rotor replacement.

For 2015-2017 Isuzu ELF 200 front brake service, this rotor provides the key dimensions technicians use to verify hub and wheel interface, including a 4.332-inch center hole diameter and a 5.354-inch bolt circle diameter. The Raybestos R-Line 980051R is also cross-referenced to Raybestos Brakes 980051 for the same application.

Key Features

• Raybestos R-Line disc brake rotor for front axle applications
• Fits 2015-2017 Isuzu ELF 200, front
• Vented rotor construction for brake heat management
• 11.540-inch outside diameter for application-specific fitment
• 12 mounting bolt holes and 12 stud/lug holes
• Conventional rotor design for standard brake service
• Nominal thickness: 1.575 inches; discard thickness: 1.457 inches
• Overall height: 2.265 inches

Detailed Description

Raybestos R-Line 980051R is a front disc brake rotor engineered around the published dimensions for select Isuzu ELF 200 trucks from 2015 through 2017. The vented design supports airflow through the rotor body, while the 293.100 mm outside diameter, 110.050 mm center hole diameter, and 136.000 mm bolt circle diameter help ensure the rotor matches the original mounting geometry. This part number, 980051R, is a direct fitment-focused replacement for front brake rotor service on the listed vehicle applications.

The Raybestos R-Line line is positioned as a practical brake service range for everyday repair work, with attention to dimensional accuracy and consistent rotor specifications. If you are replacing a worn or damaged front rotor on an Isuzu ELF 200, 980051R gives you the core measurements needed to confirm the correct brake hardware before installation.

What This Rotor Helps Address

• Brake pulsation caused by rotor wear or thickness variation
• Scoring, grooves, or heat checking on the braking surface
• Reduced braking consistency from a worn front rotor
• Rotor replacement needs during front brake service
• Fitment issues when the original rotor dimensions no longer match

Installation Notes and Tips

Verify the vehicle’s front brake rotor dimensions, bolt pattern, and center bore before installation. Confirm that the hub face is clean and free of rust or debris so the rotor seats correctly. Measure the existing rotor against the listed discard thickness of 1.457 inches and nominal thickness of 1.575 inches when evaluating replacement needs. For best results, inspect related brake components during service and follow the vehicle manufacturer’s torque specifications.

Quality Assurance

Raybestos is a recognized brake parts brand with a broad aftermarket catalog, and the R-Line product line covers service replacement brake components for common repair needs. This rotor is specified to the published application data for 2015-2017 Isuzu ELF 200 front brake service.
