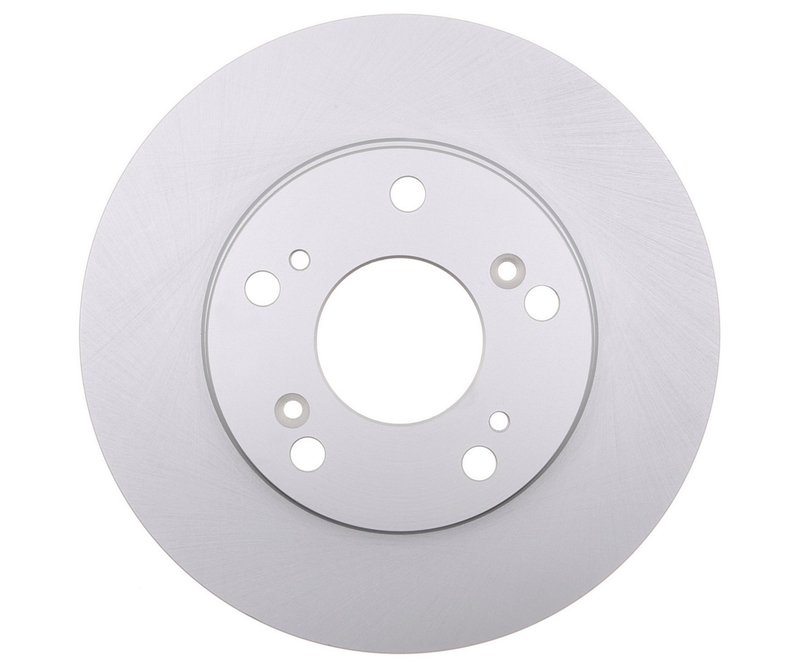

Raybestos 980059FZN Disc Brake Rotor - Front

Raybestos Element3 Coated Rotor Overview

The Raybestos Element3; Coated Rotor 980059FZN is engineered for reliable braking performance on select Acura and Honda models. Designed as a vented disc brake rotor, it offers consistent heat dissipation and durability for vehicles like the Honda Civic, CR-Z, and Acura RSX.

• Compatible with Acura and Honda Civic, CR-Z, RSX models
• Part number 980059FZN for precise identification
• Vented disc brake rotor design for improved cooling
• Coated surface to resist corrosion and extend rotor life
• 5 mounting bolt holes and 5 lug holes for secure fitment
• Nominal thickness of 0.827 inches (21.000 mm) with discard thickness at 0.748 inches (19.000 mm)
• Overall height of 1.854 inches (47.100 mm) and outside diameter of 10.303 inches (261.700 mm)
• Smooth surface type for consistent brake pad contact

Product Line Details: Element3; Coated Rotor

The Element3; Coated Rotor line by Raybestos focuses on providing rotors with a protective coating that helps prevent rust and corrosion, which is critical for maintaining braking efficiency over time. This coating enhances the rotor's durability without compromising braking performance, making it suitable for daily driving conditions on Acura and Honda vehicles.

Technical Specifications and Features

This disc brake rotor features a vented design that improves heat dissipation during braking, reducing the risk of brake fade. The rotor's nominal thickness is 0.827 inches (21.000 mm), with a discard thickness of 0.748 inches (19.000 mm), ensuring it meets safety standards for replacement. The overall height measures 1.854 inches (47.100 mm), and the outside diameter is 10.303 inches (261.700 mm), matching OEM specifications for a proper fit. The rotor includes 5 mounting bolt holes and 5 lug holes, with a mounting bolt hole circle diameter of 4.500 inches (114.300 mm) and mounting bolt hole diameter of 0.496 inches (12.600 mm). The smooth surface type ensures even pad wear and consistent braking response.

Applications and Problem Solving

• Replacement for worn or warped rotors on Acura RSX, Honda Civic, and CR-Z
• Addresses brake noise and vibration caused by uneven rotor surfaces
• Helps restore braking performance diminished by rotor corrosion or pitting
• Prevents premature rotor wear through corrosion-resistant coating
• Improves heat management to reduce brake fade during extended use

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness (0.748 inches) before installation
• Clean mounting surfaces to prevent uneven rotor seating
• Torque mounting bolts to manufacturer specifications for secure fitment
• Inspect brake pads for wear and replace if necessary to ensure optimal contact
• Perform a bed-in procedure after installation to maximize braking efficiency

Quality Assurance and Warranty

Raybestos rotors, including the Element3; Coated Rotor 980059FZN, are manufactured to meet or exceed OEM standards for fit, form, and function. The protective coating helps extend rotor life by resisting rust and corrosion. While specific warranty details are not provided here, Raybestos products typically come with a limited warranty against defects in materials and workmanship. Always refer to the product packaging or manufacturer documentation for exact warranty terms.
