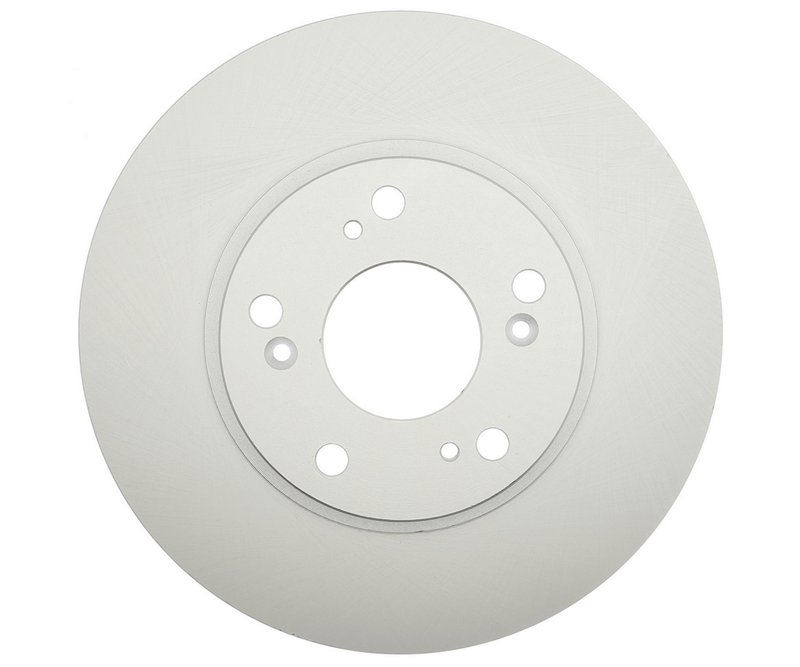

Raybestos 980072FZN Disc Brake Rotor - Front

Overview of Raybestos Element3 Coated Rotor for Honda CR-V

The Raybestos Element3; Coated Rotor 980072FZN is engineered for reliable braking performance on Honda CR-V models. This solid disc brake rotor is designed to meet precise specifications, ensuring compatibility and durability for your vehicle's braking system.

• Compatible with Honda CR-V models
• Part number: 980072FZN
• Solid disc brake rotor design
• Coated surface for corrosion resistance
• 5 mounting bolt holes with 114.3 mm bolt circle diameter
• Nominal thickness of 0.905 inches (23.0 mm)
• Discard thickness of 0.827 inches (21.0 mm)
• Overall height of 1.860 inches (47.25 mm)
• Outside diameter of 11.090 inches (281.7 mm)
• Center hole diameter of 2.526 inches (64.15 mm)

Raybestos Element3; Coated Rotor Product Line Details

The Element3; Coated Rotor line from Raybestos focuses on providing rotors with a protective coating to reduce rust and corrosion, extending the rotor's service life. This coating helps maintain consistent braking performance and appearance over time. The 980072FZN rotor is a solid type, conventional design, suitable for applications requiring durability and reliable stopping power.

Technical Specifications and Features

This disc brake rotor features a solid construction with a nominal thickness of 0.905 inches (23.0 mm) and a discard thickness of 0.827 inches (21.0 mm), indicating the minimum thickness before replacement is necessary. The rotor's overall height measures 1.860 inches (47.25 mm), and it has an outside diameter of 11.090 inches (281.7 mm). It includes five mounting bolt holes arranged on a 114.3 mm (4.5 inch) bolt circle diameter, with each bolt hole measuring 0.495 inches (12.55 mm) in diameter. The center hole diameter is 2.526 inches (64.15 mm), designed to fit securely on the hub of compatible Honda CR-V vehicles.

Applications and Problem Solving

• Replacement for worn or warped rotors on Honda CR-V
• Addresses brake pulsation and vibration issues
• Helps restore proper braking performance and pedal feel
• Prevents corrosion-related rotor damage with coated surface
• Suitable for routine maintenance and brake system repairs

Installation Notes and Tips

Ensure the rotor thickness is measured before installation to confirm it meets or exceeds the nominal thickness of 0.905 inches (23.0 mm). Clean the hub surface and mounting bolts to prevent uneven rotor seating. Torque mounting bolts to manufacturer specifications. The coated surface should be handled carefully to avoid damage before installation. It is recommended to replace brake pads when installing new rotors to ensure optimal braking performance.

Quality Assurance and Warranty

Raybestos rotors, including the Element3; Coated Rotor 980072FZN, are manufactured to meet or exceed OEM standards for fit, form, and function. The coating provides additional protection against rust and corrosion, contributing to longer service life. Warranty coverage details should be confirmed with the product documentation or supplier.
