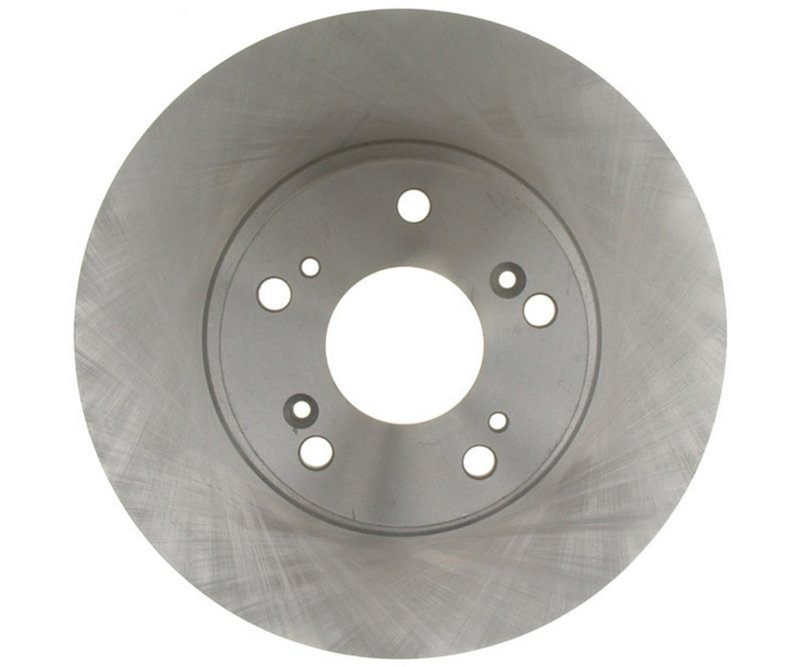

Raybestos 980072R Disc Brake Rotor - Front

Overview of Raybestos R-Line Disc Brake Rotor 980072R

The Raybestos R-Line Disc Brake Rotor 980072R is engineered for reliable braking performance on Honda CR-V models. This solid rotor is designed to meet precise specifications, ensuring consistent stopping power and durability for your vehicle.

• Compatible with Honda CR-V models
• Part number 980072R for accurate identification
• Solid disc brake rotor design
• Overall height: 1.860 inches (47.250 mm)
• Outside diameter: 11.090 inches (281.700 mm)
• Mounting bolt hole quantity: 5
• Mounting bolt hole circle diameter: 4.500 inches (114.300 mm)
• Center hole diameter: 2.526 inches (64.150 mm)
• Nominal thickness: 0.905 inches (23.000 mm)
• Discard thickness: 0.827 inches (21.000 mm)

Raybestos R-Line Product Line Details

The R-Line by Raybestos focuses on delivering dependable brake components that meet or exceed OEM specifications. This product line emphasizes solid rotors designed for conventional braking systems, providing consistent performance and fitment for vehicles like the Honda CR-V. The 980072R rotor is part of this line, offering a balance of durability and precision engineering.

Technical Specifications and Features

This disc brake rotor features a solid design, which is typical for many Honda CR-V models requiring conventional rotors. The rotor measures 11.090 inches in outside diameter and has an overall height of 1.860 inches, ensuring proper fitment and clearance. It includes five mounting bolt holes with a circle diameter of 4.500 inches, matching the vehicle’s hub pattern. The center hole diameter of 2.526 inches allows for accurate centering on the hub. The nominal thickness of 0.905 inches provides sufficient material for wear, while the discard thickness of 0.827 inches indicates when the rotor should be replaced to maintain safe braking performance.

Applications and Problem Solving

• Replacement for worn or warped rotors on Honda CR-V
• Restores proper braking performance and pedal feel
• Addresses rotor thickness below manufacturer specifications
• Eliminates brake noise caused by uneven rotor surfaces
• Prevents brake pulsation due to rotor runout or damage

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness before installation
• Clean rotor surface to remove any protective coating or debris
• Torque mounting bolts to manufacturer specifications for secure fitment
• Inspect brake pads and replace if worn to ensure optimal braking
• Check hub surface for rust or debris to prevent rotor misalignment

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet strict quality standards, ensuring consistent dimensions and material integrity. While specific warranty details for part number 980072R should be confirmed with the supplier, Raybestos typically offers limited warranties covering defects in materials and workmanship. This rotor is designed to provide reliable service life when installed and maintained according to vehicle manufacturer guidelines.
