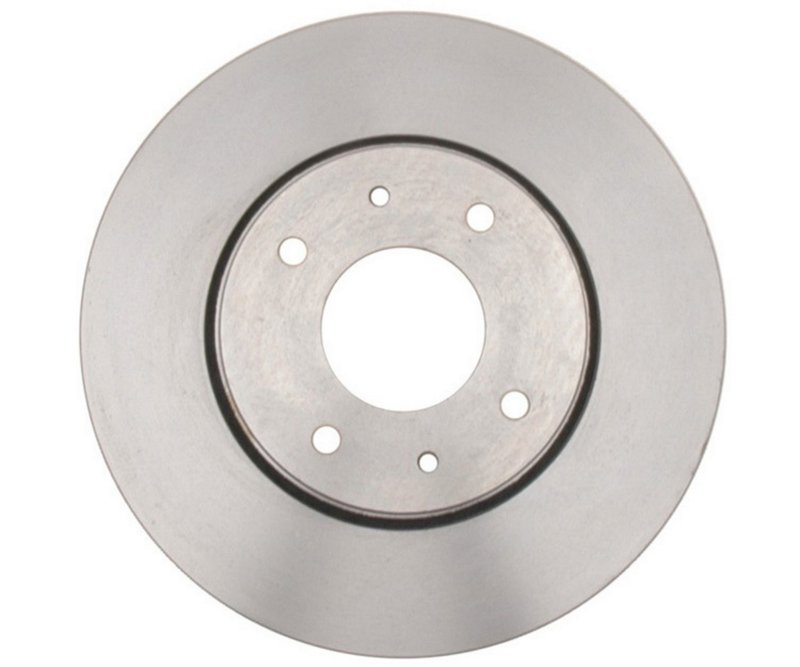

Raybestos 980084 Disc Brake Rotor - Front

Overview of Raybestos Specialty - Truck Disc Brake Rotor 980084

The Raybestos Specialty - Truck disc brake rotor 980084 is engineered for reliable braking performance on Volvo S40 and V40 models. Designed with precise dimensions and vented construction, this rotor supports consistent heat dissipation and durability under demanding conditions.

• Compatible with Volvo S40 and V40 vehicles
• Vented disc brake rotor for improved cooling
• Overall height: 1.791 inches (45.500 mm)
• Outside diameter: 11.063 inches (281.000 mm)
• Mounting bolt hole quantity: 4 with 0.487 inch (12.350 mm) diameter
• Center hole diameter: 2.717 inches (69.000 mm)
• Nominal thickness: 0.945 inches (24.000 mm)
• Discard thickness: 0.846 inches (21.500 mm)
• Conventional rotor type with 4 stud/lug holes

Detailed Product Description

This Raybestos disc brake rotor, part number 980084, is part of the Specialty - Truck product line, which focuses on components designed for truck and heavy-duty applications. The vented rotor design enhances heat dissipation, reducing the risk of brake fade during extended use. With a nominal thickness of 0.945 inches and a discard thickness of 0.846 inches, this rotor maintains structural integrity and safety throughout its service life. The rotor’s overall height of 1.791 inches and outside diameter of 11.063 inches ensure proper fitment and compatibility with Volvo S40 and V40 brake systems. The mounting bolt hole circle diameter measures 4.5 inches (114.300 mm), accommodating 4 mounting bolts with a diameter of 0.487 inches, providing secure installation.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Volvo S40 and V40
• Addresses brake noise caused by uneven rotor surfaces
• Improves braking performance by restoring proper rotor thickness
• Reduces brake fade through vented rotor design
• Prevents vibration issues related to rotor runout

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness before installation
• Clean mounting surfaces to prevent uneven rotor seating
• Torque mounting bolts to manufacturer specifications
• Inspect brake pads for wear and replace if necessary
• Check for proper rotor alignment to avoid brake pulsation

Quality Assurance and Warranty

Raybestos Specialty - Truck rotors are manufactured to meet strict quality standards for durability and performance. This disc brake rotor 980084 undergoes rigorous testing to ensure compatibility and reliability with Volvo S40 and V40 models. Warranty coverage details should be confirmed with the product documentation or manufacturer.
