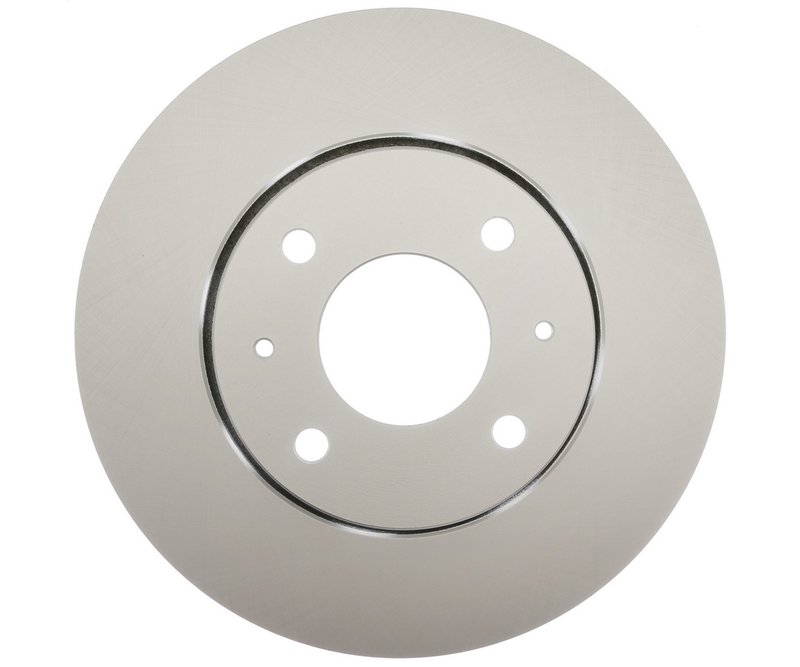

Raybestos 980084FZN Disc Brake Rotor - Front

Overview of Raybestos Element3 Coated Rotor 980084FZN

The Raybestos Element3; Coated Rotor 980084FZN is engineered for reliable braking performance on Volvo S40 and V40 models. This vented disc brake rotor offers precise fitment and durability, designed to meet the specific requirements of these vehicles.

• Compatible with Volvo S40 and V40 models
• Part number 980084FZN for exact replacement
• Vented disc brake rotor design for improved heat dissipation
• Overall height: 1.791 inches (45.5 mm)
• Outside diameter: 11.063 inches (281 mm)
• Nominal thickness: 0.945 inches (24 mm)
• Discard thickness: 0.846 inches (21.5 mm)
• Mounting bolt hole quantity: 4 with 0.487 inch (12.35 mm) diameter
• Center hole diameter: 2.717 inches (69 mm)
• Conventional rotor type with drum-in-hat design

Raybestos Element3; Coated Rotor Product Line

The Element3; Coated Rotor line from Raybestos focuses on corrosion resistance and consistent braking performance. The coating helps protect the rotor surface from rust and environmental damage, extending the service life of the rotor. This product line is designed to provide a balance of durability and performance for vehicles like the Volvo S40 and V40, ensuring reliable stopping power under various driving conditions.

Technical Details and Specifications

This disc brake rotor features a vented design that enhances heat dissipation during braking, reducing the risk of brake fade. The nominal thickness of 0.945 inches (24 mm) ensures structural integrity, while the discard thickness of 0.846 inches (21.5 mm) indicates the minimum safe thickness before replacement is necessary. The rotor's overall height measures 1.791 inches (45.5 mm), and the outside diameter is 11.063 inches (281 mm), matching the exact specifications required for Volvo S40 and V40 models. The rotor includes four mounting bolt holes with a circle diameter of 4.5 inches (114.3 mm) and a center hole diameter of 2.717 inches (69 mm), ensuring proper alignment and fitment.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Volvo S40 and V40
• Addresses brake noise caused by uneven rotor surfaces
• Improves braking performance by restoring proper rotor thickness
• Reduces brake fade through vented rotor design
• Prevents corrosion-related rotor damage with protective coating

Installation Notes and Tips

When installing the Raybestos 980084FZN rotor, ensure the mounting surface is clean and free of debris to maintain proper rotor alignment. Verify that the rotor thickness is above the discard thickness of 0.846 inches (21.5 mm) before installation. Use the correct torque specifications for the four mounting bolts to avoid rotor warping. It is recommended to replace brake pads simultaneously to ensure optimal braking performance and rotor longevity.

Quality Assurance and Warranty

Raybestos disc brake rotors are manufactured to meet or exceed OEM specifications for fit, form, and function. The Element3; Coated Rotor line includes a protective coating to resist corrosion and extend rotor life. While specific warranty details for part number 980084FZN should be confirmed with the supplier, Raybestos typically offers limited warranties covering defects in material and workmanship.
