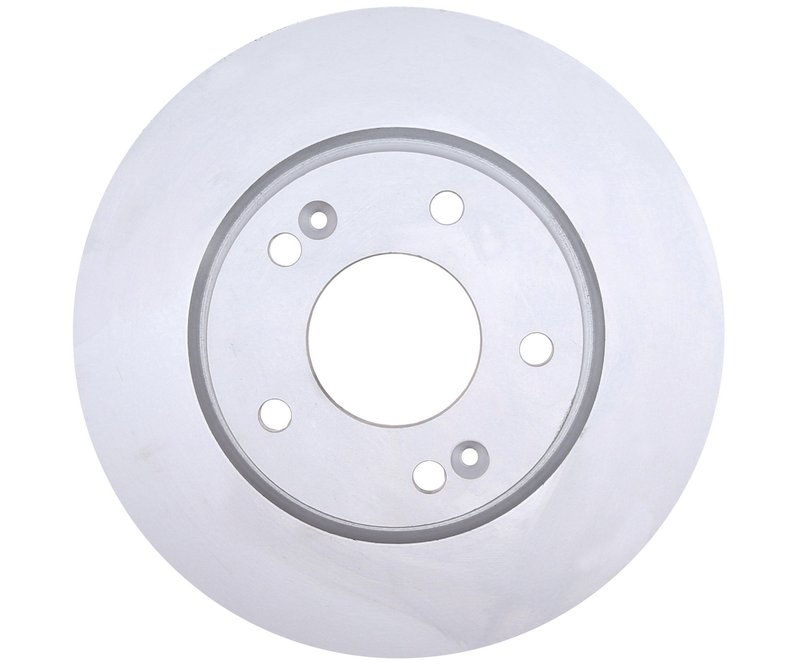

Raybestos 980090FZN Disc Brake Rotor - Front

Overview of Raybestos Element3 Coated Rotor 980090FZN

The Raybestos Element3; Coated Rotor 980090FZN is engineered for reliable braking performance on Hyundai Santa Fe models. This vented disc brake rotor is designed to meet precise specifications, ensuring consistent stopping power and durability.

• Compatible with Hyundai Santa Fe vehicles
• Vented disc brake rotor design for improved heat dissipation
• Overall height: 1.855 inches (47.100 mm)
• Outside diameter: 10.865 inches (275.950 mm)
• Mounting bolt hole quantity: 5 with 0.495 inch (12.550 mm) diameter
• Center hole diameter: 2.718 inches (69.050 mm)
• Nominal thickness: 1.025 inches (26.050 mm)
• Discard thickness: 0.961 inches (24.400 mm)
• Conventional rotor type with drum-in-hat design

Detailed Product Description

The Raybestos Element3; Coated Rotor 980090FZN is a vented disc brake rotor specifically designed for Hyundai Santa Fe models. Its vented construction helps dissipate heat more effectively during braking, reducing the risk of brake fade and maintaining consistent performance. The rotor features a nominal thickness of 1.025 inches (26.050 mm) and a discard thickness of 0.961 inches (24.400 mm), which are critical measurements to ensure safe and effective brake operation. The overall height of 1.855 inches (47.100 mm) and an outside diameter of 10.865 inches (275.950 mm) align with factory specifications for proper fitment and function.

This rotor includes five mounting bolt holes with a diameter of 0.495 inches (12.550 mm) and a bolt circle diameter of 4.500 inches (114.300 mm), matching the Hyundai Santa Fe’s hub assembly. The center hole diameter of 2.718 inches (69.050 mm) ensures precise centering on the vehicle’s hub. The conventional drum-in-hat rotor type is compatible with standard braking systems used on this model.

About the Element3; Coated Rotor Product Line

The Element3; Coated Rotor line by Raybestos offers rotors with a protective coating designed to resist corrosion and extend rotor life. This coating helps maintain rotor integrity and appearance over time, especially in environments prone to moisture and road salt exposure. The 980090FZN part benefits from this coating, providing a durable braking surface for Hyundai Santa Fe owners seeking reliable replacement parts.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Hyundai Santa Fe
• Addresses brake noise caused by uneven rotor surfaces
• Improves heat dissipation to reduce brake fade during heavy use
• Restores proper rotor thickness for safe braking performance
• Prevents corrosion-related rotor damage with coated surface

Installation Notes and Tips

• Verify rotor thickness before installation; replace if below discard thickness of 0.961 inches (24.400 mm)
• Ensure mounting surfaces are clean and free of debris for proper fitment
• Torque mounting bolts to manufacturer specifications to avoid rotor warping
• Inspect brake pads and hardware during rotor replacement for optimal system performance
• Follow Hyundai Santa Fe service manual guidelines for brake system maintenance

Quality Assurance and Warranty

Raybestos rotors, including the Element3; Coated Rotor 980090FZN, are manufactured to meet or exceed OEM standards for fit, form, and function. The protective coating enhances corrosion resistance, contributing to longer service life. While specific warranty details may vary, Raybestos typically offers limited warranties covering defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
