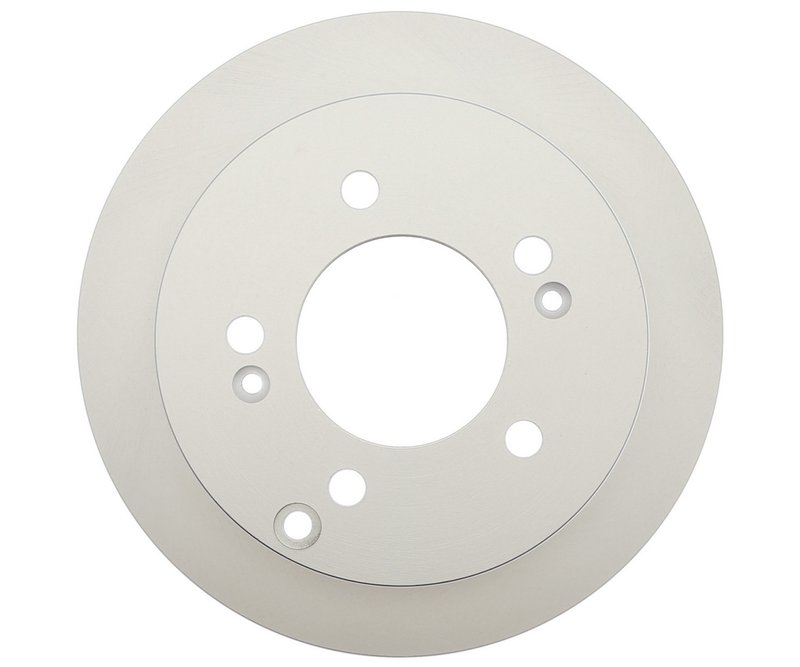

Raybestos 980095FZN Disc Brake Rotor - Rear

Reliable Disc Brake Rotor for Hyundai and Kia Vehicles

The Raybestos Element3; Coated Rotor 980095FZN is engineered to provide consistent braking performance for select Hyundai and Kia models. Designed as a vented, drum-in-hat type rotor, it meets precise specifications to ensure proper fit and function.

• Compatible with Hyundai Magentis, Sonata, Tucson and Kia Optima, Sportage, XG300, XG350
• Vented disc brake rotor with drum-in-hat design
• Outside diameter: 10.315 inches (262 mm)
• Nominal thickness: 0.394 inches (10.000 mm)
• Discard thickness: 0.331 inches (8.400 mm)
• Overall height: 2.402 inches (61.000 mm)
• Mounting bolt hole quantity: 5 with 114.3 mm bolt circle diameter
• Center hole diameter: 2.992 inches (76.000 mm)

About the Raybestos Element3; Coated Rotor Line

The Element3; Coated Rotor line from Raybestos features rotors with a protective coating designed to resist corrosion and extend service life. This coating helps maintain rotor integrity and appearance over time, making it suitable for vehicles exposed to varying road conditions. The 980095FZN rotor combines this coating with a vented design to improve heat dissipation during braking.

Technical Details and Specifications

This disc brake rotor is a vented type, which enhances cooling by allowing air to flow between the rotor surfaces. The drum-in-hat design integrates a parking brake drum within the rotor, compatible with vehicles requiring this configuration. The rotor measures 10.315 inches in outside diameter and has a nominal thickness of 0.394 inches, with a discard thickness of 0.331 inches indicating when replacement is necessary. The overall height is 2.402 inches, and it features five mounting bolt holes arranged on a 114.3 mm bolt circle diameter, ensuring proper fitment on specified Hyundai and Kia models.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Hyundai Magentis, Sonata, Tucson and Kia Optima, Sportage, XG300, XG350
• Addresses brake noise and vibration caused by rotor surface irregularities
• Improves braking performance by restoring proper rotor thickness and surface condition
• Prevents brake fade through enhanced heat dissipation with vented design
• Resolves corrosion-related rotor damage due to protective coating

Installation Notes and Tips

• Verify compatibility with vehicle make, model, and year before installation
• Inspect mounting surfaces and hardware for wear or damage during replacement
• Ensure rotor thickness is above discard thickness (0.331 inches) before installation
• Follow manufacturer torque specifications for mounting bolts
• Perform a brake system test after installation to confirm proper operation

Quality Assurance and Warranty

Raybestos rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The Element3; Coated Rotor 980095FZN undergoes rigorous quality control to ensure durability and performance. Warranty coverage details should be confirmed with the product documentation or manufacturer.
