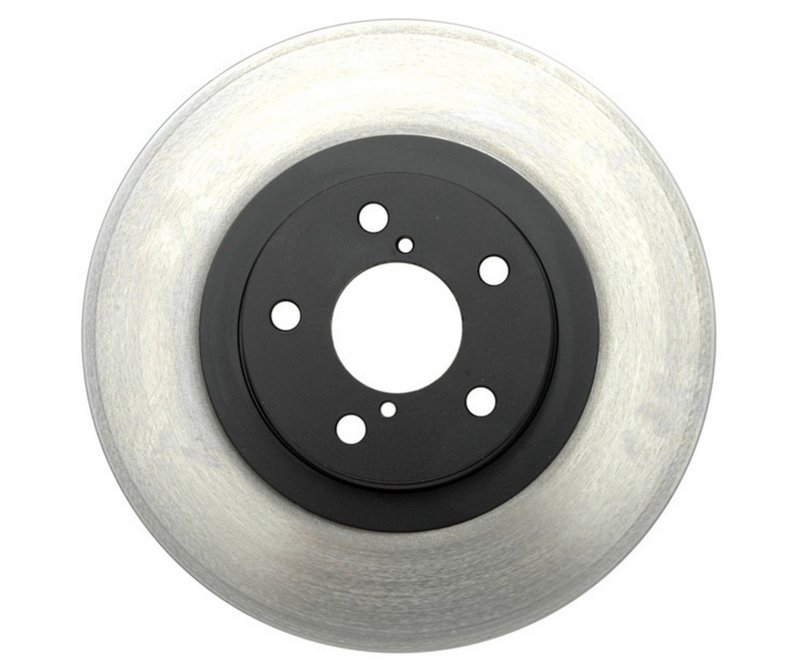

Raybestos 980141 Disc Brake Rotor - Front

Overview of Raybestos Specialty - Street Performance Rotor

The Raybestos Specialty - Street Performance disc brake rotor (Part Number 980141) is engineered for reliable braking performance on select Saab and Subaru models. Designed as a vented, conventional rotor, it offers consistent heat dissipation and durability for street driving conditions.

• Vented disc brake rotor for improved cooling
• Compatible with Saab 9-2X and Subaru models including Baja, Forester, Impreza, Legacy, and Outback
• Overall height: 2.230 inches (56.650 mm)
• Outside diameter: 11.545 inches (293.250 mm)
• Mounting bolt hole quantity: 5 with 100 mm (3.937 inch) bolt circle diameter
• Center hole diameter: 2.285 inches (58.050 mm)
• Nominal thickness: 0.945 inches (24.000 mm); discard thickness: 0.866 inches (22.000 mm)
• Conventional rotor type with 5 stud/lug holes

Detailed Product Description

This Raybestos disc brake rotor is part of the Specialty - Street Performance line, designed to meet the demands of street-driven vehicles requiring dependable braking under normal to moderately aggressive driving conditions. The vented design enhances heat dissipation, reducing the risk of brake fade during extended use. With a nominal thickness of 0.945 inches and a discard thickness of 0.866 inches, this rotor maintains structural integrity and safety throughout its service life. The rotor’s 11.545-inch outside diameter and 2.230-inch overall height ensure proper fitment and compatibility with the specified Saab and Subaru models.

Compatible Vehicles and Applications

• Saab 9-2X
• Subaru Baja
• Subaru Forester
• Subaru Impreza
• Subaru Legacy
• Subaru Outback

This rotor is intended for use in front or rear disc brake systems where a conventional vented rotor is specified. It addresses common braking issues such as rotor warping, uneven wear, and overheating.

Common Issues Addressed by This Rotor

• Brake rotor warping due to heat buildup
• Uneven rotor wear causing brake pulsation
• Reduced braking efficiency from worn or thin rotors
• Excessive brake noise from damaged rotors
• Overheating during extended braking periods

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 0.866 inches before installation. Clean the rotor surface to remove any protective coatings or debris. Verify the mounting bolt hole pattern matches the vehicle’s hub (5 holes on a 100 mm bolt circle). Use proper torque specifications for mounting bolts to avoid rotor distortion. It is recommended to replace brake pads simultaneously to ensure optimal braking performance.

Quality Assurance and Warranty

Raybestos Specialty - Street Performance rotors are manufactured to meet or exceed OEM specifications for fit, form, and function. The vented rotor design supports consistent braking performance and durability. While specific warranty details are not provided here, Raybestos products typically come with a limited warranty against defects in materials and workmanship. Consult product documentation or Raybestos directly for warranty terms related to part number 980141.
