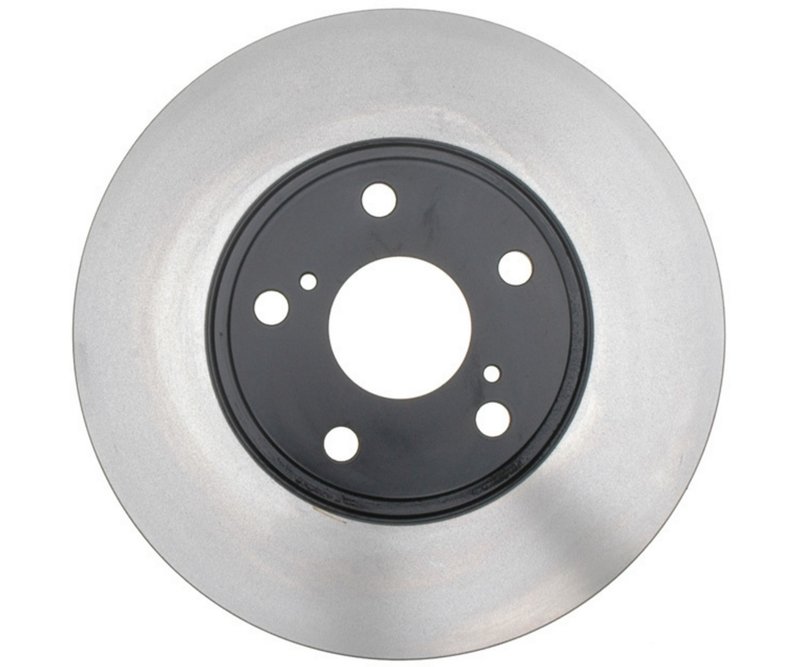

Raybestos 980159 Disc Brake Rotor - Front

Reliable Disc Brake Rotor for Toyota Highlander

The Raybestos Specialty - Truck disc brake rotor 980159 is engineered to meet the braking demands of Toyota Highlander vehicles. Designed with precision, this vented rotor ensures consistent performance and durability under various driving conditions.

• Compatible with Toyota Highlander models
• Vented disc brake rotor for improved heat dissipation
• Nominal thickness: 1.102 inches (28.000 mm)
• Discard thickness: 1.024 inches (26.000 mm)
• Outside diameter: 11.650 inches (295.900 mm)
• Overall height: 1.935 inches (49.150 mm)
• Mounting bolt hole quantity: 5 with 0.566 inch (14.400 mm) diameter
• Center hole diameter: 2.443 inches (62.050 mm)
• Conventional rotor type with drum-in-hat design

Product Line: Raybestos Specialty - Truck

The Specialty - Truck line by Raybestos focuses on heavy-duty and specialty brake components designed for truck and SUV applications. This product line emphasizes durability and performance under demanding conditions, making it suitable for vehicles like the Toyota Highlander that require reliable braking components for both daily driving and heavier loads.

Technical Details and Features

This Raybestos disc brake rotor 980159 features a vented design that enhances heat dissipation, reducing the risk of brake fade during extended use. The rotor’s nominal thickness of 1.102 inches (28.000 mm) ensures structural integrity, while the discard thickness of 1.024 inches (26.000 mm) indicates the minimum safe thickness for replacement. The rotor measures 11.650 inches (295.900 mm) in outside diameter and has an overall height of 1.935 inches (49.150 mm), fitting precisely on the Toyota Highlander’s brake assembly. The 5 mounting bolt holes and 5 stud/lug holes with a 114.300 mm (4.500 inch) bolt circle diameter provide secure installation.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Toyota Highlander
• Addresses brake noise and vibration issues caused by uneven rotor surfaces
• Improves braking performance by restoring proper rotor thickness
• Prevents brake fade during heavy braking or towing
• Suitable for vehicles requiring vented rotors for heat management

Installation Notes and Tips

Ensure the rotor surface is clean and free of rust or debris before installation. Verify the rotor thickness is above the discard thickness specification of 1.024 inches (26.000 mm) to maintain safety. Use proper torque specifications for the 5 mounting bolts to avoid warping. It is recommended to replace brake pads simultaneously to ensure optimal braking performance.

Quality Assurance and Warranty

Raybestos disc brake rotor 980159 is manufactured to meet OEM standards for fit and function on Toyota Highlander models. The Specialty - Truck product line undergoes rigorous quality control to ensure durability and consistent braking performance. Warranty details are provided by Raybestos and typically cover defects in material and workmanship under normal use.
