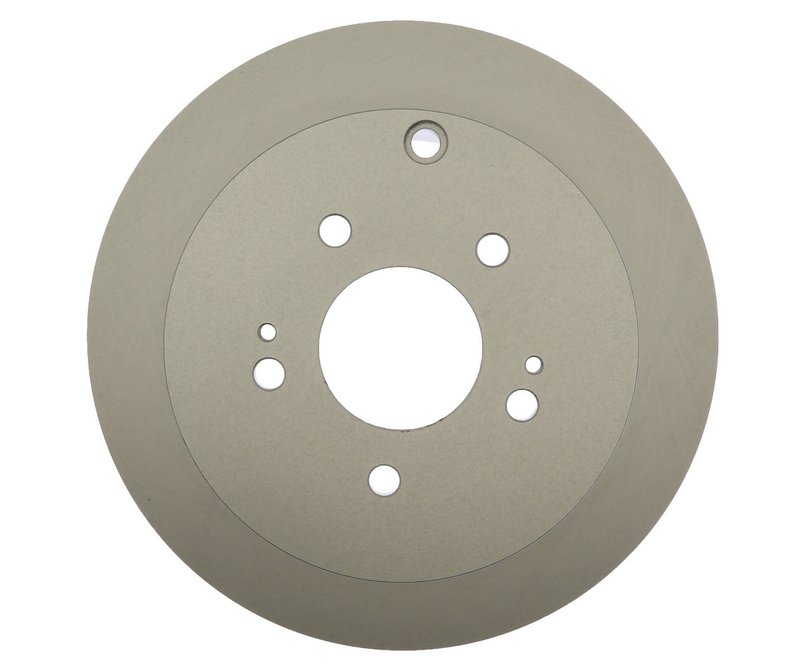

Raybestos 980187FZN Disc Brake Rotor - Rear

Overview of Raybestos Element3 Coated Rotor 980187FZN

The Raybestos Element3; Coated Rotor 980187FZN is engineered for reliable braking performance on Mitsubishi Endeavor and Grandis models. This vented disc brake rotor features a drum-in-hat design, providing efficient heat dissipation and compatibility with specific Mitsubishi vehicles.

• Compatible with Mitsubishi Endeavor and Grandis
• Vented disc brake rotor with drum-in-hat design
• Outside diameter: 11.890 inches (302.000 mm)
• Nominal thickness: 0.394 inches (10.000 mm)
• Discard thickness: 0.331 inches (8.400 mm)
• Overall height: 2.315 inches (58.800 mm)
• Mounting bolt hole quantity: 5 with 114.3 mm bolt circle diameter
• Center hole diameter: 2.717 inches (69.000 mm)

Detailed Product Specifications

This Raybestos disc brake rotor, part number 980187FZN, is designed with precision to meet the braking requirements of Mitsubishi Endeavor and Grandis vehicles. The rotor’s vented construction improves heat dissipation during braking, reducing the risk of brake fade under demanding conditions. The drum-in-hat type rotor integrates a parking brake drum, combining two functions into one component for efficient use of space and performance.

With an outside diameter of 11.890 inches and a nominal thickness of 0.394 inches, this rotor maintains structural integrity and consistent braking surface. The discard thickness of 0.331 inches indicates the minimum safe thickness before replacement is necessary, ensuring safety and performance standards are met. The rotor features five mounting bolt holes arranged on a 114.3 mm bolt circle diameter, matching the factory specifications for the Mitsubishi models listed.

Raybestos Element3; Coated Rotor Product Line

The Element3; Coated Rotor line by Raybestos focuses on corrosion resistance and durability. The coating applied to this rotor helps protect against rust and environmental wear, extending the service life of the rotor. This product line is designed to provide consistent braking performance while reducing maintenance needs, making it suitable for daily driving conditions on Mitsubishi Endeavor and Grandis vehicles.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Mitsubishi Endeavor and Grandis
• Addresses brake noise and vibration issues caused by uneven rotor surfaces
• Improves heat dissipation to reduce brake fade during extended braking
• Restores proper parking brake function with integrated drum-in-hat design
• Prevents premature rotor corrosion with protective coating

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness (0.331 inches) before installation
• Verify compatibility with Mitsubishi Endeavor or Grandis models using part number 980187FZN
• Clean mounting surfaces and check bolt hole alignment for proper fit
• Torque mounting bolts to manufacturer specifications to avoid rotor warping
• Inspect brake pads and hardware during rotor replacement for optimal performance

Quality Assurance and Warranty

Raybestos disc brake rotors, including the Element3; Coated Rotor 980187FZN, are manufactured to meet or exceed OEM standards. The protective coating enhances corrosion resistance, contributing to long-term durability. While specific warranty details are not provided here, Raybestos products typically come with a limited warranty against defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
