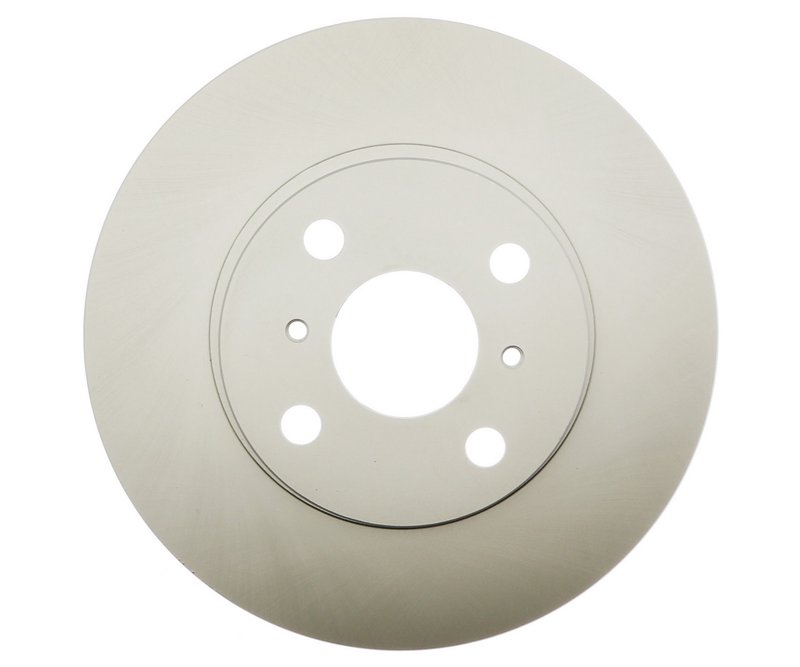

Raybestos 980201FZN Disc Brake Rotor - Front

Reliable Disc Brake Rotor for Scion xA and xB Models

The Raybestos Element3; Coated Rotor 980201FZN is engineered to provide consistent braking performance for Scion xA and xB vehicles. Designed as a solid disc brake rotor, it meets precise specifications to ensure proper fit and function.

• Compatible with Scion xA and xB models
• Part number 980201FZN for accurate identification
• Solid rotor design with 4 mounting bolt holes
• Nominal thickness of 0.865 inches (21.950 mm)
• Discard thickness at 0.787 inches (20.000 mm)
• Overall height of 1.695 inches (43.050 mm)
• Outside diameter of 10.040 inches (255.000 mm)
• Center hole diameter of 2.168 inches (55.050 mm)
• Mounting bolt hole circle diameter of 100.000 mm (3.937 inches)
• Mounting bolt hole diameter of 0.573 inches (14.550 mm)

About the Raybestos Element3; Coated Rotor Line

The Element3; Coated Rotor line from Raybestos focuses on providing rotors with a protective coating to resist corrosion and extend service life. This coating helps maintain rotor integrity and appearance over time, which is particularly beneficial for vehicles like the Scion xA and xB that may encounter varied driving conditions. The 980201FZN rotor combines this coating with precise manufacturing tolerances to ensure reliable braking performance.

Technical Details and Specifications

This disc brake rotor is a solid type, designed for conventional mounting on Scion xA and xB models. It features four mounting bolt holes and four stud/lug holes, ensuring secure attachment. The nominal thickness of 0.865 inches (21.950 mm) provides sufficient material for effective braking, while the discard thickness of 0.787 inches (20.000 mm) indicates the minimum safe thickness before replacement is necessary. The rotor's outside diameter measures 10.040 inches (255.000 mm), and the overall height is 1.695 inches (43.050 mm), matching factory specifications for proper fitment and clearance.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Scion xA and xB
• Addresses brake pulsation and vibration issues
• Restores braking efficiency and pedal feel
• Prevents corrosion-related rotor damage with coated surface
• Ensures proper rotor thickness for safe braking performance

Installation Notes and Tips

When installing the Raybestos 980201FZN rotor, ensure the mounting surface is clean and free of debris. Verify that the rotor thickness meets or exceeds the discard thickness specification before installation. Use proper torque settings on the mounting bolts to avoid rotor warping. It is recommended to replace brake pads simultaneously to maintain optimal braking performance. Always follow vehicle manufacturer guidelines for brake system maintenance.

Quality Assurance and Warranty

Raybestos disc brake rotors undergo rigorous quality control to meet industry standards for durability and performance. The Element3; Coated Rotor line includes a protective coating to resist rust and corrosion, contributing to longer rotor life. Warranty coverage details should be confirmed with the product documentation or authorized Raybestos distributors.
