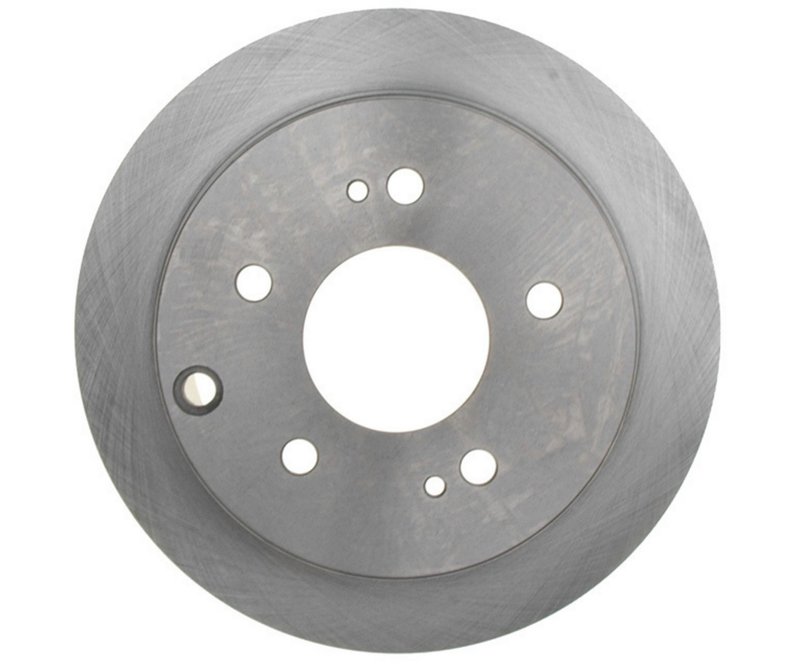

Raybestos 980208R Disc Brake Rotor - Rear

Overview of Raybestos R-Line Disc Brake Rotor 980208R

The Raybestos R-Line Disc Brake Rotor 980208R is engineered for reliable braking performance on Mitsubishi Eclipse and Galant models. This vented, drum-in-hat type rotor is designed to meet specific fitment requirements, ensuring compatibility and optimal function.

• Compatible with Mitsubishi Eclipse and Galant vehicles
• Vented disc brake rotor with drum-in-hat design
• Outside diameter: 10.315 inches (262.000 mm)
• Nominal thickness: 0.394 inches (10.000 mm)
• Discard thickness: 0.331 inches (8.400 mm)
• Overall height: 2.365 inches (60.050 mm)
• Mounting bolt hole quantity: 5 with 114.3 mm bolt circle diameter
• Center hole diameter: 2.717 inches (69.000 mm)

Detailed Product Specifications

The Raybestos R-Line 980208R rotor features a vented design that helps dissipate heat more effectively during braking, reducing the risk of brake fade. Its drum-in-hat configuration integrates a parking brake drum within the rotor, providing a compact and efficient solution for vehicles equipped with rear drum parking brakes. The rotor measures 10.315 inches in outside diameter and has a nominal thickness of 0.394 inches, with a discard thickness of 0.331 inches, indicating when replacement is necessary to maintain safe braking performance. The overall height of 2.365 inches ensures proper fitment within the brake assembly. The rotor mounts using five bolt holes arranged on a 114.3 mm bolt circle diameter, matching the factory specifications for Mitsubishi Eclipse and Galant models.

R-Line Product Line Information

The Raybestos R-Line product line focuses on delivering reliable, OE-quality brake components designed to meet or exceed original equipment specifications. The R-Line rotors, including the 980208R, are engineered for consistent performance and durability, making them suitable for daily driving conditions on compatible Mitsubishi vehicles.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Mitsubishi Eclipse and Galant
• Addresses brake pulsation caused by uneven rotor thickness
• Resolves excessive brake noise due to rotor surface irregularities
• Improves heat dissipation to reduce brake fade during extended use
• Restores proper parking brake function with integrated drum-in-hat design

Installation Notes and Tips

Ensure the rotor surface is clean and free of rust or debris before installation. Verify the rotor thickness is above the discard thickness of 0.331 inches to maintain safety standards. Use proper torque specifications for the five mounting bolts on the 114.3 mm bolt circle. It is recommended to replace brake pads simultaneously to ensure even wear and optimal braking performance. Check for any signs of hub or bearing wear during installation to avoid premature rotor damage.

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet strict quality control standards, ensuring consistent dimensions and material integrity. While specific warranty details for part number 980208R may vary, Raybestos typically offers limited warranties covering defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms related to this rotor.
