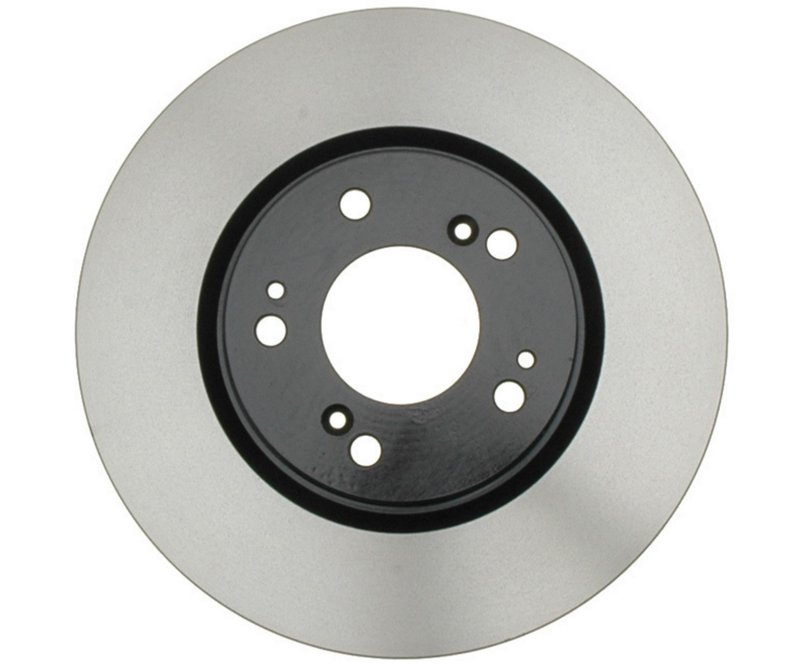

Raybestos 980209 Disc Brake Rotor - Front

Overview of Raybestos Specialty - Street Performance Rotor

The Raybestos Specialty - Street Performance disc brake rotor, part number 980209, is engineered for Mitsubishi Galant models requiring reliable braking performance. This solid rotor is designed to meet the demands of street driving while maintaining consistent stopping power and durability.

• Compatible with Mitsubishi Galant vehicles
• Solid disc brake rotor design for consistent braking
• Overall diameter of 11.580 inches (294.150 mm)
• Nominal thickness of 1.025 inches (26.050 mm) with discard thickness at 0.961 inches (24.400 mm)
• Five mounting bolt holes with a 4.500 inch (114.300 mm) bolt circle diameter
• Center hole diameter of 2.718 inches (69.050 mm)
• Conventional rotor type with 5 stud/lug holes

Detailed Product Description

This Raybestos disc brake rotor (part number 980209) is a solid, conventional rotor designed specifically for Mitsubishi Galant models. The rotor features an overall height of 1.790 inches (45.450 mm) and a precise outside diameter of 11.580 inches (294.150 mm), ensuring proper fitment and optimal contact with brake pads. The nominal thickness of 1.025 inches (26.050 mm) provides a durable braking surface, while the discard thickness of 0.961 inches (24.400 mm) indicates when the rotor should be replaced to maintain safe braking performance. The rotor includes five mounting bolt holes with a 0.495 inch (12.550 mm) diameter, arranged on a 4.500 inch (114.300 mm) bolt circle diameter, matching the Mitsubishi Galant’s hub specifications.

The rotor’s solid design supports consistent heat dissipation during street driving conditions, reducing the risk of warping and brake fade. The center hole diameter of 2.718 inches (69.050 mm) ensures proper alignment on the vehicle hub, contributing to smooth and stable braking operation.

Specialty - Street Performance Product Line

The Raybestos Specialty - Street Performance line focuses on delivering rotors engineered for street use with an emphasis on durability and consistent braking response. This product line is tailored for drivers who require dependable performance under normal to moderately demanding driving conditions. The 980209 rotor exemplifies this approach by combining solid rotor construction with precise fitment specifications for the Mitsubishi Galant.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Mitsubishi Galant models
• Addressing brake pulsation caused by uneven rotor surfaces
• Restoring braking efficiency after rotor thickness falls below discard limits
• Improving brake pad contact and reducing noise from rotor irregularities
• Ensuring proper fitment with factory bolt pattern and hub dimensions

Installation Notes and Tips

• Verify rotor dimensions against vehicle specifications before installation
• Ensure mounting surfaces and hub are clean and free of debris
• Torque mounting bolts to manufacturer-recommended specifications
• Inspect brake pads for wear and replace if necessary during rotor installation
• Perform a brake system test after installation to confirm proper operation

Quality Assurance and Warranty

Raybestos rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The Specialty - Street Performance rotors undergo rigorous quality control to ensure consistent thickness and dimensional accuracy. While specific warranty details for part number 980209 should be confirmed with the supplier, Raybestos typically offers limited warranties covering defects in materials and workmanship.
