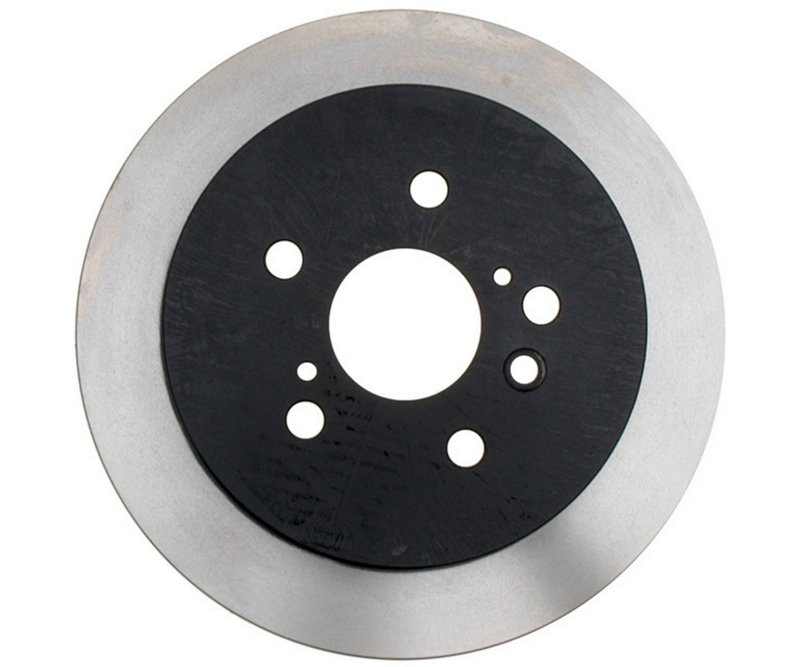

Raybestos 980213 Disc Brake Rotor - Rear

Overview of Raybestos Specialty - Truck Disc Brake Rotor 980213

The Raybestos Specialty - Truck disc brake rotor 980213 is engineered for reliable braking performance on Toyota Sienna vehicles. Designed as a solid, drum-in-hat type rotor, it meets specific thickness and dimension requirements to ensure proper fit and function.

• Compatible with Toyota Sienna models
• Part number 980213 for precise identification
• Solid disc brake rotor with drum-in-hat design
• Overall height: 2.695 inches (68.450 mm)
• Outside diameter: 11.455 inches (290.950 mm)
• Mounting bolt hole quantity: 5 with 4.500 inch (114.300 mm) bolt circle diameter
• Center hole diameter: 2.443 inches (62.050 mm)
• Nominal thickness: 0.472 inches (12.000 mm)
• Discard thickness: 0.413 inches (10.500 mm)

Detailed Product Description and Specifications

This Raybestos disc brake rotor, part number 980213, is designed specifically for Toyota Sienna vehicles requiring a solid rotor with a drum-in-hat configuration. The rotor features a nominal thickness of 0.472 inches (12.000 mm) and a discard thickness of 0.413 inches (10.500 mm), ensuring safe replacement intervals. Its overall height measures 2.695 inches (68.450 mm), and the outside diameter is 11.455 inches (290.950 mm), matching factory specifications for proper fitment. The rotor includes five mounting bolt holes arranged on a 4.500 inch (114.300 mm) bolt circle diameter, with a center hole diameter of 2.443 inches (62.050 mm), facilitating secure installation on the vehicle hub.

About the Raybestos Specialty - Truck Product Line

The Specialty - Truck line by Raybestos focuses on heavy-duty and truck-specific braking components designed to meet the demands of larger vehicles and commercial applications. This product line emphasizes durability and precise fitment, making it suitable for vehicles like the Toyota Sienna that require robust braking solutions. The 980213 rotor exemplifies this approach by combining solid rotor construction with a drum-in-hat design to accommodate integrated parking brake systems.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Toyota Sienna
• Addresses brake pulsation caused by uneven rotor thickness
• Resolves noise issues related to rotor surface irregularities
• Restores braking efficiency and pedal feel
• Supports parking brake function with drum-in-hat design

Installation Notes and Tips

When installing the Raybestos 980213 rotor, ensure the mounting surface is clean and free of debris to prevent rotor runout. Verify that the rotor thickness is above the discard thickness of 0.413 inches (10.500 mm) before installation. Use proper torque specifications on the five mounting bolts arranged on the 4.500 inch (114.300 mm) bolt circle diameter. The drum-in-hat design requires alignment with the integrated parking brake assembly, so inspect related components during installation.

Quality Assurance and Warranty

Raybestos manufactures the 980213 rotor to meet or exceed OEM standards for fit, form, and function. The Specialty - Truck line undergoes rigorous quality control to ensure durability and consistent performance. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
